Description

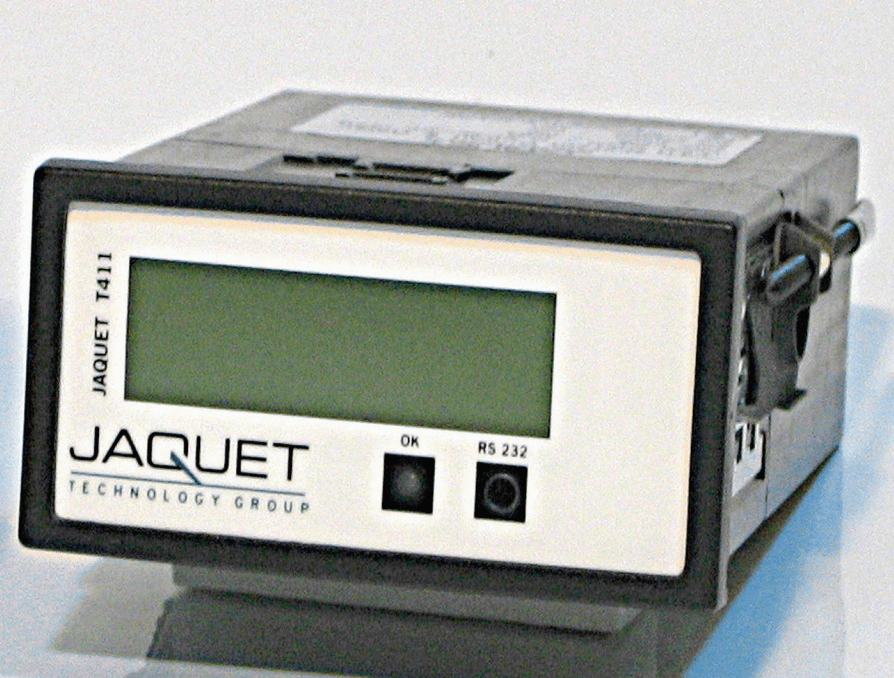

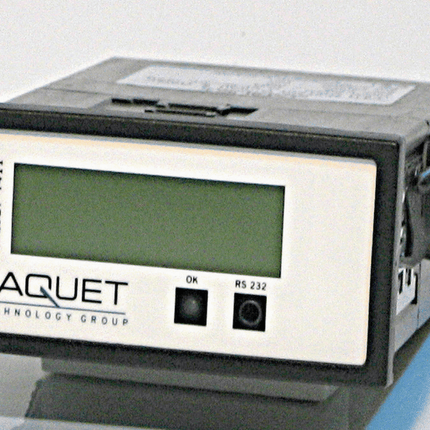

JAQUET T411 Tachometer, Display; 4..20 mA output
MPN = 383Z-05318
Lead time can be 50-70 weeks currently
Item is temporarily not available before Q3/2024
Jaquet T411.00 · 383Z-05318
· single-channel speed transmitter with display
· 0-35 kHz
· speed signal to relay, open collector and analogue output
· suitable for active and passive sensors
Jaquet T411 is a Single Channel Tachometer speed switch with a display which converts absolute speed into an analogue signal.
This unit will measure from 0-1 Hz all the way and up to 35 kHz. T411 gives a 4-20 DCmA output, which can be configured with the included Windows software package. Jaquet T411 features a single changeover relay and includes 2 limits (A/B) with programmable hysteresis. The T411's adaptive trigger provides high noise immunity, giving a fast response to over-speed conditions.
Features of T411
T411.00 = Tachometer Only w/4-20 DCmA Output and 1 Relay
Converts absolute speed into an analogue signal
10-30 DCV Power Supply
Includes 2 limits (A/B) with programmable hysteresis
Isolated signal input with automatic trigger level adjustment
Built-in isolated sensor supply with sensor monitoring
Open collector output of sensor frequency
Pluggable terminals
Configuration and status via included Windows software
Accuracy class 0.05% for limits & 0.5% for analog signals
Advantages of T411
Fast response to over-speed conditions
Germanischer Lloyd’s and ABS approval for marine applications
0/4…20 mA or 0/2…10 V analogue output with rising or falling characteristics
Adaptive trigger provides high noise immunity e.g. with electromagnetic sensors
Digital input for direct treatment of frequency signals
2 possible relay configuration sets (e.g. for start-up bridging, controlled via binary inputs)
Pluggable terminals
Integrated 2 or 3 wire sensor monitoring and system watchdog
