Description

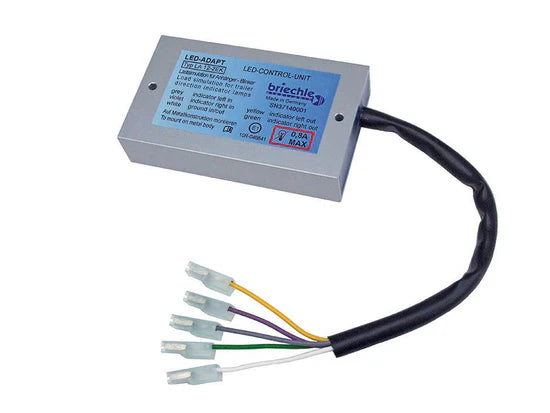

12 Volt resistor replacement load for the adaptation of light-emitting diode (LED) trailer lamps at vehicles with incandescent lamp monitoring. The failure of direction indicators is indicated.
***CAUTION***
LED-ADAPT must be mounted on a metal surface. The connection of any bulb on the direction indicator output is prohibited. The overcurrent protection may cut off not until after several minutes!
▪ Operating voltage: 12V nominal
▪ as ballast for LED direction indicators
▪ operates right and left turn signals
- Single cable version
- LED direction indicator monitoring
- Serves the direction indicators with replacement resistors
- Conditionally short circuit proof (about 100 cycles)
| Operation voltage: |
12V nominal |
| Output current: |
max. 0.4A (direction) (Over current protection time delay 1...2000s!) |
| Connection: |
Hose line 5x1mm², ins. 6.3mm blade receptacle |
| Load imitation: |
2x17W (direction) |
| Cable length: |
0.25 m |
| Temperature range: |
-40...+75°C |
| Electrical protection: |
Overcurrent, overtemperature, reverse polarity |
| Mechanical protection: |
Entirely sealed (IP69K) |
| Dimensions: |
120 x 70 x 25mm |
| Mass: |
app. 350g |
| Failure monitor LEDs: |
20mA (direction) |
| Mounting rule: |
Cooling plate 8dm² (aluminum sheet 1.5mm thickness) or on chassis frame |
