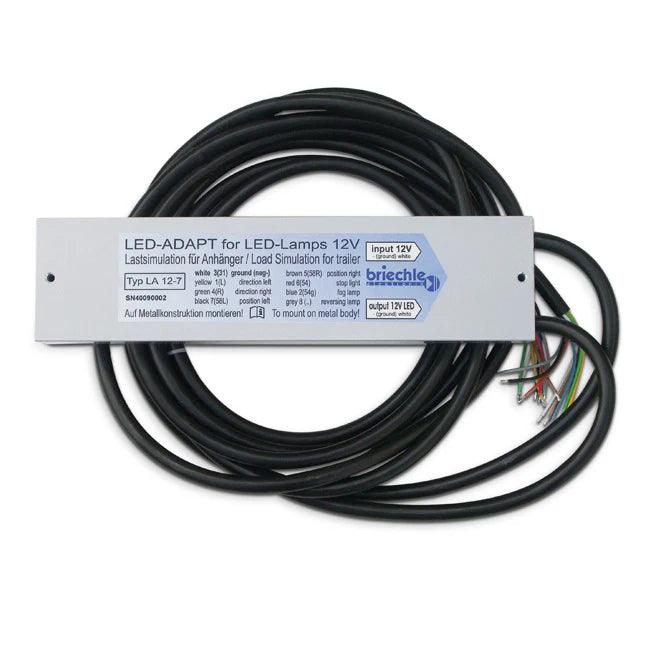

Name: Led Adapter LA 12-7
Brand: Briechle Elektronik
SKU: 130-LA 12-7
Price: 225.0 EUR

Led Adapter LA 12-7

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Led Adapter LA 12-7

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

12 Volt resistor replacement load for the adaptation of light-emitting diode (LED) trailer lamps at vehicles with incandescent lamp monitoring.... Read more

€225,00 Excl. VAT

Guaranteed secure & safe checkout.

Shipped today? Order within: Jun 06, 2026 12:00:00 +0300

Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP

30 days hassle-free returns

Flexible payments

Easily pay with multiple payment options.
Read more

Description

12 Volt resistor replacement load for the adaptation of light-emitting diode (LED) trailer lamps at vehicles with incandescent lamp monitoring. The failure of a LED unit is indicated and the replacement load is turned off. LED-ADAPT must be mounted on a metal surface.

***CAUTION***
The connection of any bulb on the output is prohibited. The overcurrent protection may cut off not until after several minutes!

▪ Operating voltage: 12V nominal
▪ Input: open cable end
▪ Output: open cable end

Weight: 1.68 kg

Simply connect ahead of LED lamps
LED failure is indicated
The short circuit is indicated
Serves all lines with replacement resistors
Input cable 3,5m can be connected directly to the plug

Operation voltage:	12V nominal
Output current:	0.8A (Over current protection time delay 1...2000s !)
Connection input:	Sheathed cable 8x1mm², bare endings
Connection output:	Sheathed cable 8x1mm², bare endings
Load imitation:	2x17 W (direction), 2x4W (rear lamp), 1x34W (stoplight) 1x17W (fog lamp), 1x17W (reversing lamp)
Cable length input:	app. 3,5m
Cable length output:	app. 1,2m
Temperature range:	-40...+75°C
Electrical protection:	Overcurrent, overtemperature, reverse polarity
Mechanical protection:	entirely sealed
Dimensions:	280 x 70 x 25mm without cable outlet
Mass:	app. 1680g
Failure monitor LEDs:	20mA (direction) 3mA (rear lamp) 8mA (stoplight) 8mA (fog lamp) 20mA (reversing lamp)
Mounting rule:	cooling plate 8dm² (aluminum sheet 1.5mm thickness) or on chassis frame

Specifications

Manuafacturer: Briechle Elektronik
Condition: New
