24 Volt resistor replacement load for the adaptation of light-emitting diode (LED) trailer lamps at vehicles with incandescent lamp monitoring.... Read more
€225,00 Excl. VAT
Guaranteed secure & safe checkout.
Easily pay with multiple payment options.
Read more

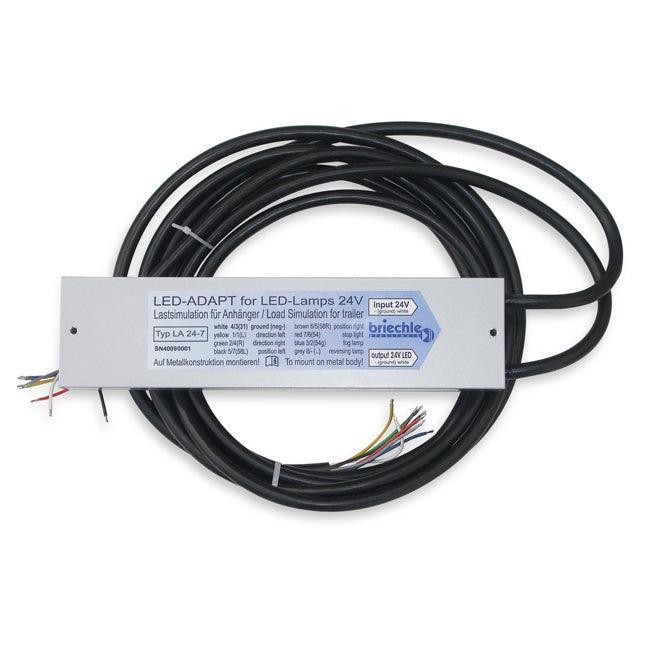

24 Volt resistor replacement load for the adaptation of light-emitting diode (LED) trailer lamps at vehicles with incandescent lamp monitoring. The failure of an LED unit is indicated and the replacement load is turned off. LED-ADAPT must be mounted on a metal surface.
***CAUTION***
The connection of any bulb on the output is prohibited. The overcurrent protection may cut off not until after several minutes!
▪ Operating voltage: 24V nominal
▪ Input: open cable end
▪ Output: open cable end
| Operation voltage: | 24V nominal |
| Output current: | 0.4A (Over current protection time delay 1...2000s !) |
| Connection input: | Sheathed cable 8x1mm², bare endings |
| Connection output: | Sheathed cable 8x1mm², bare endings |
| Load imitation: | 2x17 W (direction), 2x4W (rear lamp), 1x34W (stoplight) 1x17W (fog lamp), 1x17W (reversing lamp) |
| Cable length input: | app. 3,5m |
| Cable length output: | app. 1,2m |
| Temperature range: | -40...+75°C |
| Electrical protection: | Overcurrent, overtemperature, reverse polarity |
| Mechanical protection: | entirely sealed |
| Dimensions: | 280 x 70 x 25mm without cable outlet |
| Mass: | app. 1680g |
| Failure monitor LEDs: | 20mA (direction) 3mA (rear lamp) 8mA (stoplight) 8mA (fog lamp) 20mA (reversing lamp) |
| Mounting rule: | cooling plate 8dm² (aluminum sheet 1.5mm thickness) or on chassis frame |
