Description

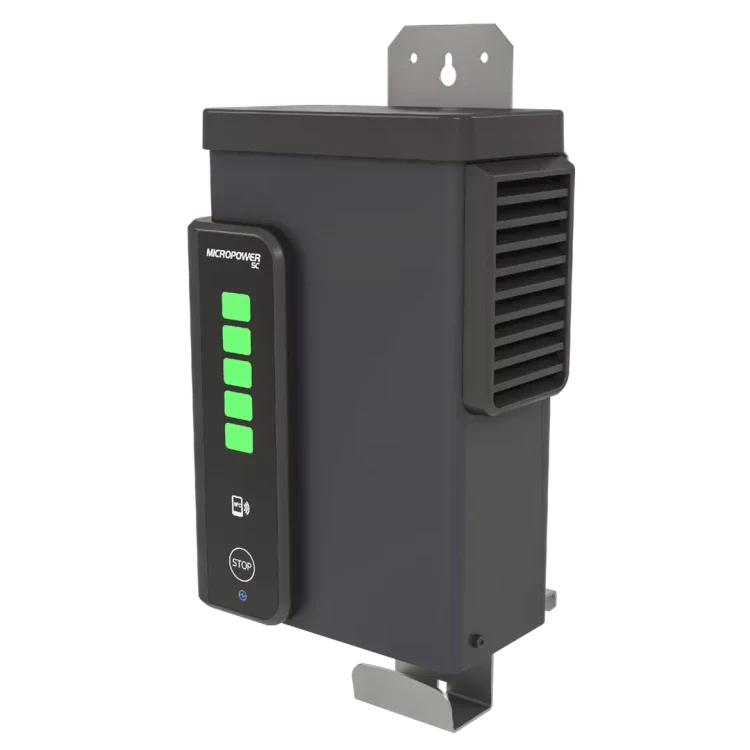

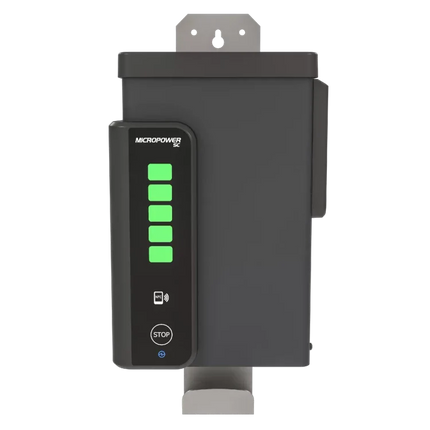

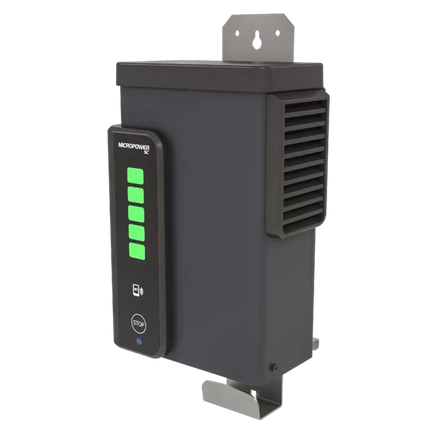

Micropower SC13 1300W Industrial Battery Charger 24V 45A – Lead-Acid, 220–240V AC
Single-phase high-efficiency charger for 24V industrial batteries
Nominal output: 24V DC / 45A (1300W)
Model code: 3AFD110
Manufacturer part number (family): VD2310
Configured part / PN: VD2310-A1T103-00
MPN (sales reference): OPA23604N
Input: 220–240V AC, 50–60Hz, single-phase
Datasheet – Micropower SC13 Pb 24V/45A
The Micropower SC13 1300W 24V/45A is a compact, convection-cooled industrial battery charger designed for professional charging of 24V lead-acid batteries. With a high efficiency of approx. 91% and power factor correction (PF ≈ 0.98), the SC13 combines robust construction with energy-efficient performance.
Typical applications include material handling equipment, cleaning machines, access platforms and other 24V battery-powered systems where reliable overnight or opportunity charging is essential. The charger is microprocessor controlled and uses factory-set charging curves optimised for lead-acid batteries.
Thanks to convection cooling and IP20 classification, the unit is well suited for indoor industrial environments such as workshops, depots and OEM installations.
Key features:
- 24V lead-acid battery charger with 45A rated output
- 1300W charging power for efficient, controlled charging
- Single-phase 220–240V AC input, 50–60Hz
- High efficiency design (≈ 91%) with power factor correction (PF ≈ 0.98)
- Convection cooled – no internal fan, quiet operation
- Factory-set lead-acid charging curves (Sets 10-04, 10-06, 10-18 & 20-09)
- Reverse polarity protection via fuse and short-circuit protection

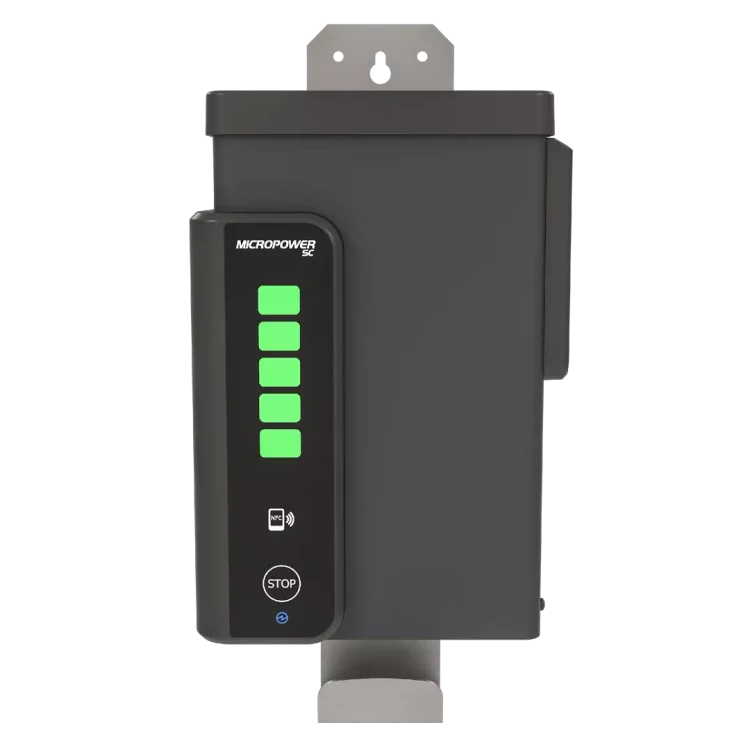

- LED status indication for user feedback

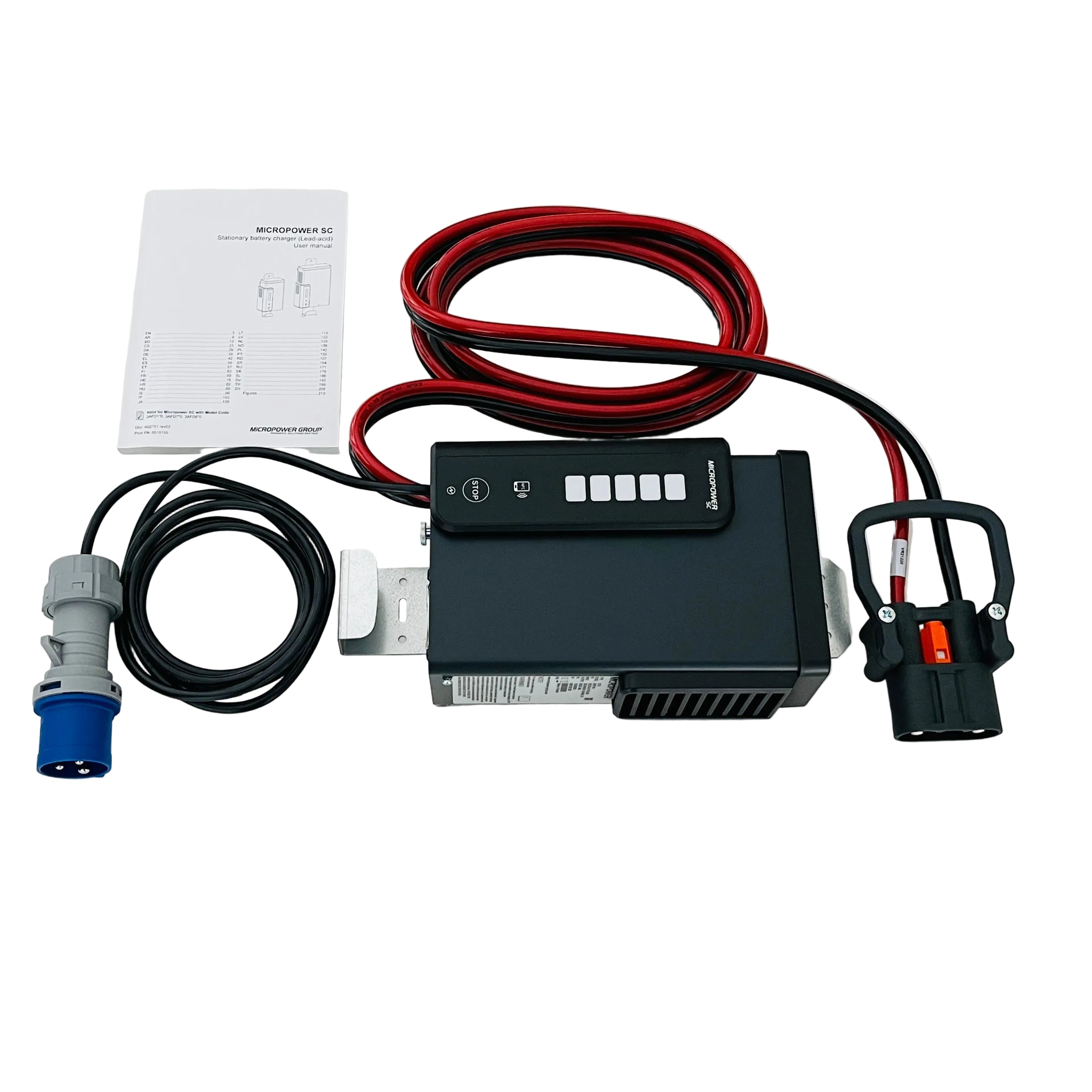

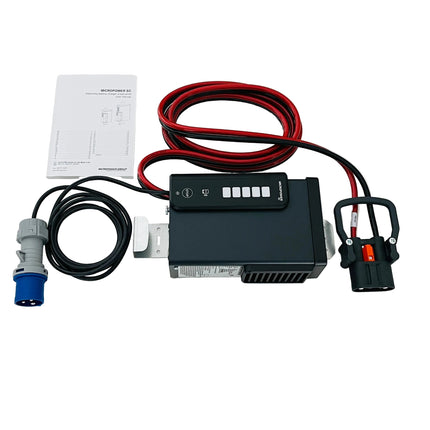

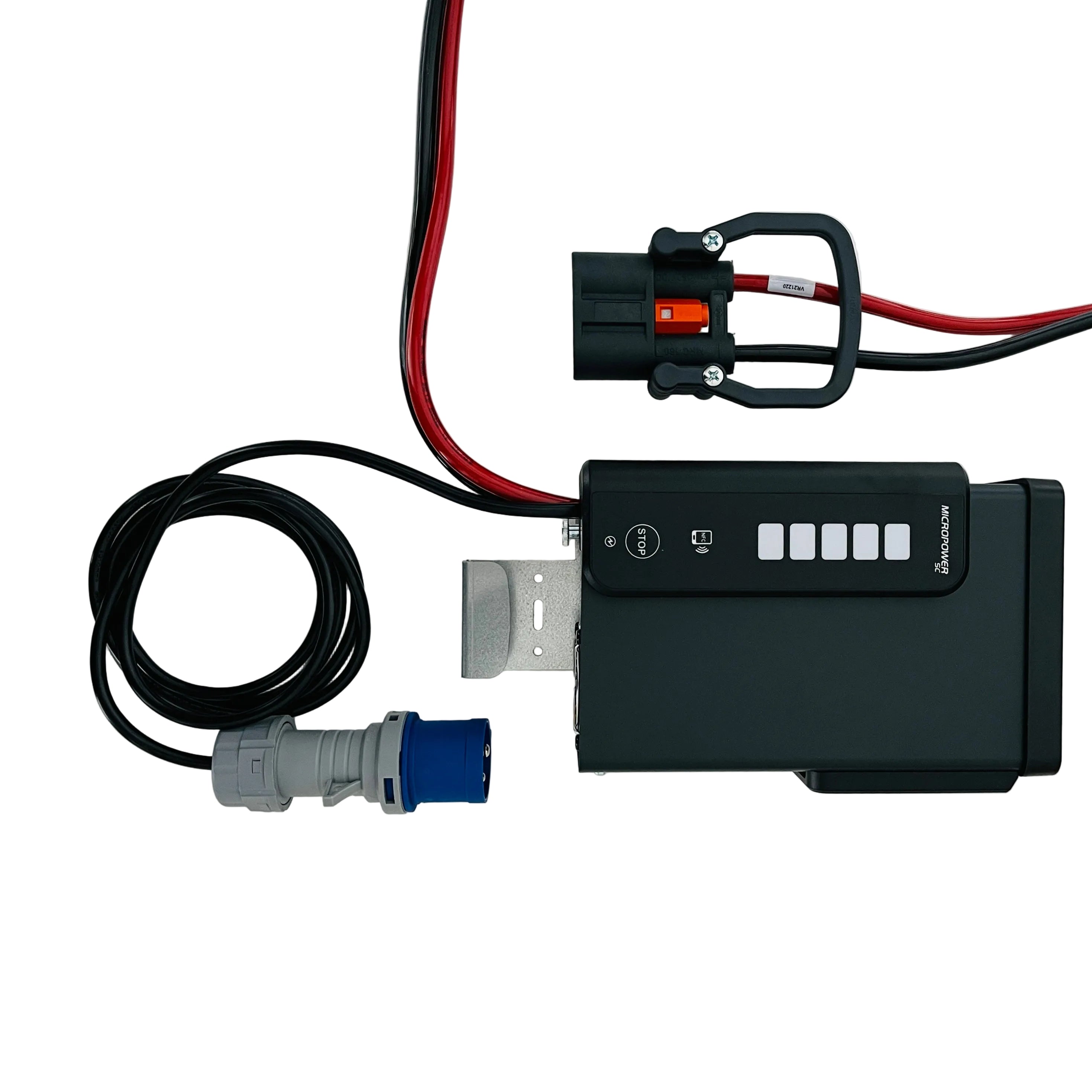

- Typical output interface: DIN80 connector with M6 terminals
- Designed for professional and OEM use in industrial environments
Technical Summary
-
Family: Micropower SC13 Pb 24V/45A
-
DC rating: 24V / 45A
-
Output power: 1300W
-
Number of phases: 1
-
Rated input voltage range: 220–240V AC
-
Nominal input voltage: 230V AC
-
Input frequency: 50–60Hz
-
Input current at nominal voltage: ~6.5A
-
Standby power consumption: < 5W
-
Power consumption (full load): ~1462W / 1492VA
-
Power factor: ≈ 0.98
-
Efficiency (at rated power, without cables): ≈ 91%
-
Battery type: Lead-acid
-
Output voltage (nominal): 24V DC
-
Output current (rated): 45A
-
Output cable cross-section: 10 mm²
-
Output cable length: approx. 3 m
-
Output connector: Typical DIN80, M6 terminals
-
Reverse polarity protection: Fuse
-
Short-circuit protection: Yes
-
Ingress protection: IP20
-
Cooling: Convection
-
Ambient temperature (full power): –5 to +40 °C
-
Ambient max (reduced power): up to +55 °C
-
Storage / transport temperature: –40 to +80 °C
-
Max operating altitude: 2000 m
-
Max humidity (non-condensing): 90 % RH
-
User interface: LED indicators
-
Certifications: CE
-
Charger dimensions (W x H x D): 333 x 150 x 103 mm
-
Charger weight (without cables): approx. 2 kg
-
Shipping box dimensions: 390 x 290 x 135 mm (approx. 39 x 29 x 13 cm)
-
Shipping weight: approx. 4–4.4 kg
-
HS tariff code: 85044055
A reliable 24V/45A industrial charger solution for lead-acid battery systems – ideal for OEM integration, service use and professional charging applications.
