Micropower PAP802 800W Adjustable DC Power Supply – 72V Nominal / 10A Rated (0–108V / 0–10A)
MPN: OE00110S
Series: PAP800 Platform
Model: PAP802 (Adjustable Version)
Manufacturer: Micropower
Product Overview

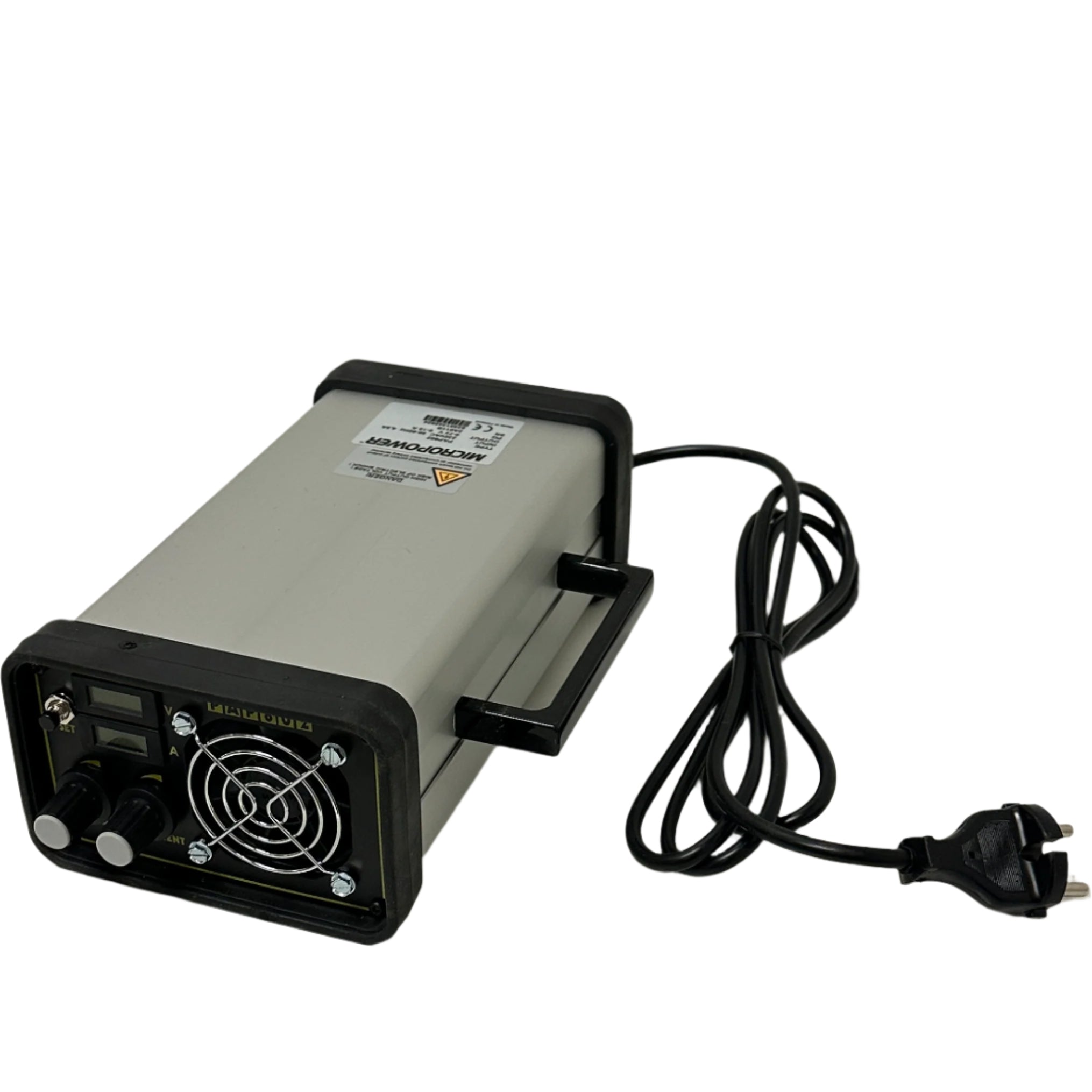

The Micropower PAP802 is the adjustable 800W model of the PAP800 high-performance power supply platform. It is designed for laboratory, industrial testing, battery service and R&D applications requiring stable and precisely controlled DC output.
This 72V nominal version delivers 10A at 72VDC, with continuously adjustable voltage and current via front-panel multi-turn precision potentiometers. Real-time digital voltage and current display ensures accurate monitoring.
Electrical Specifications (72V Model)
| Nominal Output Voltage |
72V DC |
| Nominal Output Current @ 72V |
10A |
| Voltage Adjustment Range |
0–108V DC |
| Current Adjustment Range |
0–10A |
| Maximum Output Power |
800W |
| Input Voltage |
55–250VAC (reduced power below 200VAC) |
| Efficiency |
85–90% typical |
| Power Factor |
> 0.98 |
800W Constant Power Characteristic
The PAP802 operates with a maximum total output power of 800W. This means:
- Full 10A is available at 72V.
- When increasing voltage toward 108V, available current decreases automatically.
- If current is set to 10A, maximum usable voltage is approximately 72V.
Key Features

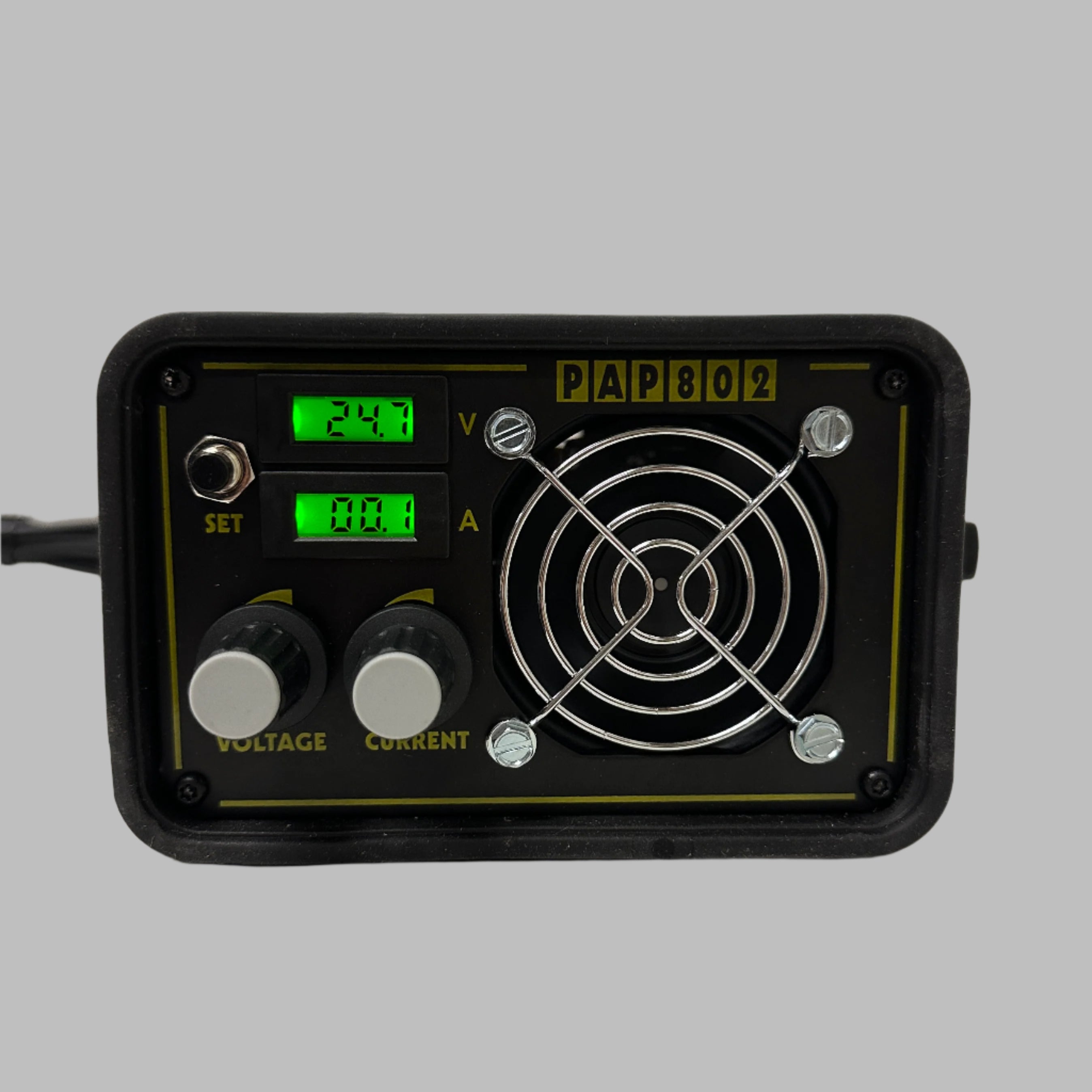

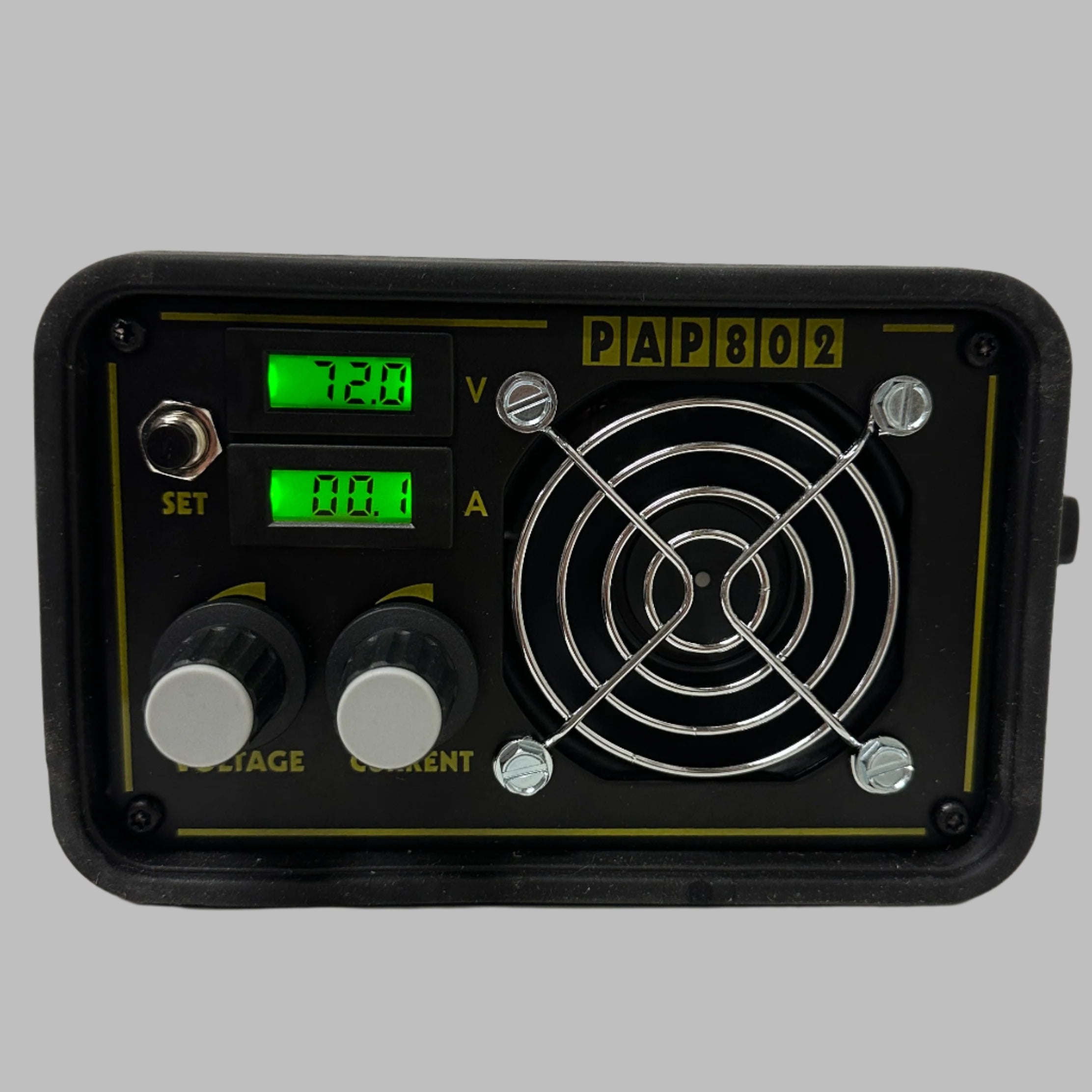

- Adjustable output via front-panel precision potentiometers
- Digital voltage and current display
- High-frequency switched-mode design
- Electronic short-circuit and overload protection
- Temperature-controlled cooling fan
- Parallel operation supported
- Series operation supported (up to 500V total)
- Optional 0–5V analog external control
Mechanical & Environmental
-
Dimensions: 220 × 112 × 73 mm
-
Weight: approx. 1.55 kg (excl. cables)
-
Enclosure: IP20 metal housing
-
Operating Temperature: 0°C to +45°C
-
Mounting: DIN-rail, wall or bench
Applications
- 72V battery systems and traction batteries
- EV service and commissioning
- Industrial DC system testing
- Laboratory and R&D use
- DC motor and inverter testing
Scope of Delivery
- Micropower PAP802 adjustable power supply (72V model)
- Standard output cables
- Manufacturer documentation
Technical data based on Micropower PAC/PAP800 series specification (800/72 model).
