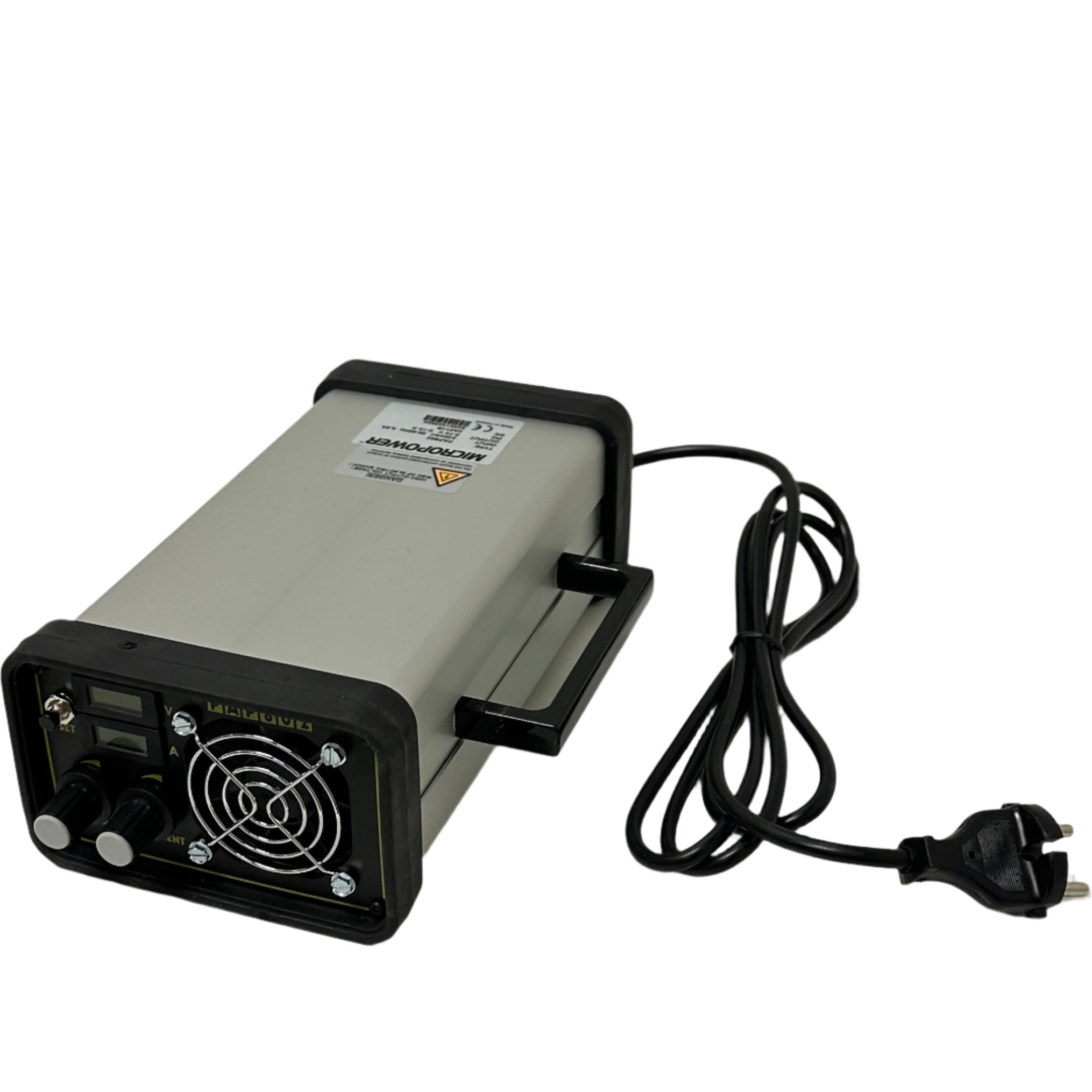

Micropower PAP802 800W Adjustable DC Power Supply – 48V Nominal / 15A Rated
MPN: OE00109P
Series: PAP800 revision PAP802
Manufacturer: Micropower Oy (Finland)
Product Overview
The Micropower PAP802 is a professional-grade 800W switched-mode DC power supply designed for laboratory, industrial testing, battery service and R&D applications.

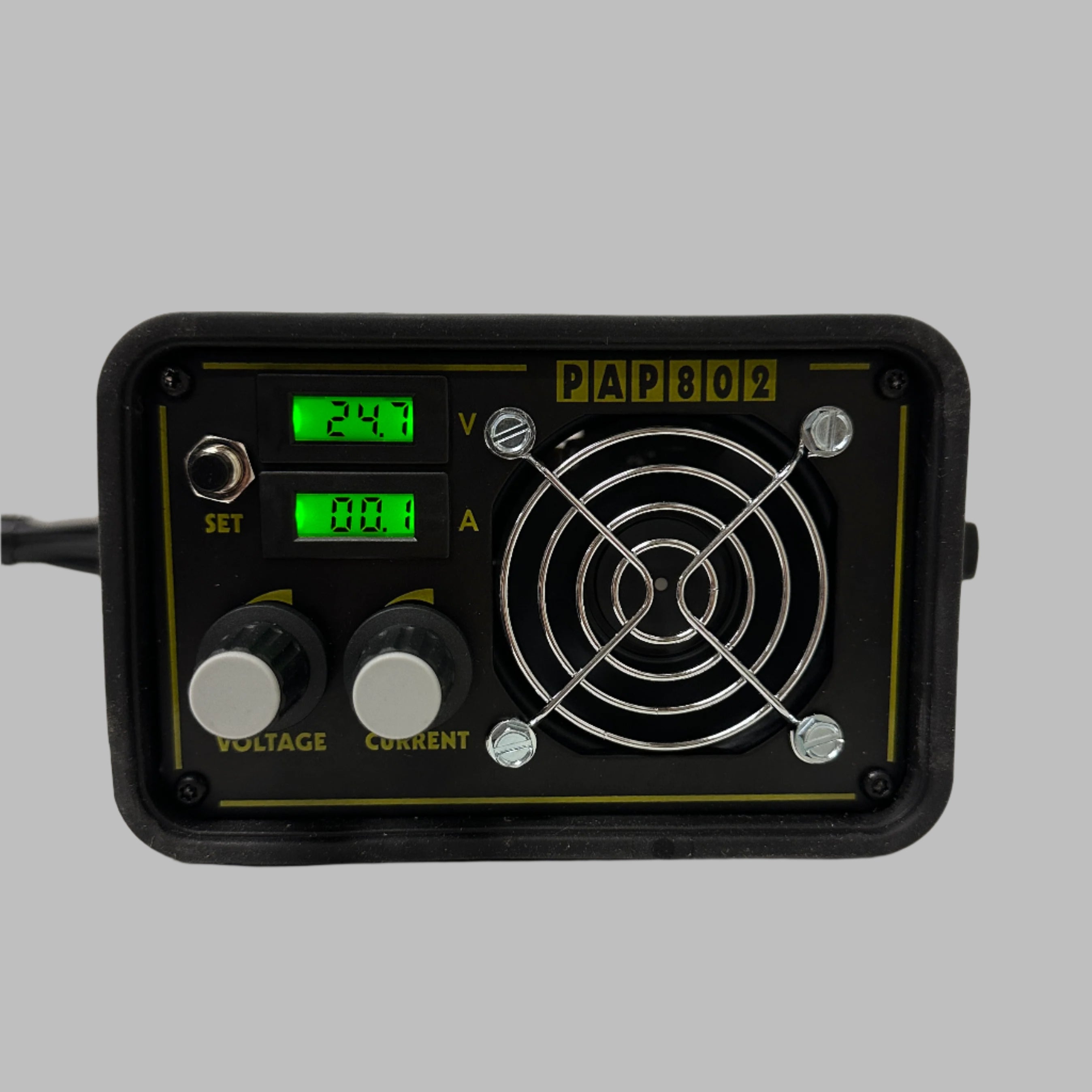

This version is based on a 48V nominal output system with a rated output current of 15A at 48VDC. Both output voltage and current are continuously adjustable via front panel multi-turn potentiometers, with real-time digital voltage and current display.
Electrical Characteristics (48V Model)
-
Nominal Output Voltage: 48V DC
-
Nominal Output Current @ 48V: 15A
-
Voltage Adjustment Range: 0–72V DC
-
Current Adjustment Range: 0–15A
-
Maximum Output Power: 800W
-
Input Voltage: 55–250VAC (reduced power below 200VAC)
-
Efficiency: 85–90% typical
-
Protection: Electronic current limiter, short-circuit protected
Understanding the Power Limitation (800W Max)
The PAP802 is power-limited to 800W maximum output. This defines how voltage and current behave across the adjustment range:
- At 48V DC → full 15A rated current is available.
- When increasing voltage above 48V toward 72V DC, the available current decreases automatically.

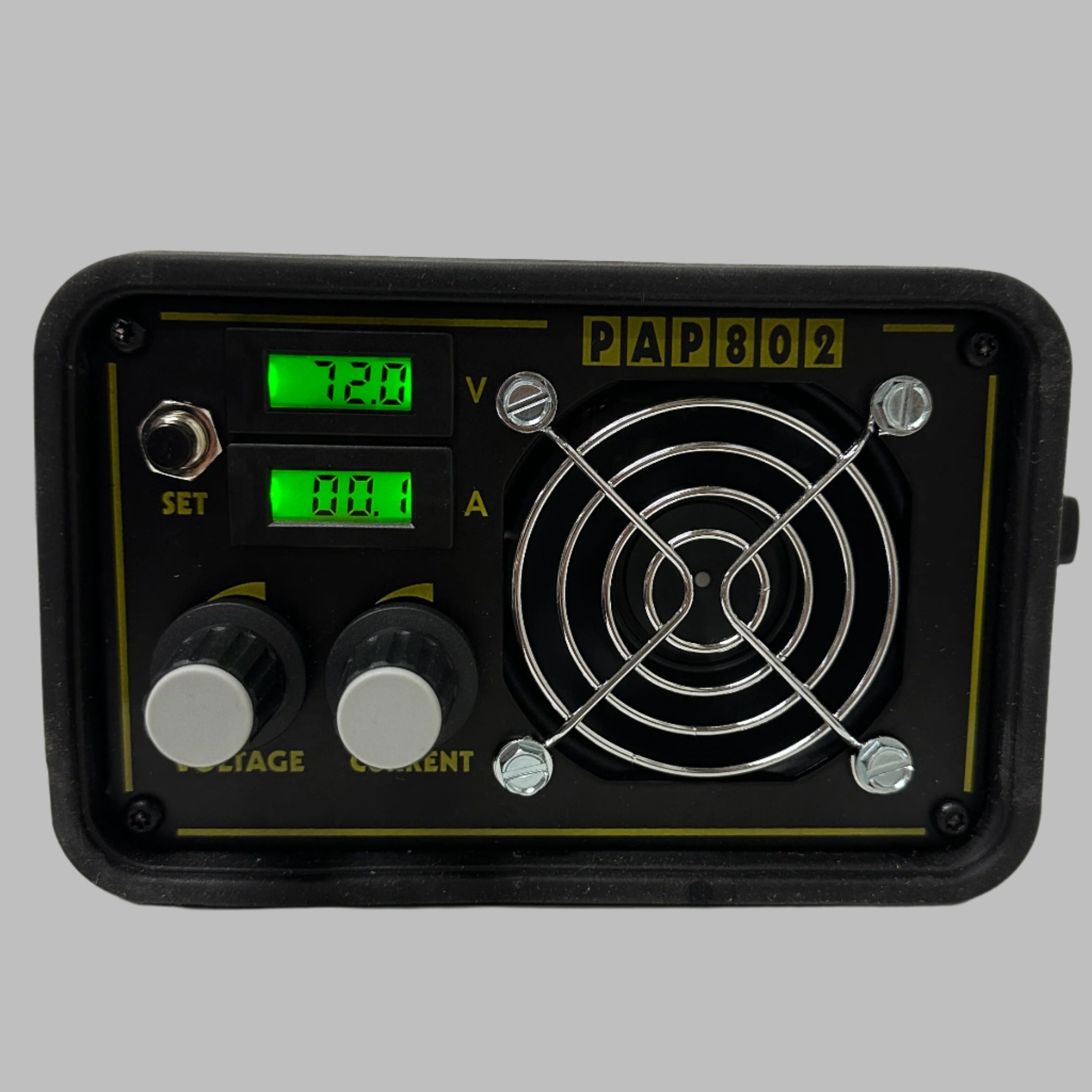

- At 72V DC, only a few amperes are available, since total output power cannot exceed 800W.
- If current is set to the maximum 15A, the usable voltage is limited to approximately 48V DC.
This constant-power characteristic is typical for high-efficiency industrial switched-mode power supplies and ensures stable and safe operation.
Key Features
- High-frequency switched-mode design
- Digital voltage & current display
- Multi-turn precision adjustment potentiometers
- Temperature-controlled cooling fan
- Short circuit and overload protection
- Can operate as constant voltage power supply or battery charger
- Parallel (master–slave) operation supported
- Optional analog 0–5V external control
Mechanical Specifications
-
Dimensions (W x H x D): 220 × 112 × 73 mm
-
Weight: approx. 1.55 kg (excl. cables)
-
Protection Class: IP20 metal enclosure
-
Cooling: Temperature-controlled fan
-
Operating Temperature: 0°C to +45°C
Applications
- 48V battery system testing and servicing
- Industrial DC system commissioning
- Laboratory testing
- Electronics development
- DC motor and inverter testing
- R&D environments
Installation Notes
For indoor use in dry, dust-free environments. Must be connected to a properly earthed AC supply. Leave minimum 10 cm free space at both ends for ventilation.
When used as a charger, ensure adequate ventilation. Lithium batteries must be used with a proper BMS (Battery Management System).
Scope of Delivery
- Micropower PAP802 Power Supply
- Standard output cables
- Manufacturer documentation
High-performance Finnish power electronics engineered for demanding industrial environments.
