Description

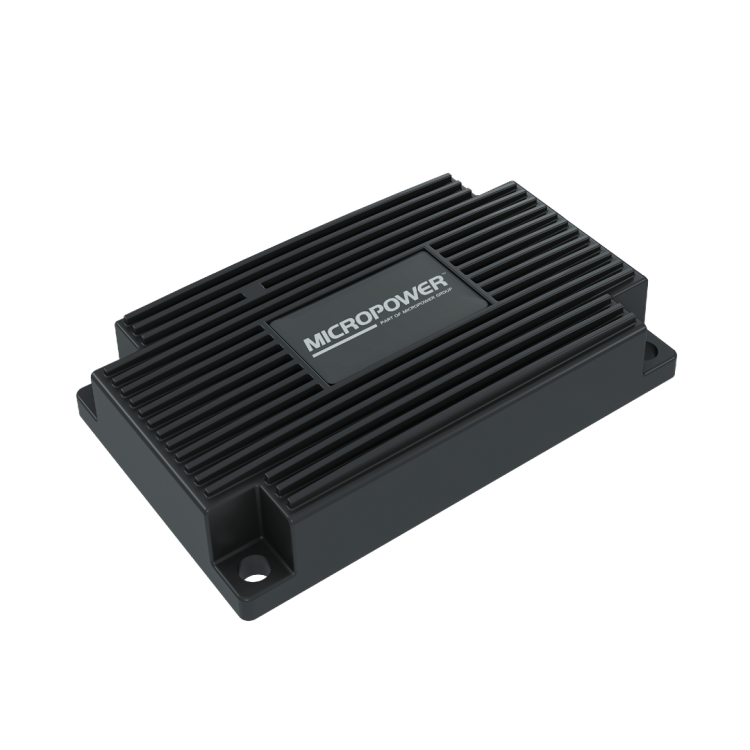

DC-DC Charger 12 V / 15 A (IP67)
This waterproof DC-DC charger from Micropower Group is designed for automotive and industrial applications where robust and reliable battery charging is needed. It converts a wide DC input voltage into a stable 12 V output with a controlled 15 A charging current, providing efficient and dependable charging for 12 V lead-acid batteries.
Key Specifications
-
Input Voltage: 9–16 V DC
-
Output Voltage: 12 V DC
-
Charging Current: 15 A (≈200 W)
-
Efficiency: >96 % typical
-
Ingress Protection: IP67 waterproof enclosure
-
Isolation: Galvanically isolated input and output
-
Connections: Pre-wired cable ends
-
Dimensions: 150 × 93 × 31 mm
-
Weight: ~0.2 kg
Main Features
-
IP67 Waterproof Housing: Fully sealed for dust and water protection in harsh environments.
-
High Efficiency: Efficient switching design minimizes heat and energy loss.
-
Optimized Charging: Provides correct charging algorithm for 12 V lead-acid batteries including Standard, GEL/AGM, and Calcium types.
-
Galvanic Isolation: Electrical separation between input and output for safety and reduced noise.
-
Compact & Robust Design: Durable aluminum housing for reliable performance in automotive and industrial installations.
Protection & Safety
-
Reverse Polarity Protection: Prevents damage from incorrect battery connection.
-
Short-Circuit Protection: Enhances durability under fault conditions.
-
Current Limiting & Thermal Protection: Helps prevent overheating and overload stress.
Typical Applications
- Automotive and vehicle dual-battery systems
- Caravans, campers, trailers and RVs
- Industrial and mobile battery charging
- Off-grid power systems
- Auxiliary and backup power charging
Installation & Integration
- Pre-wired cable connections for fast and straightforward installation.
- Suitable for panel, vehicle, or chassis mounting.
- Compatible with a broad range of 12 V lead-acid battery types.
Note: This IP67 DC-DC charger is a compact, robust solution for reliable 12 V battery charging with high efficiency and generous protection features — ideal for automotive, industrial and outdoor applications.
