Description

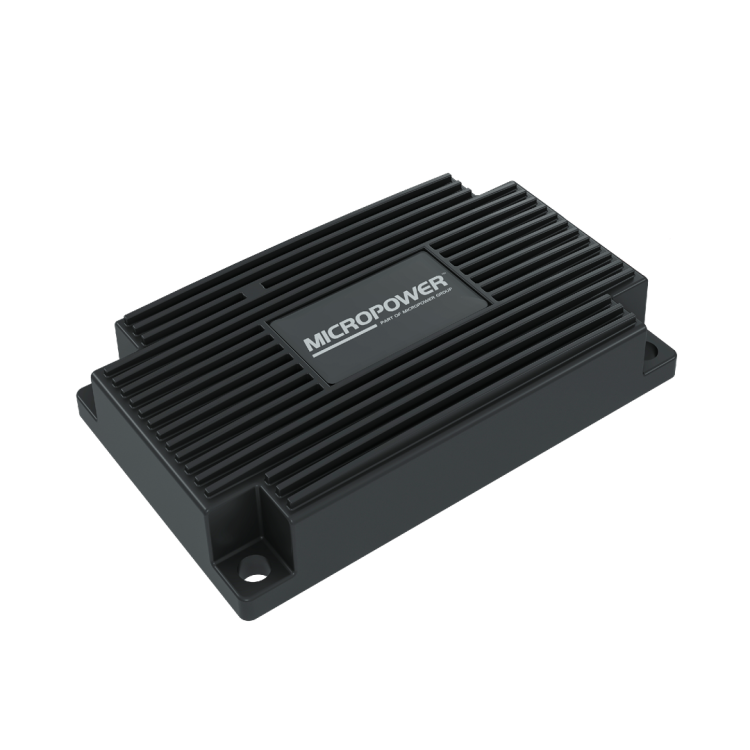

DC-DC Charger 24 V / 8 A (IP67)

This robust DC-DC charger from Micropower Group is designed to convert a wide DC input voltage into a stable 24 V DC output for battery charging and power applications. Built with high-efficiency technology and a fully sealed IP67 housing, it is suitable for automotive, industrial and outdoor use where reliable charging is required.

Key Specifications

• Input Voltage: 18–32 V DC (for 24 V systems)
• Output Voltage: 24 V DC
• Charging Current: 8 A
• Output Power: ~200 W
• Efficiency: >96 % typical
• Ingress Protection: IP67 waterproof enclosure
• Isolation: Galvanically isolated input to output
• Connections: Pre-wired cables (loose end)
• Dimensions: 150 × 93 × 31 mm
• Weight: Approximately 0.2 kg

Main Features

• IP67 Waterproof Housing: Fully sealed enclosure protects against dust and water ingress for demanding environments.
• High Efficiency: Advanced switching design reduces heat and maximizes efficiency above 96 %.
• Optimized Charging: Provides a controlled charging current ideal for 24 V lead-acid batteries including Standard, GEL/AGM, and Calcium types.
• Galvanic Isolation: Electrical separation between input and output for safety and reduced noise.
• Compact & Durable: Rugged aluminum housing built for industrial and mobile installations.

Protection & Safety

• Reverse Polarity Protection: Prevents damage if the input is connected incorrectly.
• Short-Circuit Protection: Enhances reliability under fault conditions.
• Overload Protection: Helps limit current under excessive load.

Typical Applications

• Automotive dual-battery charging systems
• Mobile and outdoor equipment power solutions
• Industrial battery charging and auxiliary power
• Caravans, campers, and trailers
• Backup power applications and off-grid systems

Installation & Integration

• Pre-wired input and output cables for quick and straightforward installation.
• Suitable for panel, chassis, or vehicle mounting where waterproof performance is needed.
• Compatible with various 24 V lead-acid battery types using correct charging profile.

Specifications

• Manuafacturer: Micropower
• Condition: New
