Description

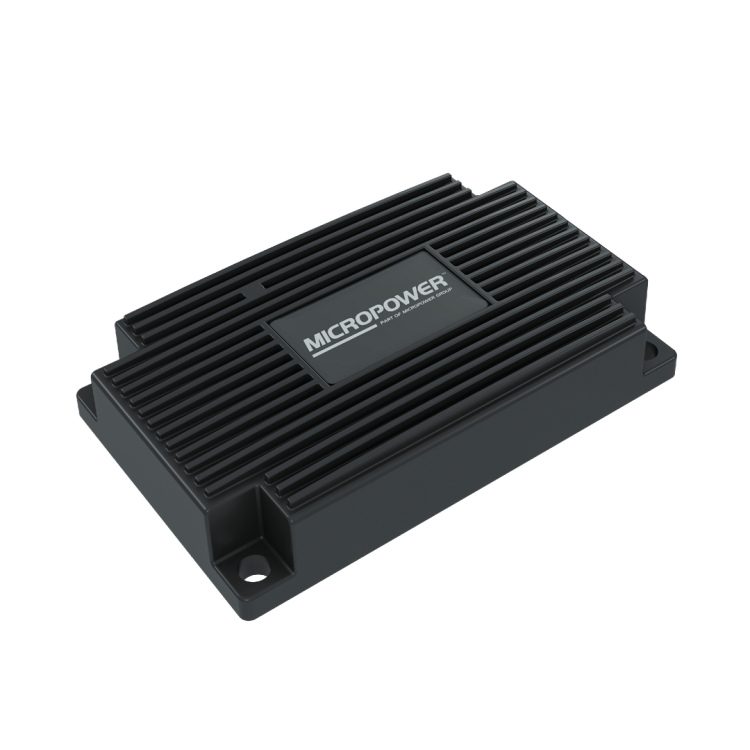

DC-DC Converter Non-Isolated 24 V to 12 V (IP67)

This non-isolated DC-DC converter from Micropower Group is engineered to step down a 24 V DC input to a stable 12 V DC output with high efficiency and rugged protection. It features advanced switching technology and a waterproof IP67 enclosure, making it ideal for industrial, mobile, and outdoor applications.

Key Specifications

• Input Voltage: 18–36 V DC
• Output Voltage: 12.5 V nominal (≈13.7 V actual)
• Output Power: 400 W
• Efficiency: >96 %
• Ingress Protection: IP67 waterproof housing
• Connections: Pre-wired input and output cables
• Dimensions: 150 × 93 × 31 mm
• Weight: ~0.82 kg

Main Features

• High Efficiency: Advanced switching technology enables efficiency above 96 %, reducing heat and energy loss.
• Non-Isolated Design: Efficient step-down conversion where isolation is not required.
• Rugged IP67 Housing: Fully sealed enclosure protects against dust and water for harsh environments.
• Robust Protection: Internal safeguards against wrong polarity and short circuits protect the converter from misuse.
• Pre-wired Cables: Input and output cables simplify installation.

Protection Functions

• Reverse Polarity Protection: Helps prevent damage if connected incorrectly.
• Short-Circuit Protection: Enhances durability under fault conditions.
• Overload Protection: Safeguards the unit against excessive load.

Typical Applications

• Industrial automation and control systems
• Vehicle and mobile power systems
• Battery-powered equipment
• Telecommunications and remote power units
• Outdoor and rugged environment power solutions

Installation & Integration

• Pre-wired cable connections for straightforward setup.
• IP67 sealed housing ensures reliability in harsh conditions.
• Compact and robust design suitable for industrial use.

Specifications

• Manuafacturer: Micropower
• Condition: New
