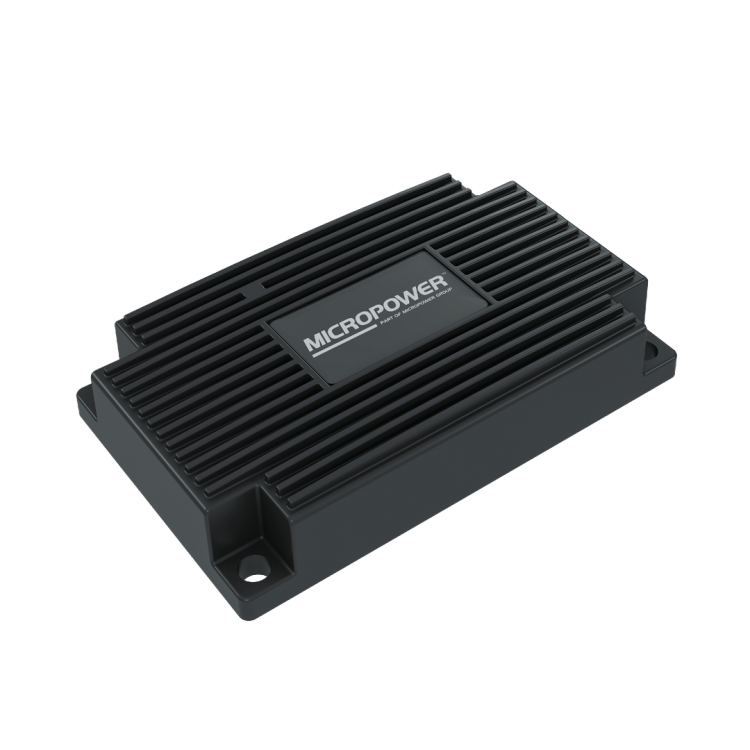

DC-DC Converter Isolated 24 V to 12 V (IP67)
This isolated DC-DC converter from Micropower Group is engineered to step down 24 V DC input to a stable 12 V DC output with high efficiency and robust protection. Designed with the latest switching technology and a rugged waterproof housing, it delivers reliable performance in challenging industrial and mobile environments.
Key Specifications
-
Input Voltage: 18–32 V DC
-
Output Voltage: 12 V DC
-
Output Power: 400 W
-
Efficiency: >96 %
-
Isolation: Galvanically isolated
-
Ingress Protection: IP67 waterproof enclosure
-
Connections: Cable, loose end
-
Dimensions: 150 × 93 × 31 mm
-
Weight: ~0.82 kg
Main Features
-
Wide Input Compatibility: Accepts 18 V to 32 V DC input range for flexible system integration.
-
High Efficiency: Advanced switching design reduces energy loss and heat build-up.
-
Galvanic Isolation: Improves electrical safety and noise immunity.
-
IP67 Protection: Fully sealed enclosure protects against water and dust for outdoor or harsh environments.
-
Rugged Construction: Shock-resistant aluminum housing ensures long service life.
Protection Functions
- Reverse polarity protection
- Short-circuit protection
- Overload protection
Typical Applications
- Industrial automation and control systems
- Mobile and vehicle-mounted equipment
- Battery-powered systems
- Telecommunications power units
- Control cabinet power conversion
Installation & Integration
- Cable lead connections for straightforward setup
- Suitable for panel and cabinet installation
- Compatible with rugged industrial environments
Note: This isolated DC-DC converter combines wide input tolerance, galvanic isolation, and IP67 protection for reliable 12 V power conversion in demanding industrial and mobile applications.
