Description

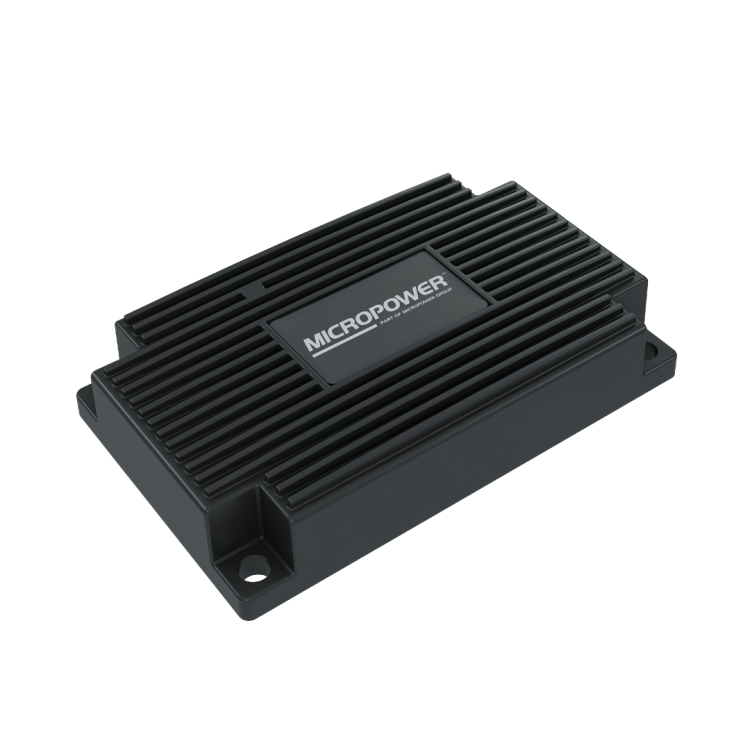

DC-DC Converter Isolated 48 V to 12 V
This isolated DC-DC converter from Micropower Group is engineered to convert a wide DC input range (33–65 V DC) into a stable 12 V DC output with high efficiency and dependable performance. Designed with advanced switching technology and compact construction, it is well suited for industrial, vehicle, and mobile applications.
Key Specifications
-
Input Voltage: 33–65 V DC
-
Output Voltage: 12 V DC nominal
-
Output Power: 200 W
-
Efficiency: >96 %
-
Isolation: Galvanically isolated
-
Ingress Protection: IP21 enclosure
-
Connections: 6.3 mm Fast-on terminals
-
Dimensions: 116 × 88 × 18 mm
-
Weight: ~0.2 kg
Main Features
-
Wide Input Range: Designed for flexible use with 33–65 V DC power systems.
-
High Efficiency: Advanced switching minimizes energy loss and heat.
-
Galvanic Isolation: Provides electrical separation for improved safety and noise immunity.
-
Compact Design: Space-saving enclosure for easy integration.
-
Built-in Protection: Internal safeguards help protect against misuse.
Protection Functions
-
Reverse Polarity Protection: Helps prevent damage on incorrect connection.
-
Short-Circuit Protection: Enhances reliability under fault conditions.
-
Overload Protection: Safe operation under load stress.
Typical Applications
- Industrial automation systems
- Mobile and vehicle power systems
- Battery-powered equipment
- Telecommunications power supplies
- Control cabinet power conversion
Installation & Integration
- Fast-on terminal connections for easy setup.
- Compact form factor integrates easily in tight spaces.
- Reliable conversion for demanding industrial power use.
Note: This isolated DC-DC converter provides efficient 12 V power conversion from a 48 V DC source with galvanic isolation and built-in protection — ideal for industrial, vehicle, and mobile applications.
