Description

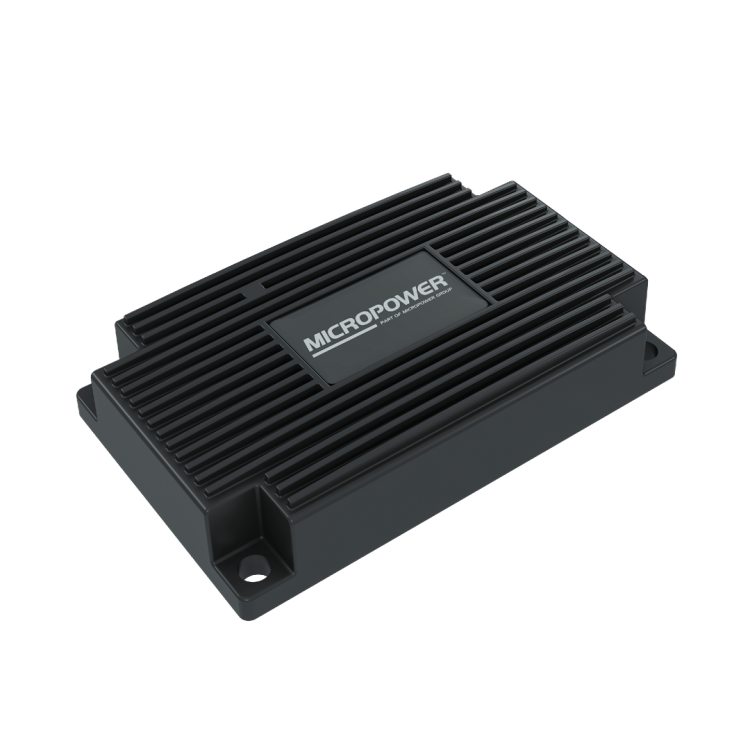

DC-DC Converter Isolated 48 V to 12 V (Wide Input)
This isolated DC-DC converter from Micropower Group is designed to convert a wide DC input range (33–65 V DC) into a stable 12 V DC output with high efficiency and robust protection. Built with advanced switching technology and compact construction, it delivers reliable performance for industrial, vehicle, and mobile power applications.
Key Specifications
-
Input Voltage: 33–65 V DC
-
Output Voltage: 12 V DC nominal
-
Output Power: 200 W
-
Efficiency: >96 %
-
Isolation: Galvanically isolated
-
Ingress Protection: IP21 enclosure
-
Connections: 6.3 mm Fast-on terminals
-
Dimensions: 116 × 88 × 18 mm
-
Weight: ~0.2 kg
Main Features
-
Wide Input Range: Designed for flexible operation with 33–65 V DC power sources.
-
High Efficiency: Advanced switching design minimizes power loss and heat.
-
Galvanic Isolation: Provides electrical separation between input and output for safety and noise immunity.
-
Compact Industrial Design: Suitable for integration into cabinets and systems with limited space.
-
Built-in Protection: Internal safeguards against wrong polarity and short circuits help protect the converter.
Protection Functions
- Reverse polarity protection to prevent misconnection damage.
- Short-circuit protection for improved reliability.
- Overload protection under heavy load conditions.
Typical Applications
- Industrial automation and control systems
- Vehicle power systems and utility equipment
- Battery-powered machinery and mobile platforms
- Telecommunications and remote power units
- Control cabinet and panel power conversion
Installation & Integration
- Fast-on terminal connections for straightforward installation.
- Compact design integrates easily in tight spaces.
- Reliable conversion for demanding power applications.
Note: This isolated DC-DC converter provides dependable power conversion from a 33–65 V DC source to 12 V DC with galvanic isolation and high efficiency — ideal for industrial, vehicle, and mobile use.
