Description

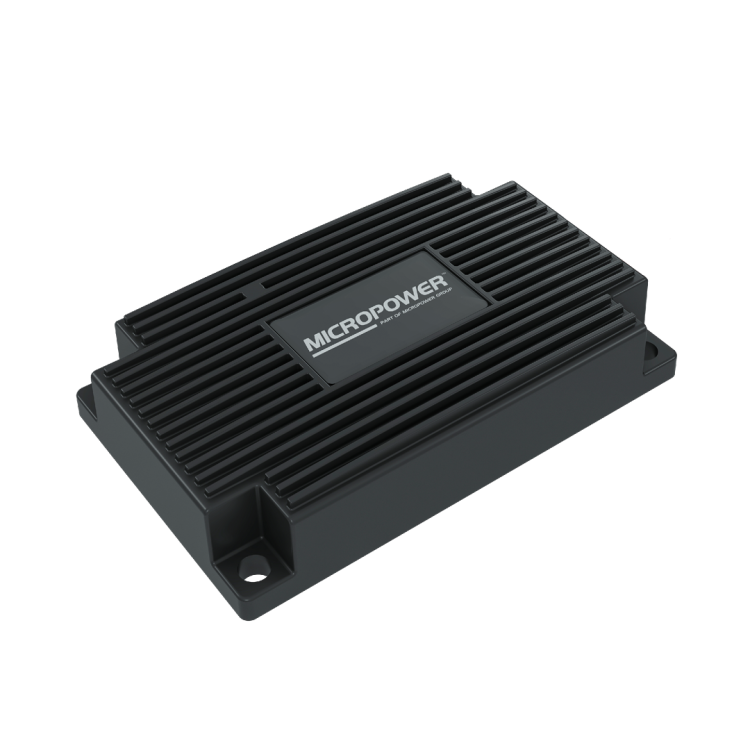

DC-DC Converter Isolated 24 V to 24 V (IP67)
This isolated DC-DC converter from Micropower Group is engineered to convert a wide 18–32 V DC input into a stable 24 V DC output with high efficiency and rugged protection. Built with advanced switching technology and a waterproof IP67 enclosure, it delivers dependable performance in industrial and mobile environments.
Key Specifications
-
Input Voltage: 18–32 V DC
-
Output Voltage: 24 V DC (nominal)
-
Output Power: 400 W
-
Efficiency: >96 %
-
Isolation: Galvanically isolated
-
Ingress Protection: IP67 waterproof enclosure
-
Connections: Cable, loose end
-
Dimensions: ~150 × 93 × 31 mm
-
Weight: ~0.82 kg
Main Features
-
Wide Input Range: Designed for flexible use with a broad 18–32 V DC supply range.
-
High Efficiency: Advanced switching technology minimizes energy loss and heat build-up.
-
Galvanic Isolation: Ensures electrical safety and noise immunity.
-
IP67 Protection: Fully sealed housing protects against dust and water ingress.
-
Durable Design: Rugged aluminum enclosure suited for harsh industrial conditions.
Protection Functions
- Reverse polarity protection
- Short-circuit protection
- Overload protection
Typical Applications
- Industrial automation and control systems
- Mobile and vehicle-mounted equipment
- Battery-powered systems
- Telecommunications power supplies
- Power conversion in control cabinets
Installation & Integration
- Pre-wired cable connections for easy setup
- Suitable for panel, cabinet, and mobile installations
- Reliable and robust power conversion for demanding environments
Note: This isolated DC-DC converter combines wide input tolerance, galvanic isolation, high efficiency, and IP67 protection for stable 24 V power conversion in industrial, mobile, and harsh environment applications.
