Description

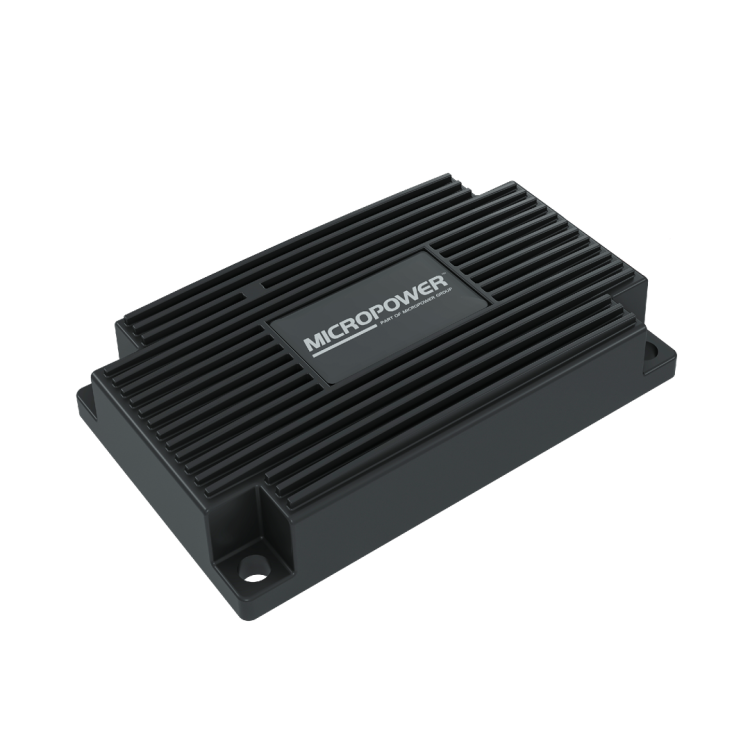

DC-DC Converter Isolated 48 V to 24 V (IP67)
This isolated DC-DC converter from Micropower Group is engineered to convert a wide DC input range (33–65 V DC) into a stable 24 V DC output with high efficiency and rugged protection. Designed with advanced switching technology and a waterproof IP67 enclosure, it delivers reliable performance in harsh industrial, mobile, and outdoor environments.
Key Specifications
-
Input Voltage: 33–65 V DC
-
Output Voltage: 24 V DC (nominal)
-
Output Power: 200 W
-
Efficiency: >96 %
-
Isolation: Galvanically isolated
-
Ingress Protection: IP67 waterproof enclosure
-
Connections: Pre-wired cables (input & output)
-
Dimensions: 150 × 93 × 31 mm
-
Weight: ~0.82 kg
Main Features
-
Wide Input Compatibility: Designed for flexible operation with 33–65 V DC power sources.
-
High Efficiency: Advanced switching technology helps minimize power loss and heat generation.
-
Galvanic Isolation: Ensures electrical separation between input and output for safety and noise immunity.
-
Waterproof IP67 Housing: Provides dust and water protection for tough environments.
-
Robust Design: Durable aluminum housing suited for industrial, mobile, and outdoor installations.
Protection Functions
-
Reverse Polarity Protection: Helps prevent damage due to incorrect connection.
-
Short-Circuit Protection: Enhances reliability under fault conditions.
-
Overload Protection: Safeguards the converter under excessive load.
Typical Applications
- Industrial automation power systems
- Vehicle and mobile equipment power conversion
- Battery-powered machinery
- Telecommunications and remote power installations
- Control panel and cabinet power solutions
Installation & Integration
- Pre-wired cable connections allow straightforward installation.
- Fully sealed housing ideal for outdoor and rugged applications.
- Compatible with industrial and mobile power systems.
Note: This isolated DC-DC converter combines wide input tolerance, galvanic isolation, and IP67 protection for dependable 24 V DC power conversion in demanding industrial, automotive, and outdoor environments.
