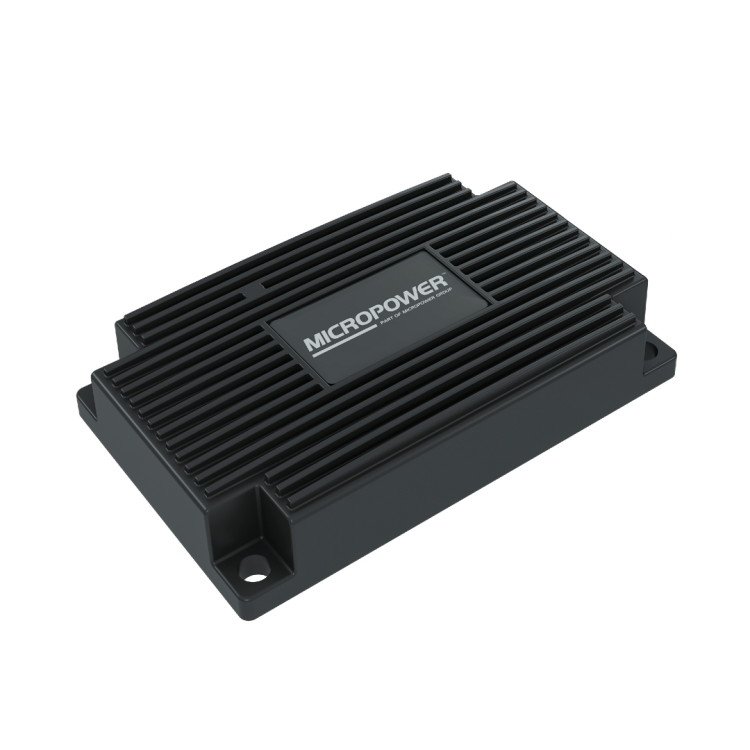

DC-DC Converter Isolated 80 V to 12 V (IP67)
This isolated DC-DC converter from Micropower Group is designed to convert a wide 60–110 V DC input into a stable 12 V DC output with high efficiency and rugged protection. Built with advanced switching technology and a waterproof IP67 enclosure, it delivers reliable performance in harsh industrial and mobile environments.
Key Specifications
-
Input Voltage: 60–110 V DC
-
Output Voltage: 12 V DC nominal
-
Output Power: 400 W
-
Efficiency: >96 %
-
Isolation: Galvanically isolated
-
Ingress Protection: IP67 waterproof enclosure
-
Connections: Cable, loose end
-
Dimensions: 150 × 93 × 31 mm
-
Weight: ~0.82 kg
Main Features
-
Wide Input Range: Accepts 60–110 V DC for flexible system design.
-
High Efficiency: Advanced switching technology minimizes energy loss and heat build-up.
-
Galvanic Isolation: Improves electrical safety and noise immunity.
-
IP67 Protection: Fully sealed housing protects against dust and water ingress.
-
Rugged Construction: Durable aluminum housing for long service life.
Protection Functions
- Reverse polarity protection to prevent damage in incorrect installations.
- Short-circuit protection for enhanced reliability.
- Overload protection to safeguard against excessive current.
Typical Applications
- Industrial automation and control systems
- Mobile and vehicle power systems
- Battery-powered equipment
- Telecommunications power supplies
- Control panel power conversion
Installation & Integration
- Pre-wired cable connections for straightforward installation.
- Suitable for panel and cabinet installation in rugged environments.
- Reliable and robust power conversion for demanding industrial use.
Note: This isolated DC-DC converter combines a wide input voltage range, galvanic isolation, high efficiency, and IP67 protection for dependable 12 V power conversion in industrial and mobile applications.
