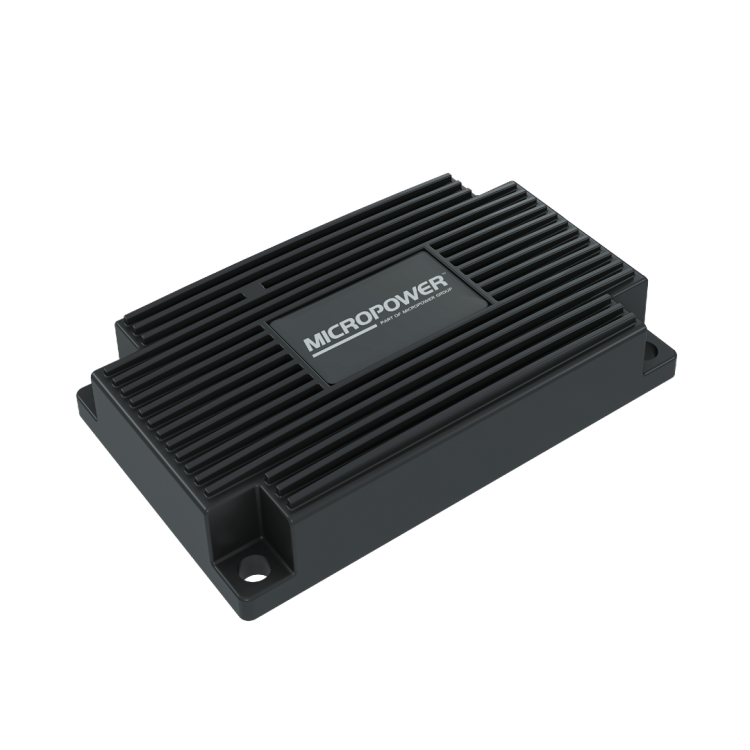

DC-DC Converter Isolated 80 V to 24 V (IP67)

This isolated DC-DC converter from Micropower Group is engineered to convert a wide DC input range (60–110 V DC) into a stable 24 V DC output with high efficiency and rugged protection. Built with advanced switching technology and a waterproof IP67 enclosure, it delivers reliable performance in harsh industrial and mobile environments.

Key Specifications

• Input Voltage: 60–110 V DC
• Output Voltage: 24 V DC (nominal)
• Output Power: 400 W
• Efficiency: >96 %
• Ingress Protection: IP67 waterproof enclosure
• Connections: Cable, loose end
• Dimensions: 150 × 93 × 31 mm
• Weight: ~0.82 kg

Main Features

• Wide Input Range: Designed for flexible use across 60–110 V DC systems.
• High Efficiency: Advanced switching technology minimizes heat and energy loss.
• Galvanic Isolation: Improves electrical safety and noise immunity.
• IP67 Protection: Sealed enclosure protects against dust and water ingress.
• Rugged Design: Durable housing for long service life in demanding environments.

Protection Functions

• Reverse polarity protection for safe installation.
• Short-circuit protection for enhanced reliability.
• Overload protection to safeguard against excessive current.

Typical Applications

• Industrial automation and control systems
• Mobile and vehicle power systems
• Battery-powered equipment
• Telecommunications power supplies
• Control panel power conversion

Installation & Integration

• Pre-wired cable connections for straightforward setup.
• Suitable for panel and cabinet installation in rugged environments.
• Reliable and robust power conversion for demanding industrial use.

• Note: This isolated DC-DC converter combines a wide input voltage range, galvanic isolation, high efficiency, and IP67 protection for dependable 24 V power conversion in industrial and mobile applications.

Specifications

• Manuafacturer: Micropower
• Condition: New
