Description

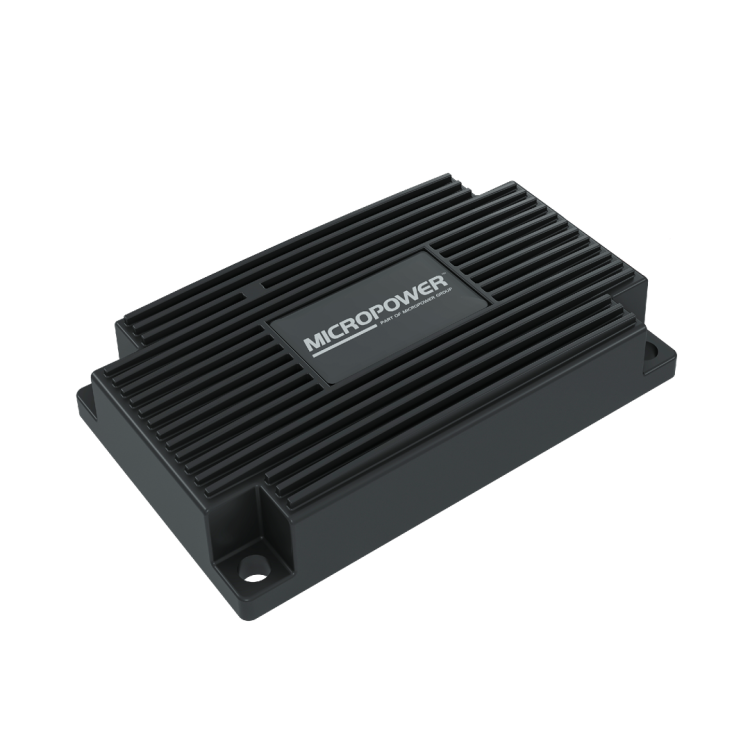

DC-DC Converter Isolated 9–36 V to 12 V (IP67)
This isolated DC-DC converter from Micropower Group is engineered to convert a wide 9–36 V DC input into a stable 12 V output with high efficiency and robust protection. Designed with advanced switching technology, it delivers reliable performance even in harsh environments, making it suitable for industrial and mobile applications.
Key Specifications
-
Input Voltage: 9–36 V DC
-
Output Voltage: 12 V DC nominal (≈13.5 V actual)
-
Output Power: 200 W
-
Efficiency: >96 %
-
Isolation: Galvanically isolated
-
Ingress Protection: IP67 rated enclosure
-
Connections: Cable, loose end
-
Dimensions: 150 × 93 × 31 mm
-
Weight: 0.82 kg
Main Features
-
Wide Input Range: Accepts 9–36 V DC supply for flexible deployment.
-
High Efficiency: Advanced switching power conversion minimizes energy loss and heat.
-
Waterproof Design: IP67 enclosure protects against dust and water for outdoor use.
-
Electrical Isolation: Galvanic isolation improves safety and noise immunity.
-
Tough Construction: Durable housing suitable for demanding industrial environments.
Protection Features
- Reverse polarity protection
- Short-circuit protection
- Overload protection
Typical Applications
- Industrial automation power supplies
- Vehicle and mobile power systems
- Battery-operated equipment
- Telecommunications power units
- Control cabinet power conversion
Installation & Integration
- Pre-wired cable connections for easy setup
- Full-featured electrical protection for reliable performance
- Suitable for outdoor and rugged environments thanks to IP67 enclosure
Note: This isolated DC-DC converter is ideal for applications requiring wide input tolerance, electrical isolation, and rugged protection in both industrial and mobile systems.
