Description

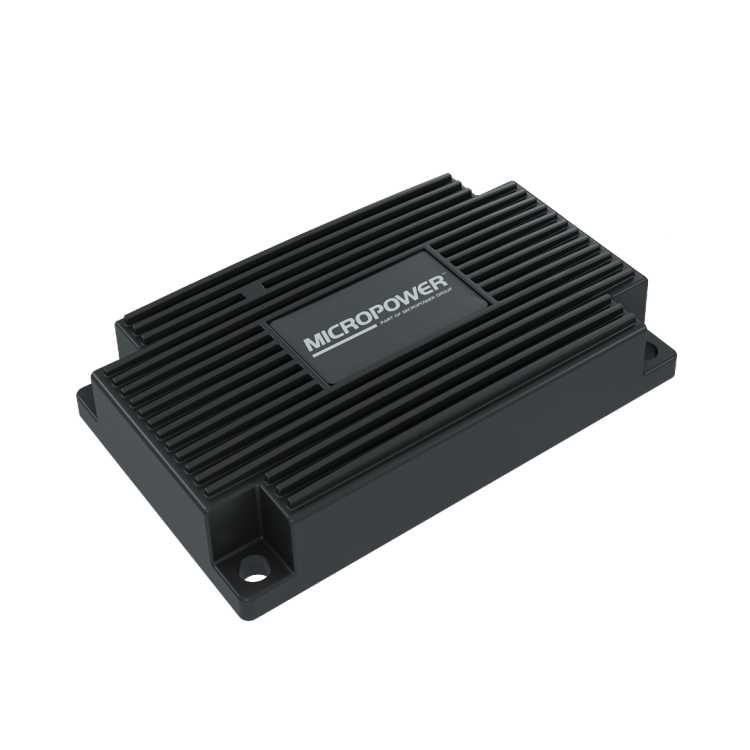

DC-DC Converter Isolated 9–36 V to 24 V (IP67)
This isolated DC-DC converter from Micropower Group is engineered to convert a wide 9–36 V DC input into a stable 24 V DC output with high efficiency and rugged protection. It features advanced switch-mode technology and a waterproof IP67 enclosure, delivering reliable performance in industrial, mobile, and outdoor environments.
Key Specifications
-
Input Voltage: 9–36 V DC
-
Output Voltage: 24 V DC nominal (≈24.5 V actual)
-
Output Power: 200 W
-
Efficiency: >96 %
-
Isolation: Galvanically isolated between input and output
-
Ingress Protection: IP67 waterproof enclosure
-
Connections: Pre-wired cables (input & output)
-
Dimensions: ~150 × 93 × 31 mm
-
Weight: ~0.82 kg
Main Features
-
Wide Input Range: Designed for flexible use with 9–36 V DC power sources.
-
High Efficiency: Advanced switching design minimizes heat and energy loss.
-
Galvanic Isolation: Electrical separation improves safety and noise immunity.
-
Waterproof IP67 Housing: Fully sealed enclosure protects against dust and water ingress.
-
Robust Construction: Rugged aluminum housing suited for harsh industrial environments.
Protection Functions
-
Reverse Polarity Protection: Helps prevent damage from incorrect connection.
-
Short-Circuit Protection: Enhances reliability under fault conditions.
-
Overload Protection: Safeguards the converter under high load stress.
Typical Applications
- Industrial automation and control systems
- Mobile and vehicle power installations
- Battery-powered equipment and auxiliary systems
- Telecommunications power solutions
- Control panel and field device power conversion
Installation & Integration
- Pre-wired cable connections for fast and straightforward installation
- Suitable for panel, cabinet, and chassis mounting in rugged environments
- Reliable conversion for demanding industrial and mobile use
Note: This isolated DC-DC converter provides dependable 24 V DC power from a wide DC input range with high efficiency, galvanic isolation, and IP67 protection — ideal for industrial, vehicle, and outdoor applications.
