Description

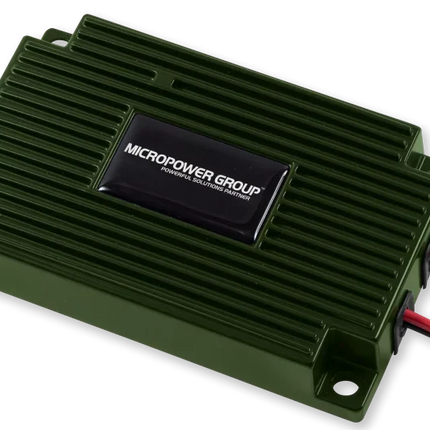

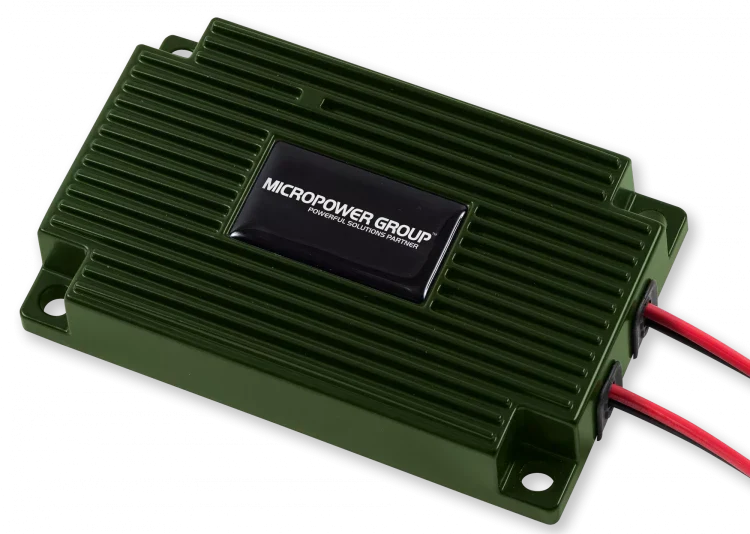

DC-DC Converter Military 24 V to 12 V (IP67)
This military-grade DC-DC converter from Micropower Group is engineered to step down a 24 V DC input to a stable 12 V DC output with high efficiency and rugged protection. Designed for defence, industrial, and mission-critical applications, it features advanced switch-mode technology and a sealed IP67 enclosure for reliable operation in harsh environments.
Key Specifications
-
Input Voltage: 18–36 V DC
-
Output Voltage: 12.5 V DC nominal
-
Output Power: ~400 W (≈30 A)
-
Efficiency: >95 % typical
-
Isolation: Galvanically isolated
-
Ingress Protection: IP67 sealed enclosure
-
Dimensions: ~150 × 93 × 31 mm
-
Weight: ~0.82 kg
Main Features
-
Military-Grade Design: Built to meet rugged requirements for defence and demanding environments.
-
Wide Input Compatibility: Works with 18–36 V DC systems for flexible power sources.
-
High Efficiency: >95 % efficient switch-mode design for minimal heat and energy loss.
-
Galvanic Isolation: Electrical separation between input and output for safety and noise immunity.
-
IP67 Protection: Fully sealed housing protects against dust, water ingress and outdoor conditions.
-
Rugged & Compact: Durable construction suited for vehicles, field equipment, and industrial systems.
Protection Functions
- Reverse polarity protection safeguards against incorrect power connections.
- Short-circuit protection provides reliability under fault conditions.
- Overload protection helps prevent damage from excessive load.
Typical Applications
- Military and defence power systems
- Industrial automation and control
- Battery-powered vehicles and mobile platforms
- Telecommunication power units
- Rugged equipment and field installations
Installation & Integration
- Pre-wired cable connections for straightforward installation.
- IP67 sealed housing for reliable outdoor and harsh environment use.
- Suitable for panel, vehicle, and cabinet integration.
Note: This military DC-DC converter combines high efficiency, galvanic isolation, and IP67 protection for dependable 12 V DC power conversion in rugged applications, making it ideal for defence, vehicle, and industrial power systems.
