Description

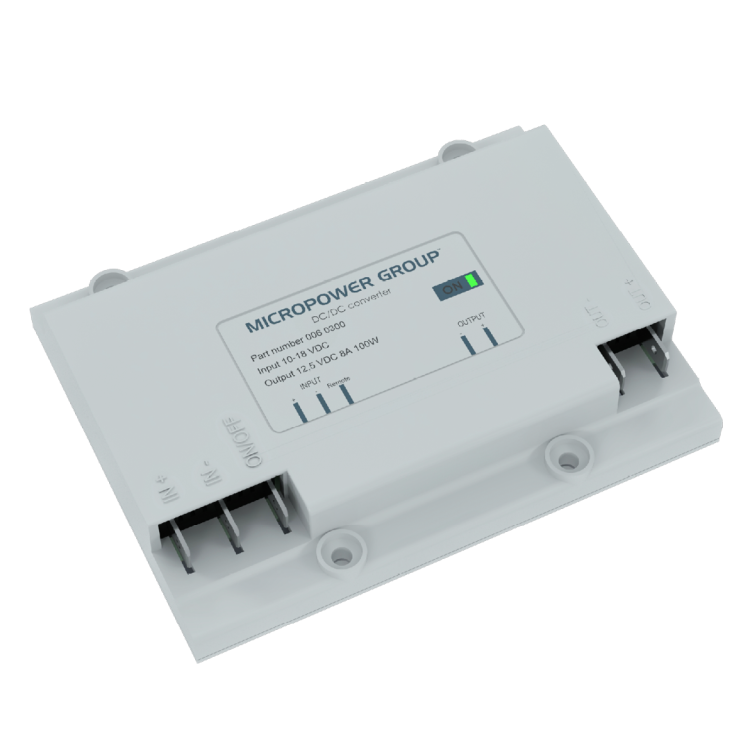

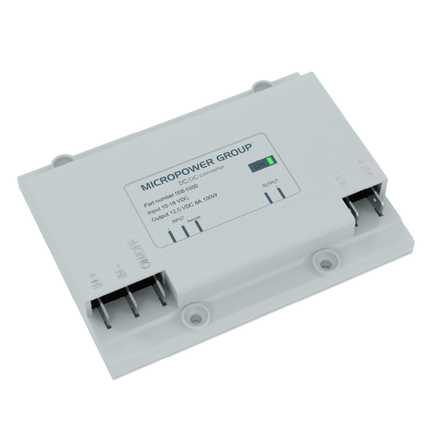

DC-DC Converter Isolated 9–36V to 12V (Wide Input)
This isolated DC-DC converter from Micropower Group is designed for applications requiring a stable 12 V output from a wide 9–36 V DC input range.
The unit delivers high efficiency, electrical isolation, and reliable operation in demanding industrial and mobile environments.
Key Specifications
-
Input Voltage: 9–36 V DC
-
Output Voltage: 12 V DC (nominal)
-
Output Power: Up to 200 W
-
Efficiency: Up to 96%
-
Isolation: Galvanically isolated
-
Ingress Protection: IP21
Main Features
- Wide input voltage range for flexible system design
- High efficiency to reduce heat and energy loss
- Electrical isolation for improved safety and noise immunity
- Compact and low-profile mechanical design
- Designed for continuous industrial operation
Protection Functions
- Reverse polarity protection
- Short-circuit protection
- Overload protection
Typical Applications
- Industrial automation systems
- Vehicle and mobile equipment
- Battery-powered systems
- Telecom and communication equipment
- Power distribution in control cabinets
Integration
- Fast-on terminals for simple installation
- Suitable for panel and cabinet mounting
- Compatible with variable DC supply systems
Note: This DC-DC converter is intended for professional and industrial use where high efficiency, isolation, and wide input voltage tolerance are required.
