Available for 50mm2, 70mm2 and 95mm2 cables

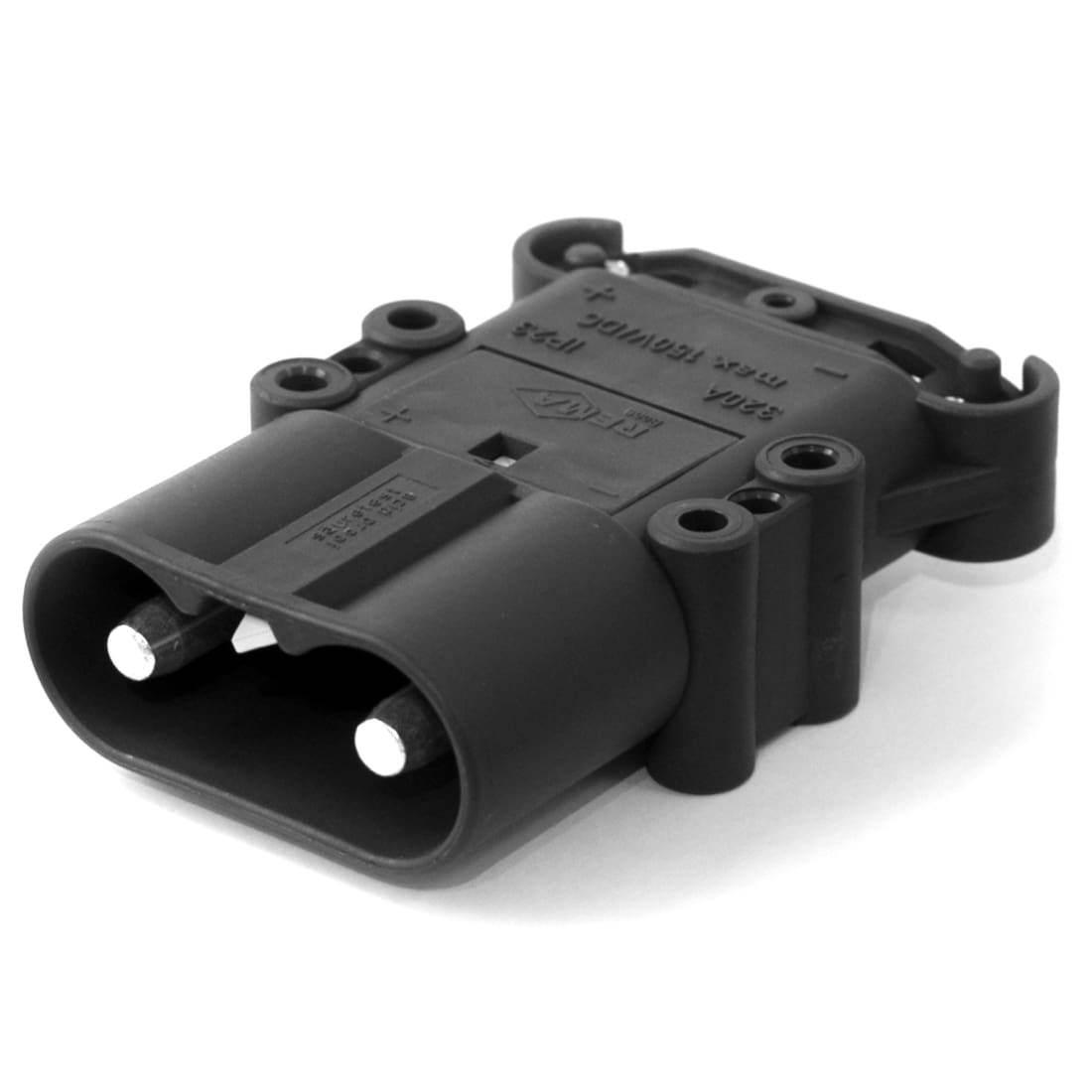

320A PLUG = MALE = STECKER = CHARGER/CAR SIDE
50mm2 = 95500-01 DIN 320 A plug; grey coding; acid resistant
70mm2 = 95505-01 DIN 320 A plug; grey coding; acid resistant
95mm2 = 95510-01 / 108960 DIN 320 A plug; grey coding; acid resistant
REMA DIN 320 Catalog here
Check all DIN 320 connectors here
Sold without a handle, a detachable handle types can be installed and replaced in case the handle breaks. Please see the available accessory for the product. Different types of detachable handles are available as accessories.
PLUG = Male version, for the charger and car/vehicle/EV/motor side
Product features and advantages
- Specifically designed for the quick and opportunity charging of large battery capacities.
- Suitable for lead gel accumulators and lithium-ion batteries.
- Corresponds to the DIN VDE 0632-589 and EN 1175-1
- Spring-supported contact system for optimal contact pressure high electrical conductivity
- High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life
- Durable because of acid resistant design
- Suitable for cable sizes from 50 mm² to 95 mm² ( smaller doable with 100% fit reducing bushings, look for product page for accessories )
- Direct crimping without reducing bushing for all cable size
- Wide range of accessories different handle shapes available
- 1 pair of additional auxiliary and 1 pair of pilot contacts
- cooling system with air supply through
Typical applications are forklift trucks battery charging systems sweeper and cleaning devices.

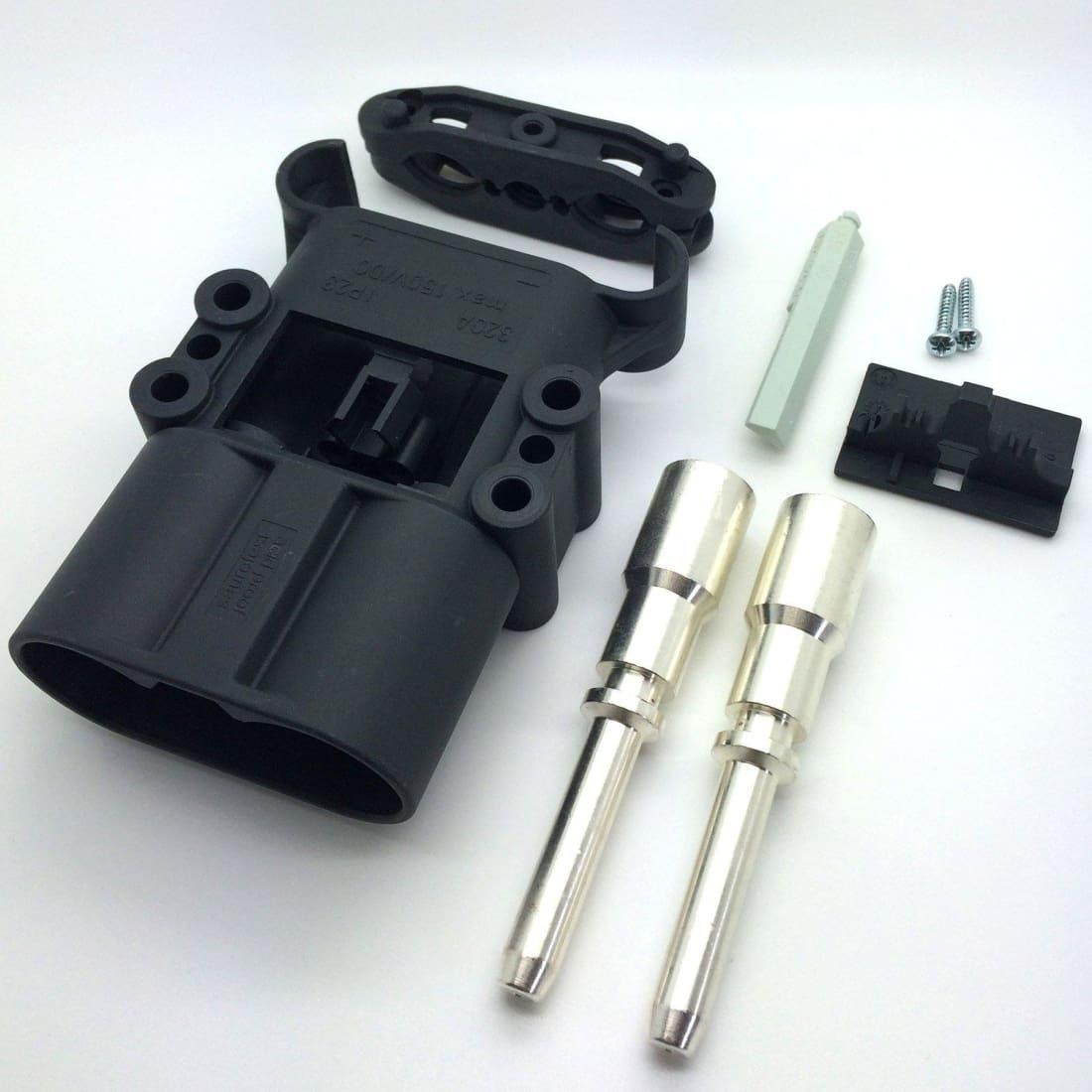

REMA DIN 320A Plug with contacts, lock part, coding pin and cable stress relief = cable clamp. Including grey coding pin for DRY battery.
