Description

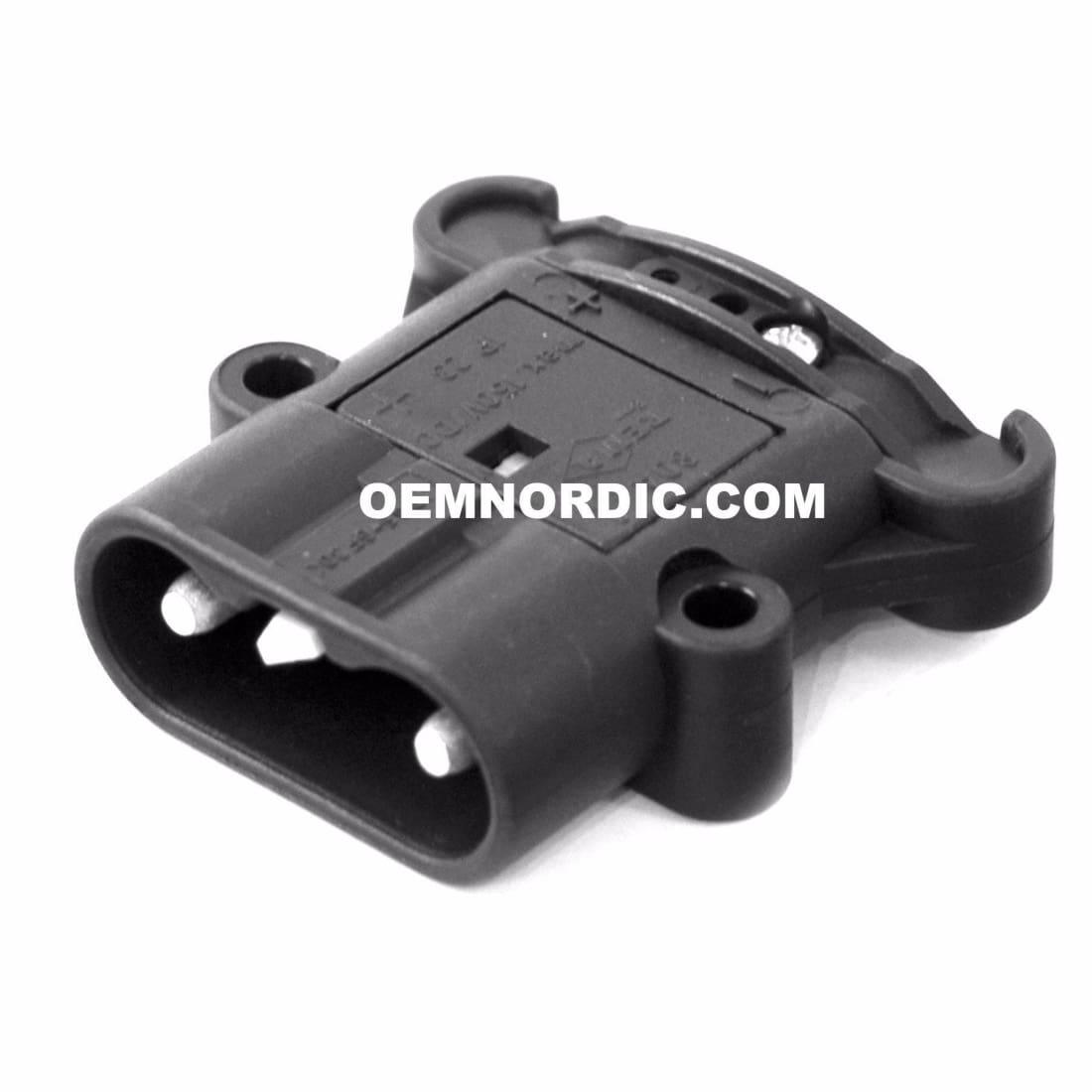

REMA DIN 80A Plug with contacts, lock part, coding pin and cable stress relief = cable clamp. Including grey coding pin for DRY battery.
Other options are
Green = Wet Battery
Yellow = Wet&Dry Battery
Available with 6mm2, 10mm2, 16mm2, 25mm2 and 35mm2 contacts
| Item description |
contacts (mm2 & AWG) |
New Rema Code |
Old Rema Code |
| DIN 80 plug set, acid resistant |
6mm2
fits AWG 10/12
|
|
|
| DIN 80 A plug; grey coding; acid resistant |
10mm2 fits AWG 8 |
|
|
| DIN 80 A plug; grey coding; acid resistant |
16mm2 fits AWG 6 |
|
|
| DIN 80 A plug; grey coding; acid resistant |
25mm2 fits AWG 4 |
|
|
| DIN 80 A plug; grey coding; acid resistant |
35mm2 Fits AWG 2 |
|
|
* No handle included, please add separate handle type if needed.
* Plug without handle allows the handle to be changed upon damage very easily.
Product features and advantages:
- Specifically designed for the quick and opportunity charging of large battery capacities
- Suitable for lead gel accumulators and lithium-ion batteries
- Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring supported contact system for optimal contact pressure high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life
- Durable because of acid resistant design
- Suitable for cable sizes from 10 mm2 to 35 mm2
- Direct crimping without reducing bushing for all cable size
Wide range of accessories
- different handle shapes are available
- connect a pair of additional auxiliary and/or a pair of pilot contacts
- cooling system with air supply through
Typical applications
- forklift trucks
- battery charging systems sweeper and cleaning devices
