Description

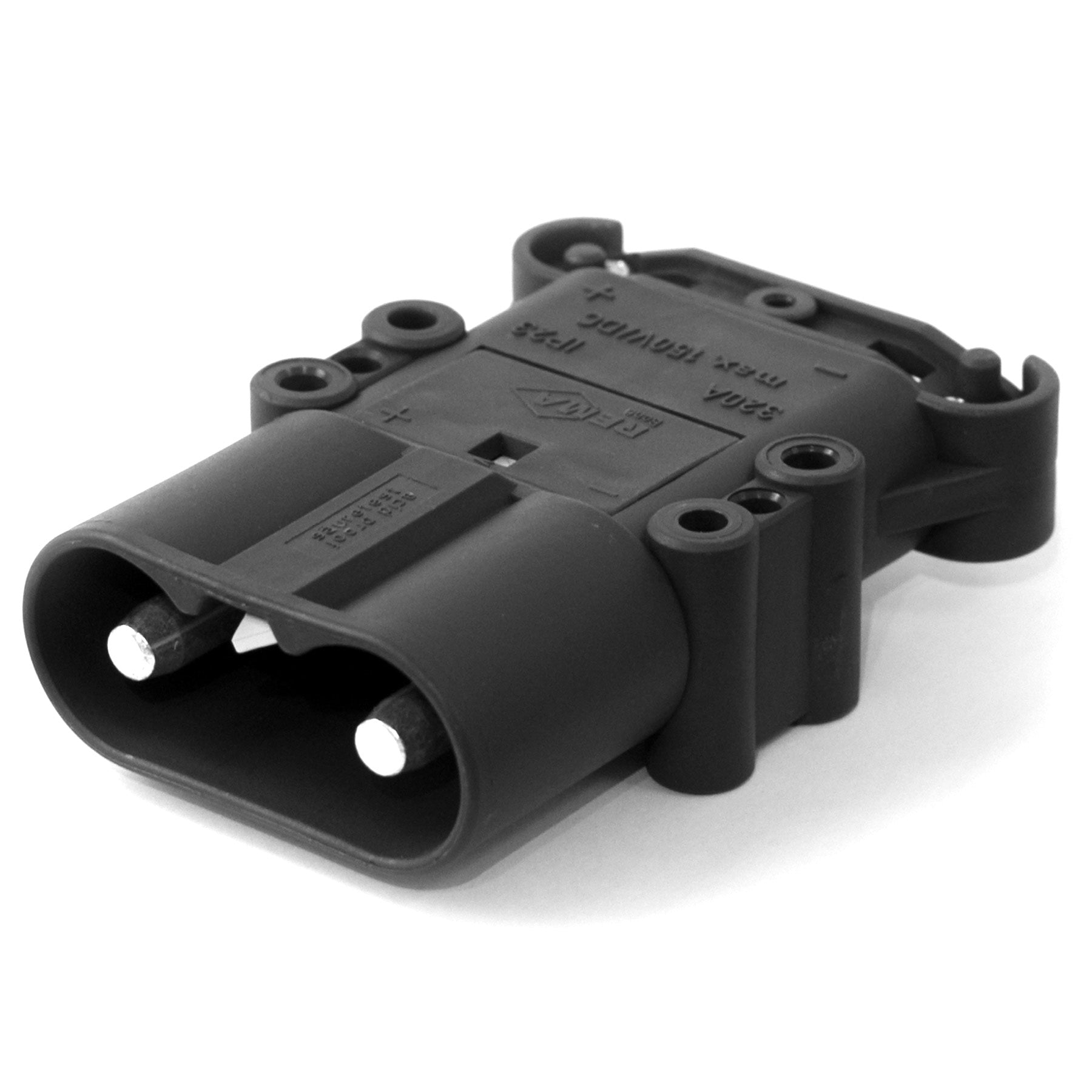

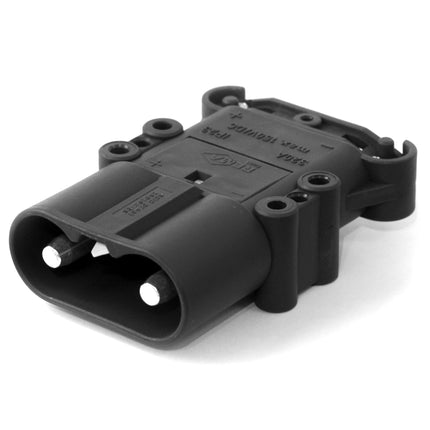

REMA 95505-01 for DIN320 70mm² - Plug

Original REMA EURO DIN 320A / 70 mm² plug with grey coding, acid-resistant 108957 / 9550501 are the REMA catalog numbers for the item indicated as (new catalog nr/old catalog nr)

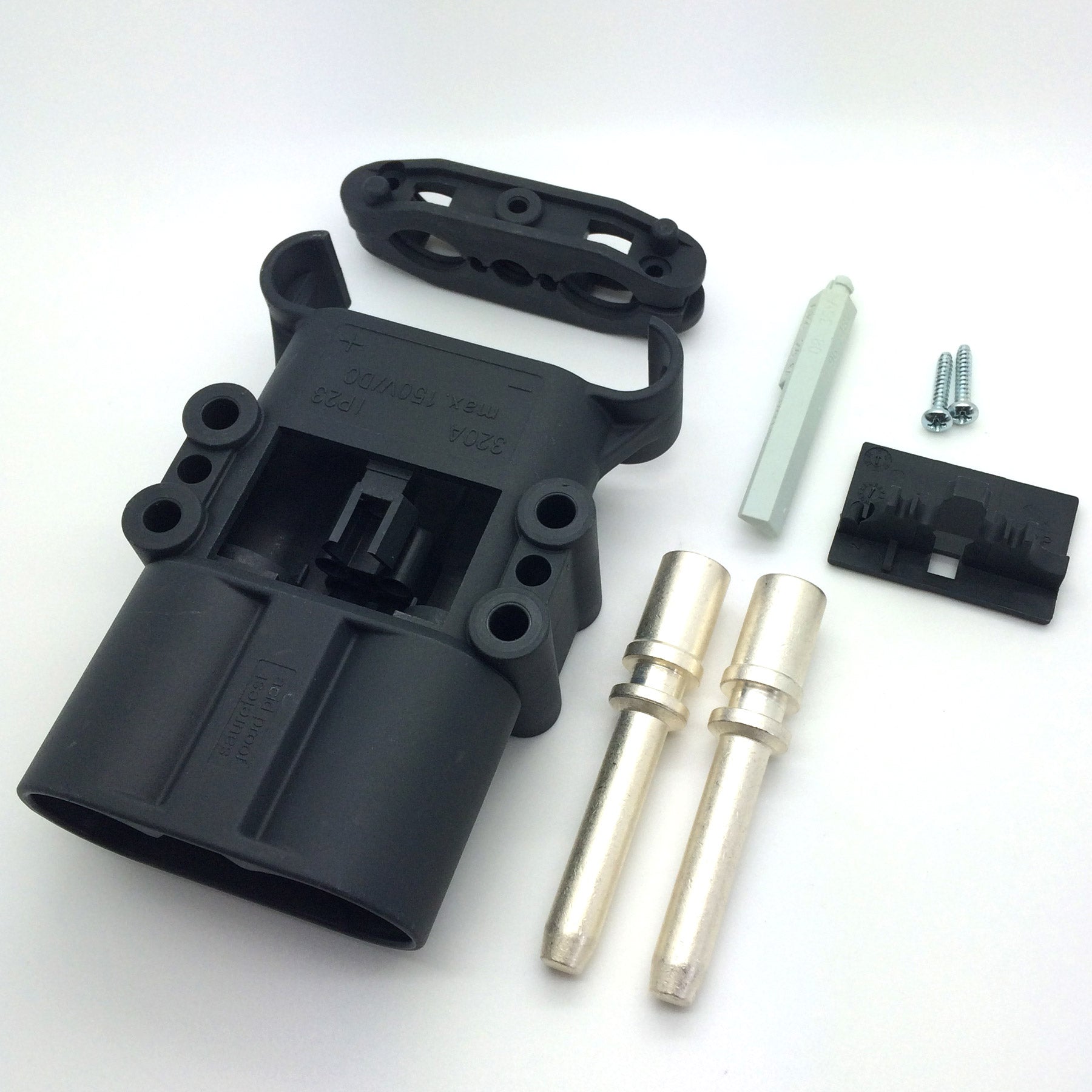

95505-01 includes these parts:

• 1x housing, 1x lock part, 1x coding pin (grey), 1x cable clamp set
• 2x main contacts 70 mm², plug side

This is a Complete connector set with battery acid-resistant housing.

Extra accessories are available, such as extra auxiliary and pilot contact sets, handles, air pipes.

Housing material – IMPORTANT CLARIFICATION

🔹 This is the Battery Acid Resistant, Dark Grey housing version

• Material: PP CoPo GF30 (copolymer polypropylene)

• Battery acid-resistant

• UL-tested version

• Recommended for demanding battery and traction applications

👉 Only the housing material differs between the black and dark grey versions. All electrical and mechanical connector parts are identical.

** As an alternative, a complete black housing version is available under part number 75500-01 which features a fully black housing made from shock-resistant polyamide (PA), offering increased mechanical strength and improved impact resistance.

Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.

Specifications

• Manuafacturer: REMA
• Condition: New
