Description
REMA 95605-01

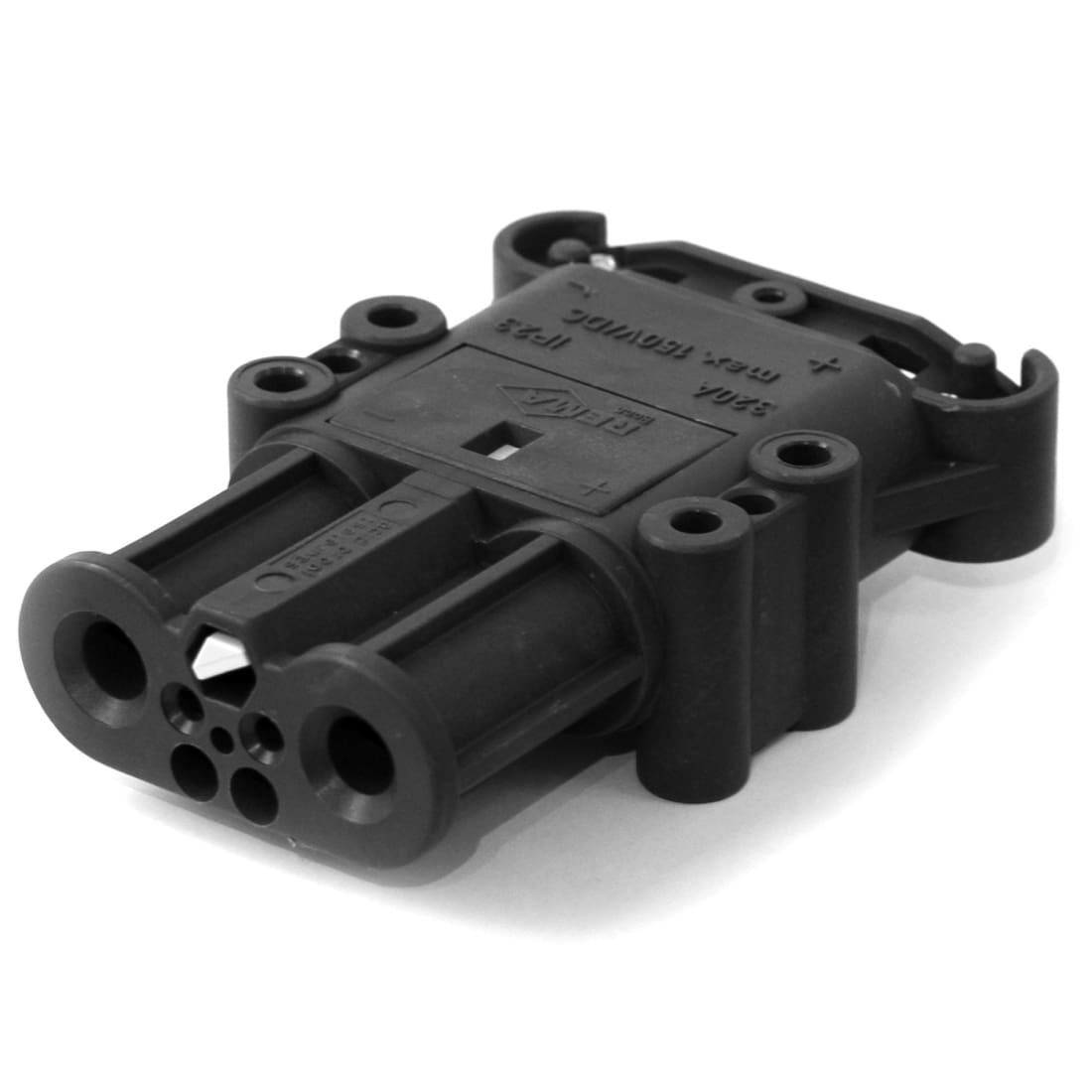

Original REMA EURO DIN 320A / 50 mm² socket with grey coding, acid resistant 108975 / 9560501 are the REMA catalog numbers for the item indicated as (new catalog nr/old catalog nr)

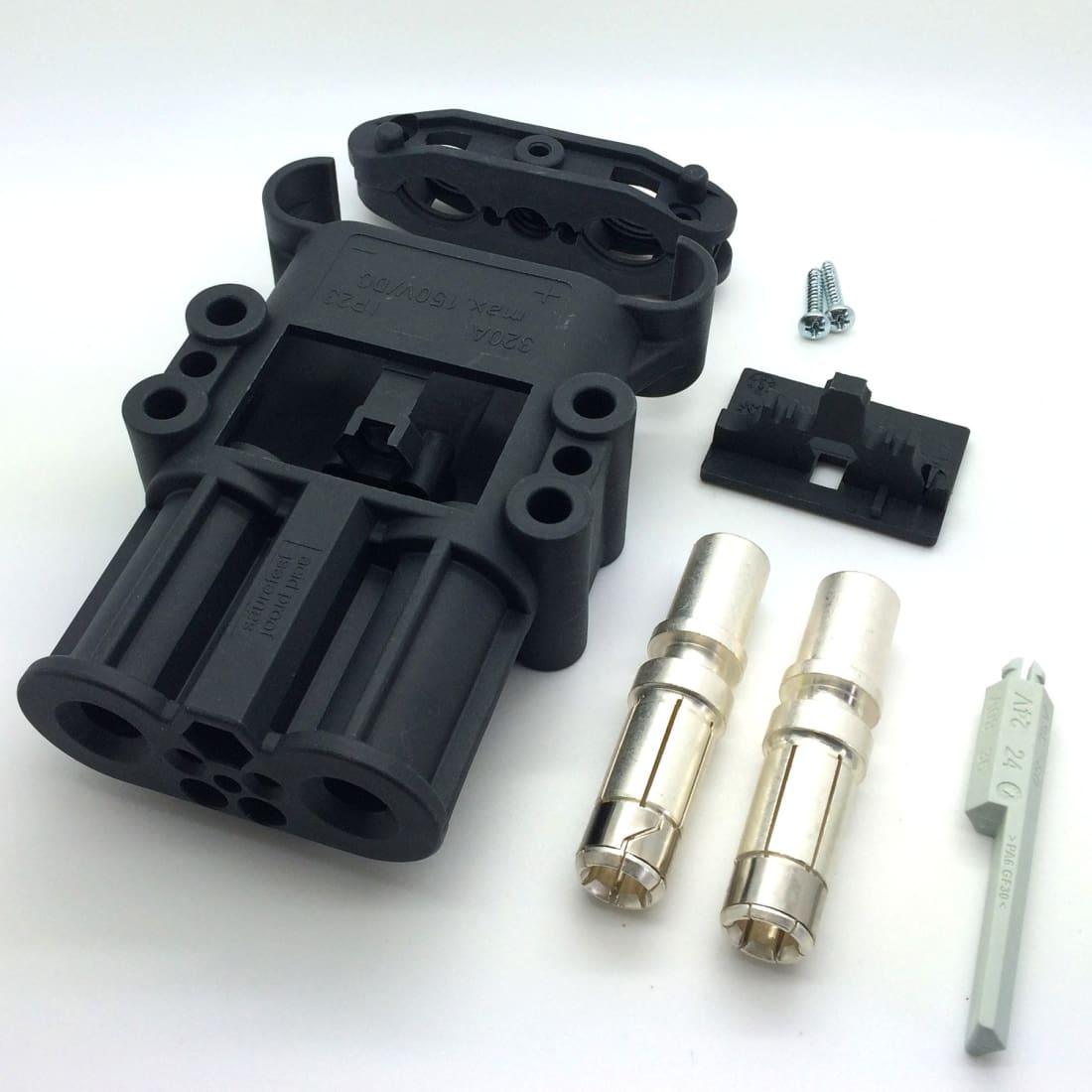

95605-01 includes these parts:
- 1x housing, 1x lock part, 1x coding pin (grey), 1x cable clamp set
- 2x main contacts 70 mm², socket side (the battery side)
This is a Complete connector set with battery acid-resistant housing.
Extra accessories are available, such as extra auxiliary and pilot contact sets, handles, air pipes.
Housing material – IMPORTANT CLARIFICATION
🔹 This is the Battery Acid Resistant, Dark Grey housing version
👉 Only the housing material differs between the black and dark grey versions. All electrical and mechanical connector parts are identical.
** As an alternative, a complete black housing version is available under part number 75601-01 which features a fully black housing made from shock-resistant polyamide (PA), offering increased mechanical strength and improved impact resistance.
Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.
