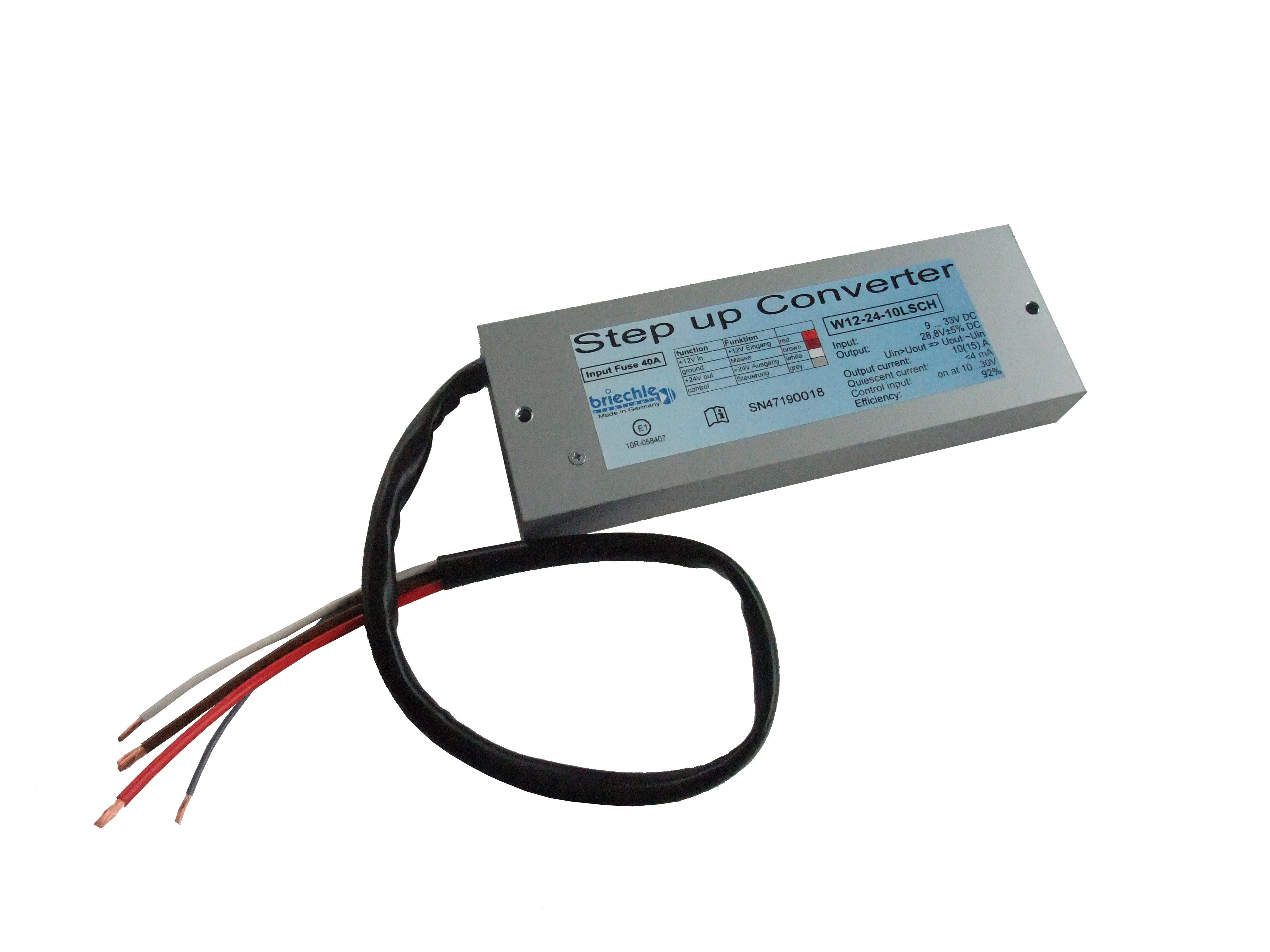

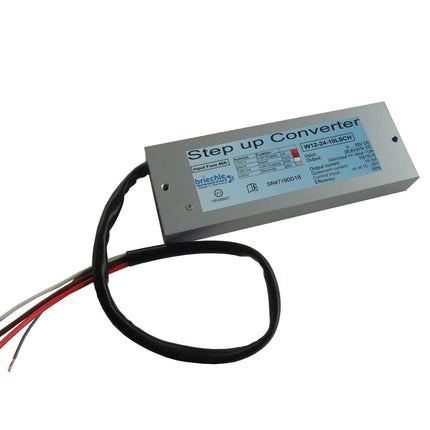

Step-up converter of a higher power for 24V devices at 12V car line.
Double Volt 10 Charge
▪ IN: 12V ... 24V / OUT: 28,8V
▪ Connection: open cable end
Weight: 0.92 kg
Technical data:
|
Input voltage
|
9 ... 33V DC |
| Input current | max. 35A (12V) |
| Control input | on at 10 ... 33V |
| Output voltage | 28,8V DC + - 5% |
| Output current | 0 ... 10A (15A) |
| Connection | open cable end |
| Cable length | about 450mm |
| Current without load | <4mA (12V) |
| Efficiency | app. 92% |
| Temperature range | -40°C ... +75°C |
| Electrical protection | overtemperature, overcurrent, reverse polarity |
| Mechanical protection | entirely sealed (IP69K) |
| Dimensions | 200 x 70 x 25mm without cable outlet |
| Mass | app. 770g
|
