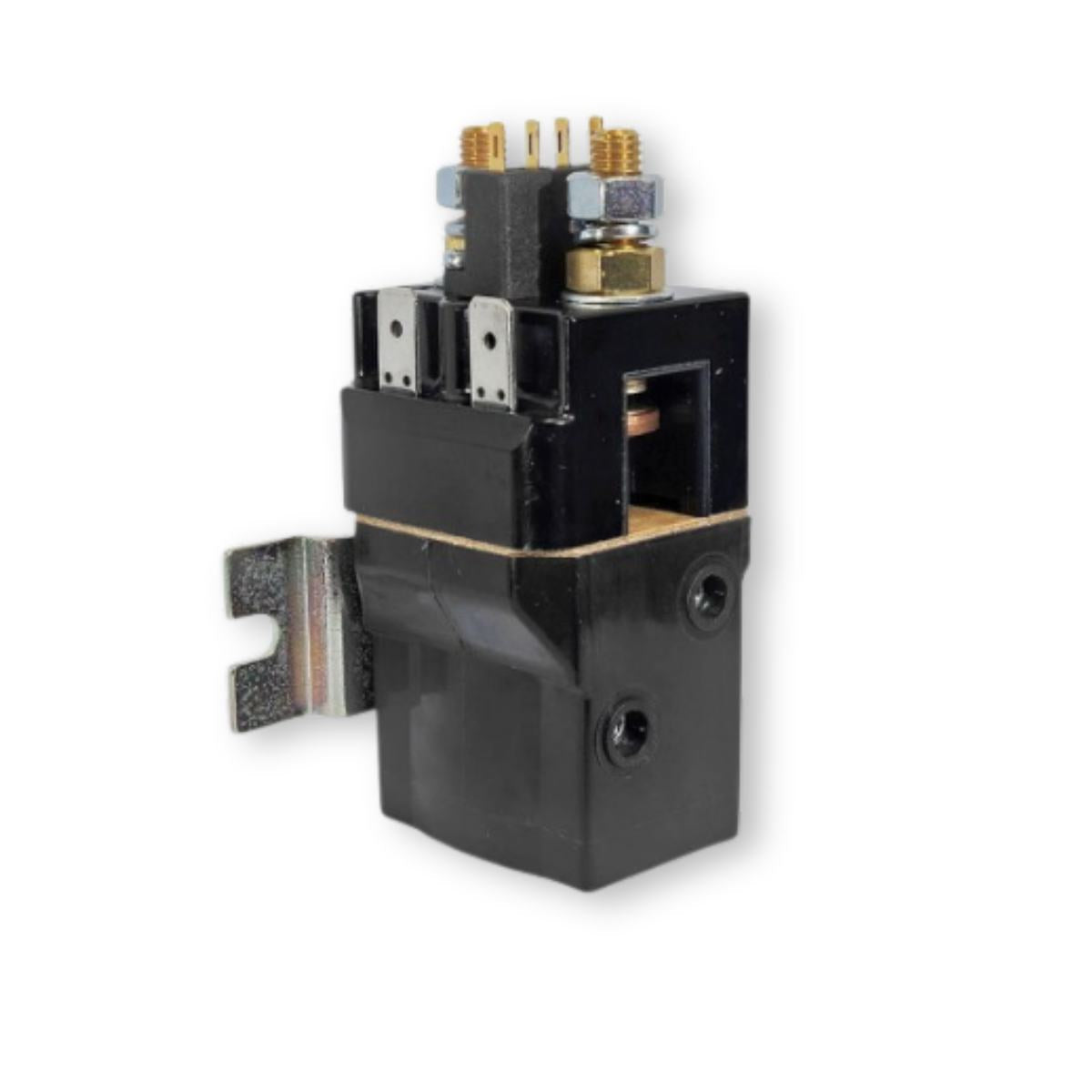

SW60A-232 – Technical Description

The SW60A-232 is a single-pole DC contactor designed for reliable switching of medium-current DC loads. It is equipped with a 24 V DC continuous-duty (CO) coil, ensuring stable performance in applications requiring long energization times.

This model includes auxiliary contacts for status signalling or interlock functions.

The contactor is rated for a cut-off (breaking) current of 80 A at 48 V DC, making it suitable for battery systems, mobility equipment, industrial controls, and other DC power applications.

Structurally, the SW60A-232 is based on the SW60A-22 contactor, with an added 3060-94 mounting bracket, providing extended compatibility for panel or frame installation.

Key Features

• Single-pole DC contactor for medium-current applications
• 24 V DC continuous-duty (CO) coil for long energization periods
• Integrated auxiliary contacts for signalling or interlock logic
• Cut-off current rating: 80 A at 48 V DC
• Based on SW60A-22 with added 3060-94 mounting bracket
• Suitable for battery systems, mobility equipment and industrial controls
