Description

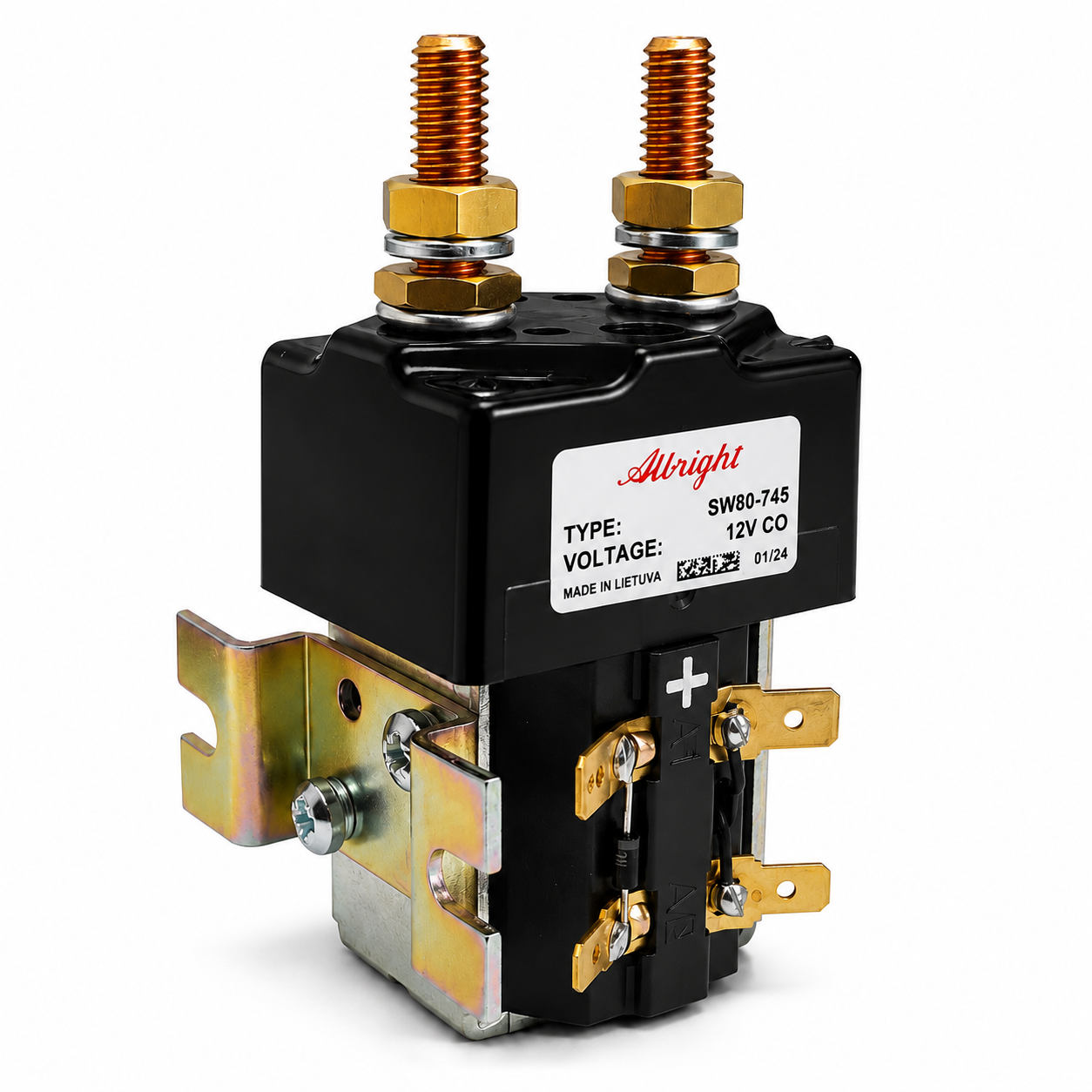

The Albright SW80-745 is a 12V DC single-acting continuous-duty solenoid contactor supplied with an extended mounting bracket and auxiliary switch assembly, making it ideal for industrial DC switching applications and electric vehicle systems.
The SW80 series is specifically engineered for direct current motor applications, especially in light industrial trucks, powered mobility vehicles, utility equipment, and other battery-powered systems. Unlike sealed automotive starter solenoids, the SW80 contactors are serviceable and allow inspection of contact wear, offering a more durable and cost-effective long-term solution.
Key features include:
- Continuous duty 12V DC coil
- Double-break main contacts for improved DC switching performance
- Silver-alloy contact tips for excellent conductivity and high weld resistance
- Auxiliary switch kit installed (Part No. 2070-124)
- Removable auxiliary assembly secured with screws
- Extended upper mounting bracket (2126-48A)
- Enclosed top cover for additional protection
- Integrated suppression diode fitted
- Supplied with special terminals and fixing nuts
Connection details:
- Upper coil terminals: standard 6.3mm spade terminals
- Lower coil terminals: standard 4.8mm spade terminals
This contactor is commonly used in:
- Electric utility vehicles
- Material handling equipment
- Hydraulic power packs
- Winch systems
- Battery disconnect systems
- DC motor reversing and switching circuits
Its rugged construction and replaceable contact system make it particularly suitable for demanding industrial and mobile equipment environments where reliability and serviceability are important.
