Albright SW84B-4 DC Contactor 100A 24V – Continuous Duty

Albright SW84B-4 DC Contactor 100A 24V – Continuous Duty

Product form

SW84B-4 Albright Magnetic Blowouts These contactors are fitted with magnetic blowouts - denoted by 'B' suffix in the SW84B range)... Read more

€79,00  €65,00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jun 05, 2026 12:00:00 +0300
    • Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP
    • 30 days hassle-free returns
    Flexible payments

    Easily pay with multiple payment options.
    Read more

    Description

    SW84B-4 Albright

    Magnetic Blowouts

    These contactors are fitted with magnetic blowouts - denoted by 'B' suffix in the SW84B range) across contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.

    About Continuous - CO.) SW84B-4 Solenoids

    Continuous contactors by design are predominantly for drive functions on vehicles, they switch slower than intermittent solenoids and are recommended for prolonged contact periods.

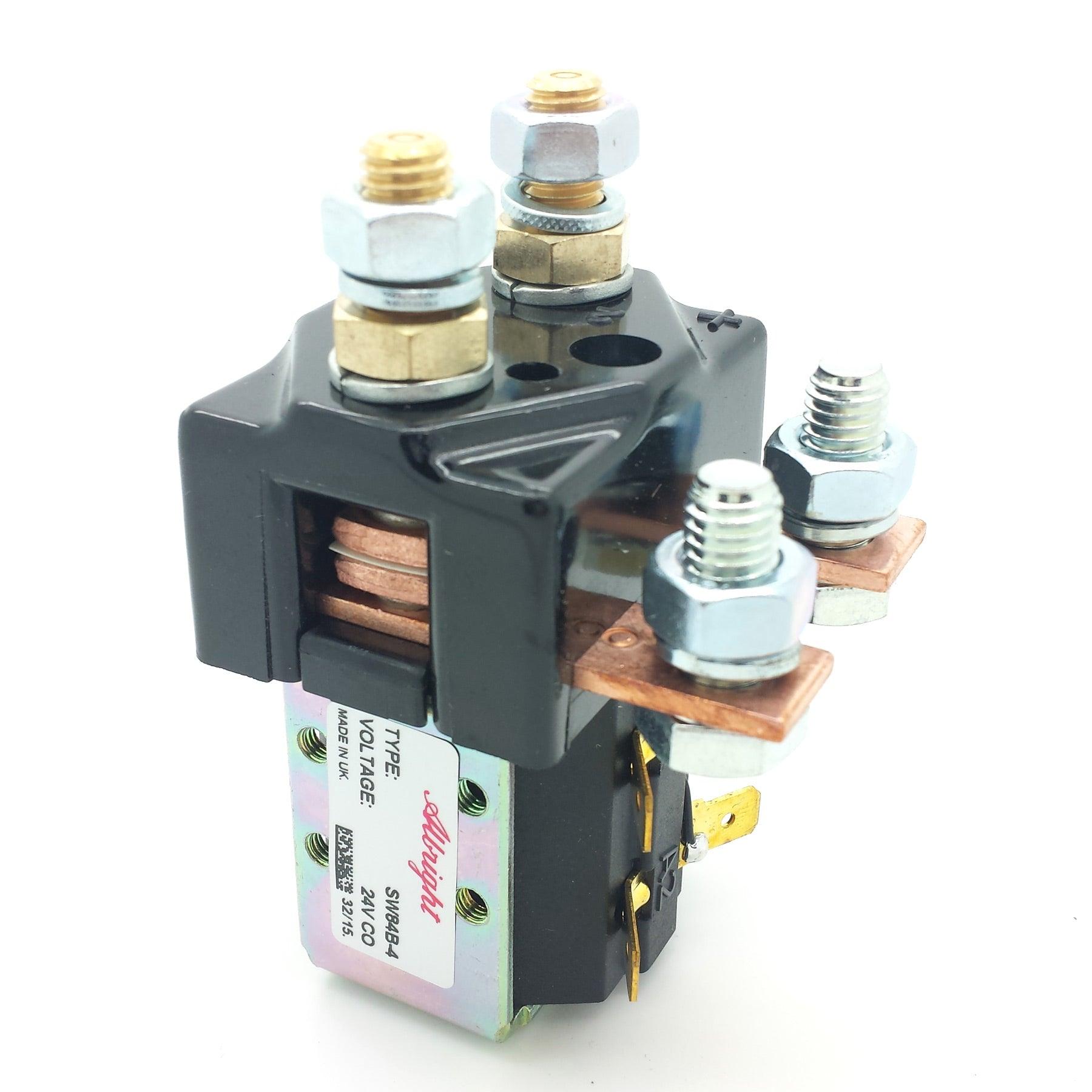

    The SW84 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or mounting brackets purchased as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. Please note Normally Closed contacts are not suited to make and break load.

    Specifications

    • Manuafacturer: Albright
    • Condition: New
