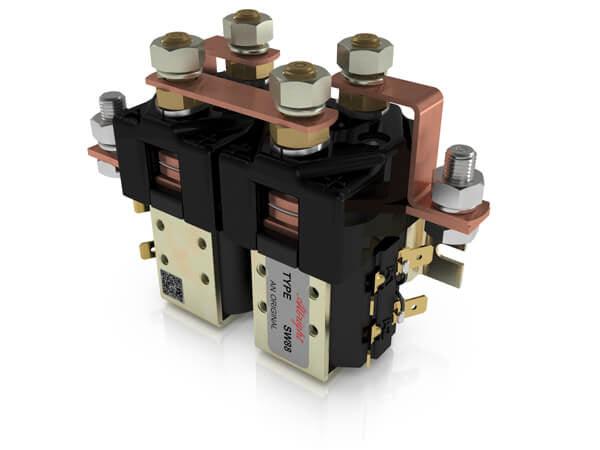

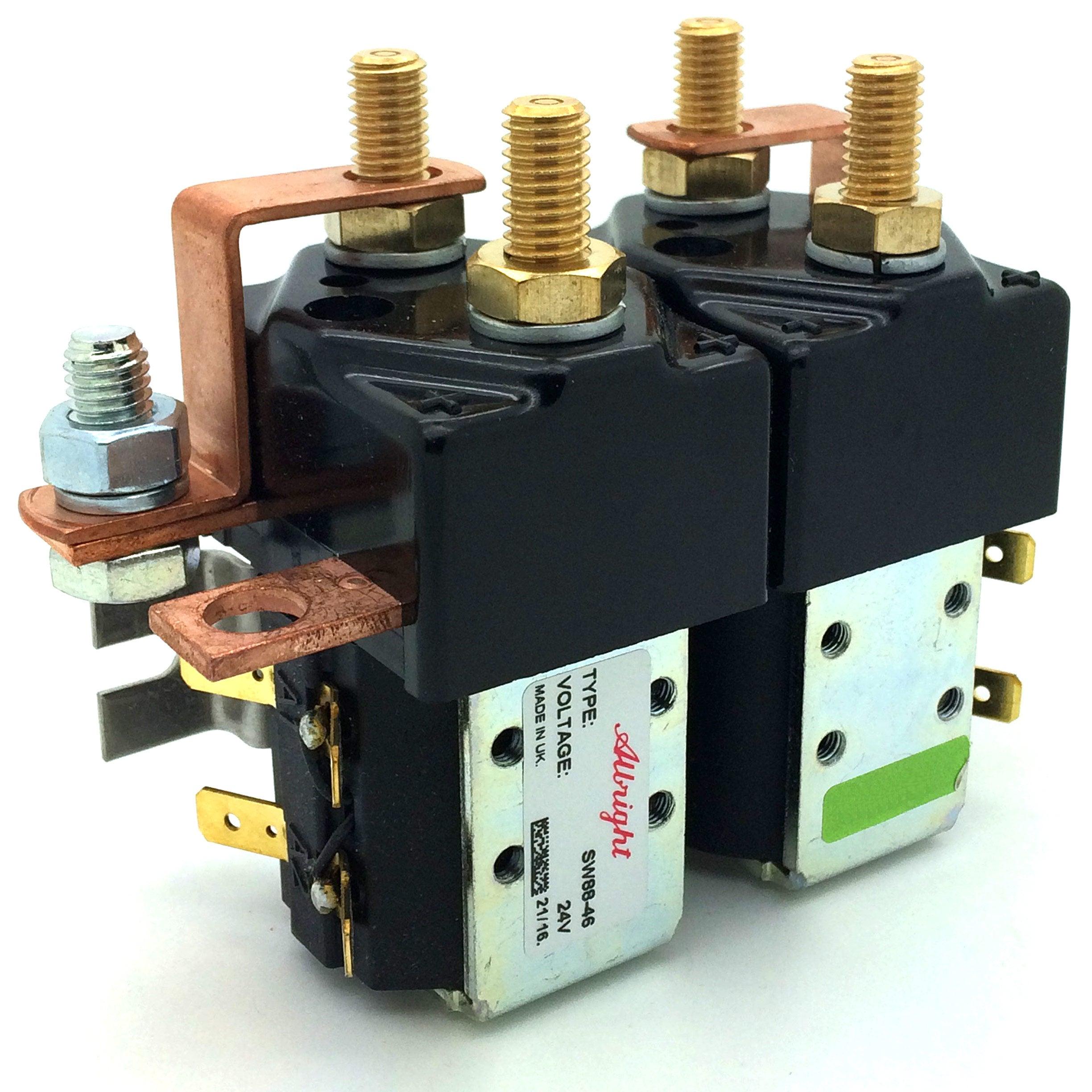

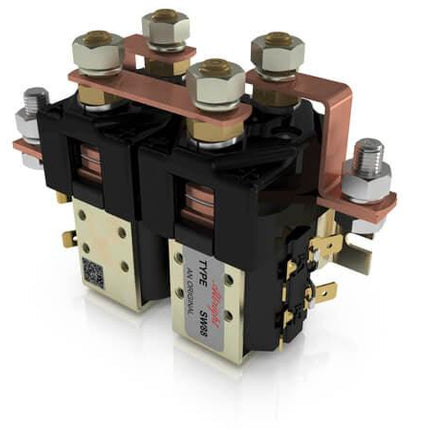

Name: SW88-46 Albright Double Acting Reversing Solenoid 24V – Intermittent Duty
Brand: Albright
SKU: 101-SW88-46
Price: 99.0 EUR
Availability: InStock

SW88-46 Albright Double Acting Reversing Solenoid 24V – Intermittent Duty

Albright
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

SW88-46 Albright Double Acting Reversing Solenoid 24V – Intermittent Duty

Albright
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

ALBRIGHT SW88-46 24V DC INT About the Intermittent SW88-46 Reversing Contactors Intermittent contactors by design are predominantly used for hydraulic... Read more

€128,70 €99,00 Excl. VAT

Guaranteed secure & safe checkout.

Shipped today? Order within: Jun 20, 2026 12:00:00 +0300

Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP

30 days hassle-free returns

Flexible payments

Easily pay with multiple payment options.
Read more

Description

ALBRIGHT SW88-46 24V DC INT

About the Intermittent SW88-46 Reversing Contactors

Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods. The SW88 is a configuration of two SW84 type contactors on a common bracket for the motor reversing. The SW88 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing, and have excellent conductivity.

The SW88 main contact circuit, designed for XQmotor reversing, is such that it has a built-in failsafe, so that if both coils are energized simultaneously the contact arrangement is open circuits. The SW88 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using the supplied bracket, mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Specifications

Manuafacturer: Albright
Condition: New
