Description

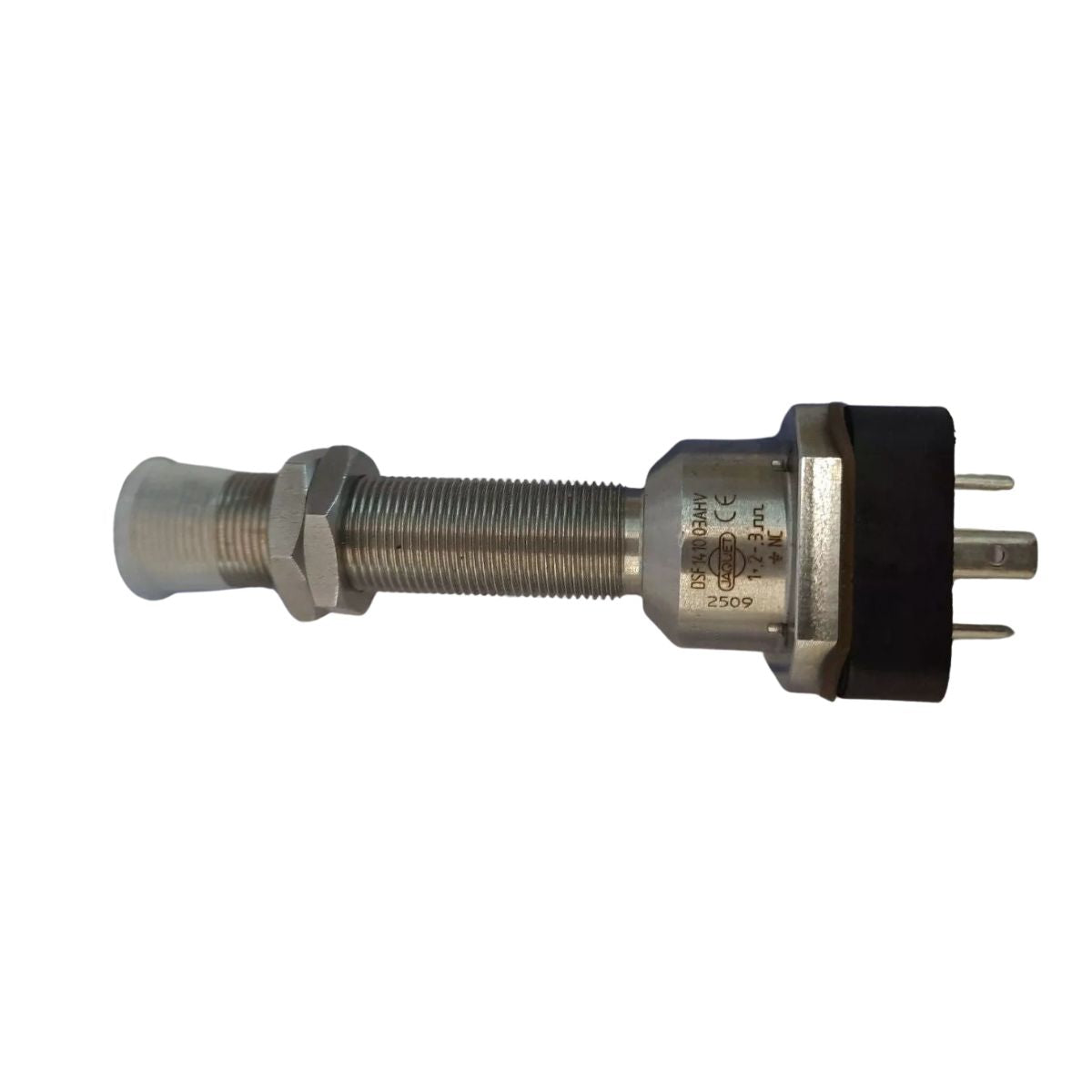

Jaquet Speed Sensor DSF 1410.03 AHV

MPN: 374Z-04400

Product Overview

The TE / Jaquet DSF 1410.03 AHV is a single-channel Hall Effect speed sensor designed to deliver precise and reliable measurement of rotational speed. Engineered for harsh industrial and transportation environments, it generates square wave signals proportional to rotary speed when used with a pole wheel.

Its robust stainless-steel housing, EMC protection, and high shock/vibration resistance make it a trusted solution for rail vehicles, turbines, heavy machinery, and power generation systems.

Key Features

• Type: Single-channel Hall Effect speed sensor

• Signal output: Square wave, push-pull, DC-coupled

• Frequency range: 0.05 Hz to 20 kHz

• Supply voltage: 10 V to 30 V (protected against transients & reverse polarity)

• Current consumption: Max. 16 mA (without load)

• Output drive: ±20 mA, short-circuit and reverse polarity protected

• Housing material: Stainless steel 1.4305, hermetically sealed front face

• Connector: Jaquet 820P-36090 (Hirschmann GSA 3000, IP65)

Technical Specifications

• Protection class:

  • Sensor head: IP68

  • Connector: IP65 (820P-36090)



• Operating temperature:

  • Version H: –40 °C to +125 °C



• Mechanical resistance:

  • Vibration: 5 g (5 … 2000 Hz)

  • Shock: 50 g for 20 ms, half sine



• Pole wheel requirements:

  • Tooth width ≥ 10 mm

  • Side offset < 0.2 mm

  • Eccentricity < 0.2 mm

  • Air gap: 0.2 … 4.5 mm (depending on module)



• Electrical insulation: 500 V / 50 Hz / 1 min (galvanic separation)

• MTTF (Mean Time To Failure): 3,177,000 hours @ 60 °C

• Failure rate: 314.8 FIT

Benefits

• High accuracy at very low speeds (down to 0.05 Hz)

• Maintenance-free, potted electronics in chemical-resistant resin

• Resistant to oil, grease, dust, salt mist, and moisture

• Certified by Germanischer Lloyd (GL Certificate 17332-00 HH)

• Easy installation and alignment, orientation-independent

Typical Applications

• Rail vehicle traction control & monitoring

• Industrial engines & turbines

• Power generation systems

• Heavy-duty machinery & transportation equipment

Ordering Information

• Part Number (MPN): 374Z-04400

• Designation: TE / Jaquet Speed Sensor DSF 1410.03 AHV

• Connector Type: Jaquet 820P-36090 (Hirschmann GSA 3000)

Specifications

• Manuafacturer: Jaquet
• Condition: New
