Description

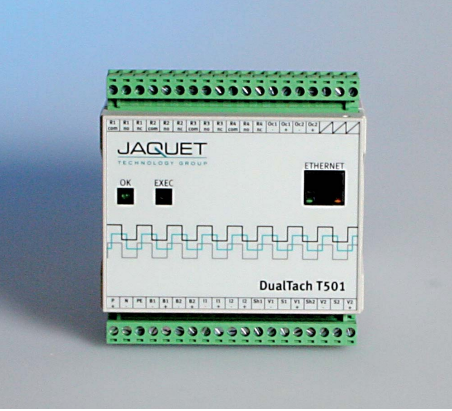

Jaquet 384Z-05601 (T501.10)

The Jaquet T501 (previously also T500) is a two-channel tachometer for demanding machine monitoring applications. The unit has a measuring range of 0.025 Hz to 50 kHz and gives a 4-20 mA output signal that can be configured via the supplied Windows software.

Input and output signals

• 2 frequency inputs (speed signals) and 2 binary inputs.
• 2 analog outputs, 2 open collector outputs and 4 relays.

Features

The T501 has programmable logic, diagnostic functions and measurement functions, a fast response time of 8 ms and contains 4 parameter sets with 6 system limits each for virtually unlimited applications.

Specifications

• Manuafacturer: Jaquet
• Condition: New
