Description

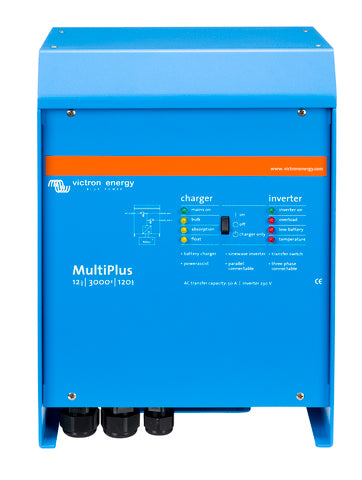

Victron Energy’s MultiPlus series of top-quality inverter/chargers deliver pure sine wave power, identical to what you get from the grid. This ensures that even sensitive and demanding devices operate smoothly without any issues. The integrated charger allows you to charge your battery system conveniently, eliminating the need for separate battery chargers.

Victron Energy’s inverter/chargers are perfect for use in cottages, boats, and vehicles. They can also be used as UPS devices to provide backup power during outages. Thanks to their extremely low self-consumption, these inverter/chargers are also ideal for off-grid applications. When not in use, the device automatically enters a sleep mode, reducing its own power consumption to just a few watts. This feature is especially crucial during the autumn months when solar panel output tends to decrease.

With Victron Energy MultiPlus inverter/chargers, you can enjoy the convenience of all household appliances in your holiday home. A well-sized solar panel system can supply all the electricity needed from spring through fall. In late autumn and winter, power can be sourced from a generator or wind turbine. The inverter/charger includes a powerful battery charger that quickly charges the battery bank, for instance, using a generator. MultiPlus inverters deliver completely pure sine wave AC power. Additionally, these units can be connected in parallel, enabling 3-phase power output. The inverter/charger is also programmable for automatic start/stop operation.

Victron MultiPlus is also highly suitable for grid-connected applications where solar power is stored in batteries and used during the evening when the sun goes down. For example, an electric car could charge at home during the day using solar power, and at night, energy could be transferred from the home battery to the car, ensuring a full “tank” by morning. For this setup, the HUB-1 mode is used—more information on HUB-1 configuration is available from us at myynti@suomenakut.fi or on the Victron Energy website.

Technical Specifications (Inverter):

• 3000W continuous power

• True sine wave output

• Peak power: 6000W

• Voltage range (12V): 9.5 - 17V

• Efficiency: 93%

• Self-consumption: 15W

• Standby consumption: 4W

• Output voltage: 230 VAC ±2%, 50Hz ±0.1%

• Can connect up to six inverters in parallel

• 3-phase power capability

• Built-in cooling fan

• Programmable relay

• AC connection: Screw terminal 13mm² (6 AWG)

• DC connection: 4x M8 bolts

• Operating temperature range: -40 to +50 ºC

• Dimensions: 362 x 258 x 218mm

• Weight: 18kg

• IP21 rating

• Manufacturer: Victron Energy

Technical Specifications (Charger):

• AC input: 187 - 265VAC, 45 - 65Hz

• Max charging current: 120A (12V)

• Charging voltage: 14.4V (12V)

• Suitable for all battery types

• Battery temperature sensor

• Smart charging technology

Warranty:

• 5 Years

Specifications

• Manuafacturer: Victron
• Condition: New
