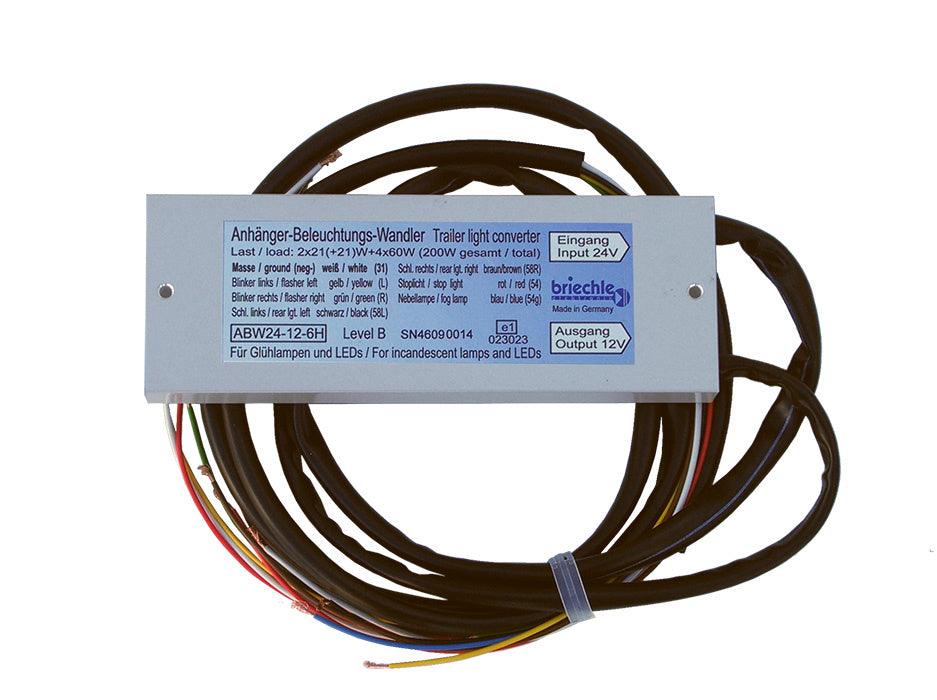

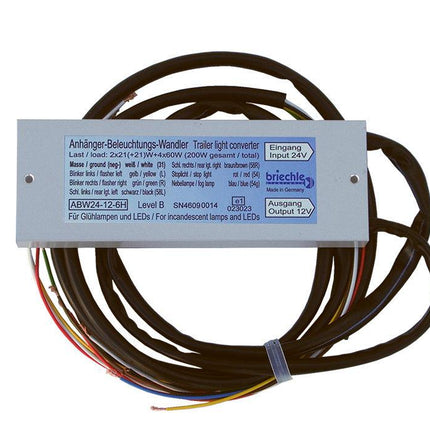

Briechle TRAILER LIGHT CONVERTER ABW 24-12-6H

Briechle TRAILER LIGHT CONVERTER ABW 24-12-6H

Product form

Converter to supply the lights of 12V trailers at a 24V car line. \nIncandescent lamps and suitable RMS compatible LEDs... Read more

€242,39  €213,30 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP
    • 30 days hassle-free returns
    Flexible payments

    Easily pay with multiple payment options.
    Read more

    Description

    Converter to supply the lights of 12V trailers at a 24V car line. \nIncandescent lamps and suitable RMS compatible LEDs can be operated. \nPlease ask the LED lamp manufacturer for RMS compatibility. For further \ndetails please see our handout “LED lamps in RMS operation”.


    ▪ IN: 24V / OUT: 12V
    ▪ Input: open cable end
    ▪ Output: open cable end

    \n\n \n
    \n \n Weight: 0.96 kg\n \n

    \n
    • quick and simple to connect:
      - at rear lamps of car-like equipment
      - parallel to 24V socket
      - instead of 24V socket
    • the function of C2-indicator-lamps of all flasher units is guaranteed
    • works well with lamp-control-units
    • correct function of ABS-info-module is guaranteed
    • solid casting - waterproof and shockproof
    • internal short circuit and overload protection
    • power reserves in case of additional lamps at the trailer
    \n

    \n \n \n \n\n \n \n


    \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
    Input\n voltage:24V DC nominal (18 ... 33V)
    Output voltage:RMS power equation for 12V (9 ... 15.5V)
    Output power:2 x 21W + 4 x 60W
    Connection input:open cable end
    Connection output:open cable end
    Cable length input:app. 100cm
    Cable length output:app. 120cm
    Current without load:0mA with open output (no current)
    Efficiency:flasher unit c. 90%, other units c. 95%
    Temperature range:-40 ... +75°C
    Electrical protection:overload current (self-resetting) overtemperature\n (self-resetting)
    Mechanical protection:entirely sealed
    Dimensions:200 x 70 x 25mm without cable outlet
    Mass:app. 950g
    Attention:for bulbs and RMS - LEDs only!


    Specifications

    • Manuafacturer: Briechle Elektronik
    • Condition: New
