Reliable Hall-Effect Speed Sensor for Hazardous Environments
The Jaquet FTG 1088.00 Ex (MPN: 343Z-03772) is a rugged, ATEX-approved Hall-effect speed sensor designed for non-contact rotary speed detection in explosive environments. With a wide frequency range and robust mechanical design, it is ideal for industrial applications such as power generation, oil & gas, and process automation.
Key Features:
Certified for Hazardous Zones: ATEX-certified (II 1G / II 1D) for use in gas and dust explosion-risk environments
Output Signal: Square wave signal, proportional to rotational speed (5 Hz to 20 kHz)
Electrical Specs: 5V ±10% power supply (max. 12V), 25 mA sink current, reverse polarity protected
Connection: 400 mm twisted Teflon-insulated open wire
Housing: Argentan (CuNi10Zn42Pb), hermetically sealed, potted electronics for long-term stability
Environmental Resistance: IP68 sensor head, IP67 cable exit, shock resistance 20 g, vibration 3 g
Operating Temp: -40°C to +125°C
Jaquet FTG 1088.00 Ex Speed Sensor (343Z-03772) – ATEX Certified, 400 mm Open Wire
This sensor works with a ferromagnetic pole wheel (module ≥0.5) and supports air gaps up to 1.3 mm depending on wheel geometry. Its differential Hall sensor design ensures high immunity to electromagnetic interference, delivering clean and reliable pulse output even in harsh conditions.
Jaquet FTG 1088.00 Ex-KTV-B Speed Sensor (343Z-05108) – ATEX Approved
The DSD 1005.00 xTV (FTG 1088.xx) is designed with a dynamic behavior that ensures pulse generation even at a frequency as low as 5 Hz.
High-Precision Speed Detection in Hazardous Environments
The Jaquet FTG 1088.00 Ex-KTV-B (MPN: 343Z-05108) is a ferrostat differential Hall-effect speed sensor engineered for reliable operation in explosive atmospheres (ATEX-certified). Designed for integration with ferromagnetic pole wheels, it delivers square wave outputs proportional to rotary speed—even down to 5 Hz.
Built with robust Argentan, also called German Silver (CuNi10Zn42Pb) housing and IP68/IP67 protection ratings, this sensor excels in demanding industrial conditions. It features:
Explosion Protection: Certified for Zone 0/20 (II 1G / II 1D)
Operating Range: 5 Hz to 20 kHz frequency detection
Output Signal: Square wave with 1:1 mark-space ratio
Power Supply: 5V ±10%, max 12V, reverse polarity protected
Temperature Range: -40 to +125°C
Vibration/Shock Resistance: 3g (4–100 Hz), 20g (11 ms)
The sensor includes a Teflon-insulated open wire connection and weighs just 20 grams. Ideal for industries requiring non-contact speed measurement in hazardous zones such as oil & gas, chemical, or heavy machinery sectors.
Cable/Lace Length: 0.130 m (130 mm)Connection: Terminal block
JAQUET 385Z-05333 Differential Sensor
Features:
Differential Hall-Effect Sensor
Smooth Flange Mount (Model D12A)
Protection Class: IP67
Mounting Thread: M12 x 1
Connection: 4-pin M12 x 1 Connector (Model D12A)
Smooth Flange Mount, 25mm Shaft, 4-pin M12x1 Connector
There is also D12P -version of this sensor available.D12P is same as D12A, but D12P does have:
Stainless Steel Housing (Model D12P)
Connection: 24 AWG PTFE-Insulated Leads (Model D12P)
D12 Specifications
• Type: Hall Effect• Max Frequency: 20 kHz• Mounting: 10.8 mm OD flange• Connection: M12x1• Temperature Range: -40 °C to 125 °C

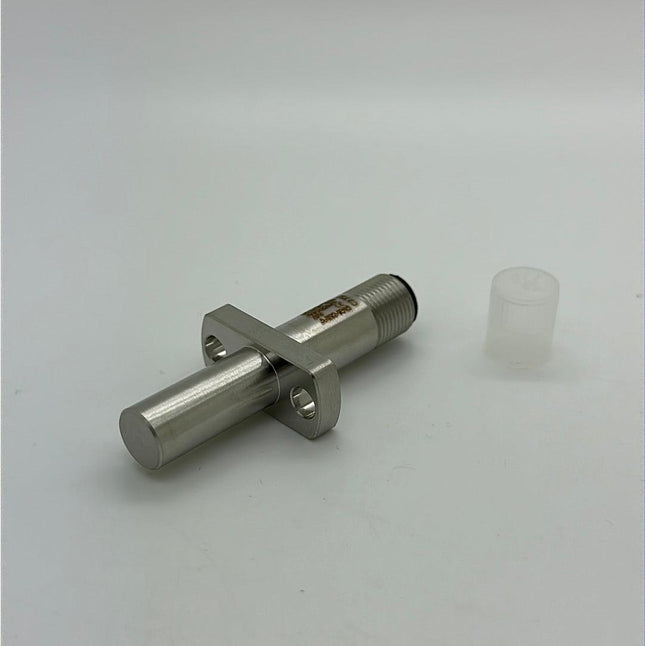

Jaquet DSD 1205.21 ATV (378Z-04760) Ferrostat Speed Sensor
The Jaquet Speed Sensor DSD 1205.21 ATV, with the model number 378Z-04760, is available for purchase. This sensor is a part of Jaquet's product line, known for its precision and quality in measuring speeds. The item is available for international shipping, typically within 1-3 business days for stock items. For more detailed information, including pricing and specific features of this sensor, please ask us for the latest datasheet & drawing of this sensor.
Key Features of DSD 1205.21 ATV (378Z-04760) :
High Performance: Engineered to deliver exceptional results.
Durable Construction: Built with high-quality materials for long-lasting use.
Innovative Design: Incorporates the latest technology for enhanced efficiency.
Cost-Effective: Offers great value for money with competitive pricing.
The DSD 1805.60 AHV is crafted to deliver high durability and efficiency across a wide range of applications. Its robust construction and advanced features make it an ideal choice for demanding professional use.
Key Features of DSD 1805.60 AHV:
High Performance: Engineered to deliver exceptional results
Durable Construction: Built with high-quality materials for long-lasting use
Innovative Design: Incorporates the latest technology for enhanced efficiency
The Jaquet DSD 1810.01 PHW is a differential Hall-effect speed sensor, optimized for both static and dynamic applications. Encased in an M18x1 housing, it detects modules as small as 1.0. Equipped with a durable 0.825m integral cable, it offers phase-shifted quadrature signal outputs and operates reliably in temperatures ranging from -40°C to +125°C.
Features
M18x1 housing
Module 1.0 is the smallest structure which can be detected
Integral cable terminated with a connector (pig tail)
High temperature -40..+125°C (or higher)
Quadratur signal (2 phase shifted output signals)
0,825m cable
JAQUET 304Z-03355 FTG 160 SH
Check Current lead time from sales. If you place an order for this item we will contact you in any case to confirm the delivery date and we have options to lock or cancel &refund the order.
Technical Information
• Manufacturer: Jaquet
• Part Number: DSE 0603.00 SHZ (0.2m) / J304Z-03355
• Description: Speed Sensor
• Technical Specification: Cable length (L) = 230 mm
