SW200-22 12 volt DC coil with intermittent coil operation, these contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW200 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW200 is suitable for switching Resistive, Capacitive and Inductive loads.
The SW200 features single pole single throw, double-breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW200 has M10 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets - supplied as separate items). Mounting can be horizontal or vertical, when vertical the M10 contact studs should point upwards.

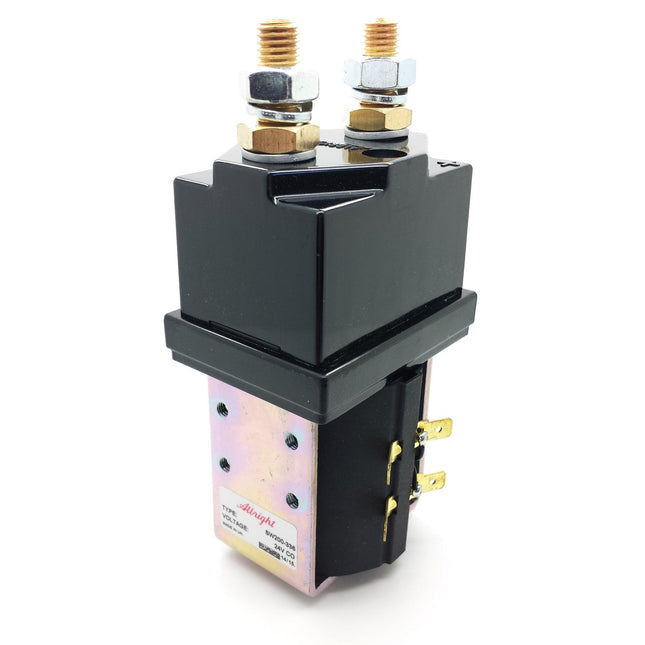

Genuine SW200-336 ALBRIGHT 24V 250A CO DC - COntactor. The SW200-336, a SW200 series of contactor is designed for direct current loads. SW200 have double breaking main contacts with silver alloy tips. Contact tips are weld resistant, extremely hard wearinga
Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.The SW200 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW200 is suitable for switching Resistive, Capacitive, and Inductive loads. The SW200 features single pole single throw, double-breaking main contacts with silver alloy tips, which are weld resistant, hardwearing, and have excellent conductivity. The SW200 has M10 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets - supplied as separate items). Mounting can be horizontal or vertical, when vertical the M10 contact studs should point upwards.

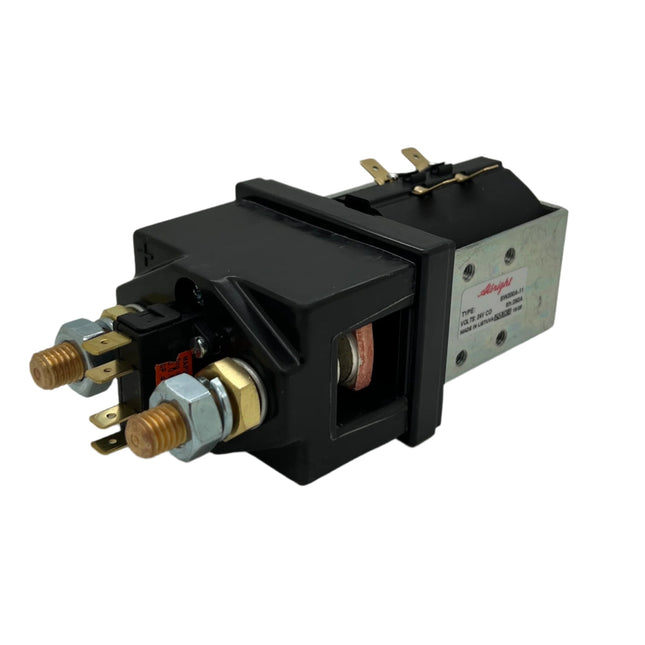

Albright SW200A-11, 24 Volts DC 400 Amps single-acting contactor with magnetic blowouts and an auxiliary microswitch, continuous type coil is suitable for "main power" applications where on/off periods are long or always on.
Genuine SW200A-11 is Albright 24V 250A CO DC-type contactor. The SW200A-11 is a SW200 series of contactor is designed for direct current loads. SW200 have double breaking main contacts with silver alloy tips. Contact tips are weld resistant, extremely hard wearing.
This is equipped with Auxiliary contacts on the top.

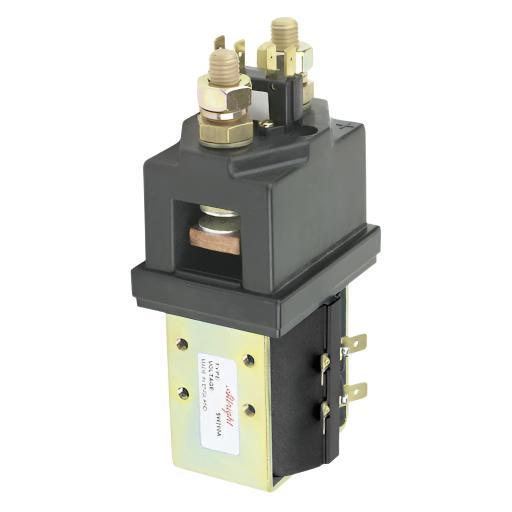

SW200A-14 Albright 250A/400A 48V INT 1-pole 1-throw Contactor
Product Overview: SW200A-14
The SW200A-14 by Albright is a high-performance 1-pole, 1-throw contactor designed for applications requiring reliable current switching in DC circuits. With a 48V DC operational voltage and capable of handling 250A continuous and 400A intermittent currents, this contactor is ideal for various industrial and automotive applications, such as electric vehicles, forklifts, and battery-powered systems.
Key Features
High Current Capacity: Supports 250A continuous and up to 400A intermittent operations, ensuring robust performance in demanding environments.
Durable Design: Equipped with silver-alloy tips on the contacts, providing excellent wear resistance and preventing welding during high-current switching operations.
Double-Break Contacts: Ensures reliable disconnection even under heavy loads, improving overall safety.
Single Pole, Single Throw (SPST): Simple, reliable control for switching in your circuit.
48V DC Operation: Suitable for various DC applications, especially in high-voltage electric vehicle or industrial setups.
Applications
Electric Vehicles
Material Handling Equipment (e.g., forklifts, cranes)
Battery Management Systems
Solar Power Inverters
Industrial Automation
Technical Specifications
Current Rating: 250A (continuous), 400A (intermittent)
Voltage Rating: 48V DC
Contact Type: 1-pole, 1-throw (SPST)
Contact Material: Silver alloy, double-breaking
Mounting: Versatile, with multiple orientation options for flexible installation.
Benefits
The SW200A-14 ensures high reliability and efficiency in applications where frequent switching under load is required. Its hard-wearing silver-alloy tips and double-break design make it a durable and safe choice, providing peace of mind in your DC power control systems.
Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The SW200 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW200 is suitable for switching Resistive, Capacitive and Inductive loads.
The SW200 features single pole single throw, double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW200 has M10 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets - supplied as separate items). Mounting can be horizontal or vertical, when vertical the M10 contact studs should point upwards.
Magnetic Blowouts These contactors are fitted with magnetic blowouts across the contact gaps as standard. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.About Intermittent - INT) SW201-241 Solenoids Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods. The SW201 has M10 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or mounting brackets purchased as separate items. Mounting can be horizontal or vertical, when vertical the M10 contact studs should point upwards. Please note Normally Closed contacts are not suited to make and break load.
Interrupted current - opening and closing on load with frequent switching - results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements - maintains a lower contact resistance).

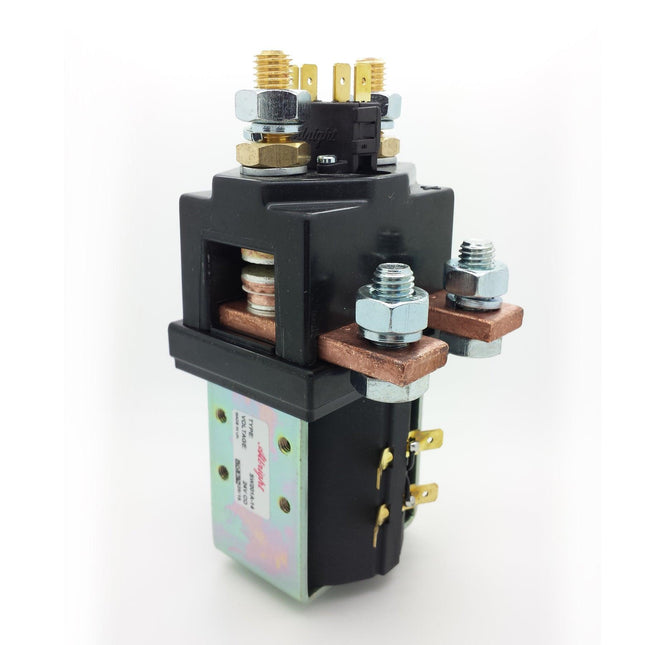

Albright SW201A-14 24V DC CO
Genuine SW201A-14 Albright 24V Single Pole Double Throw Contactor. The SW201A-14, an SW201 series of contactors with - (A) auxiliary contacts fitted, has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks.
Coil type: Continuous energization

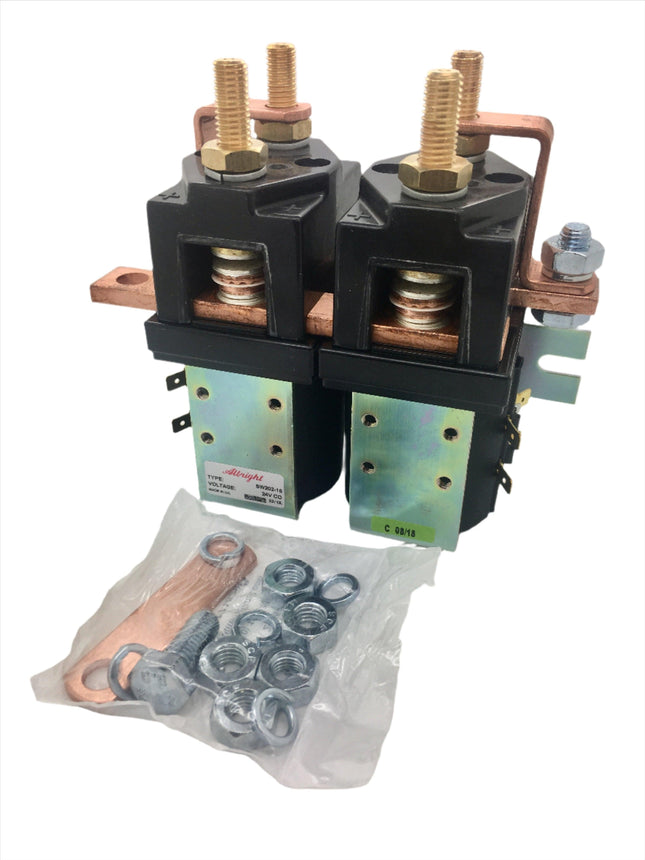

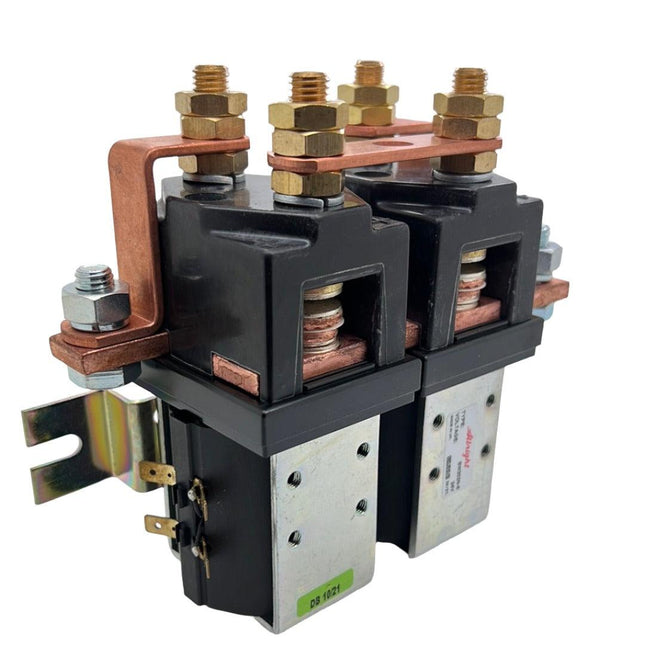

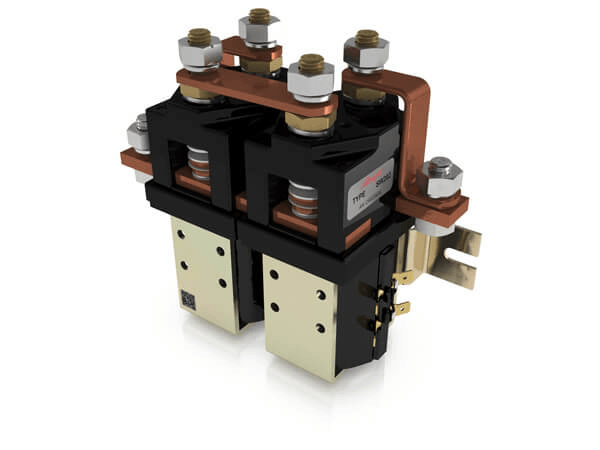

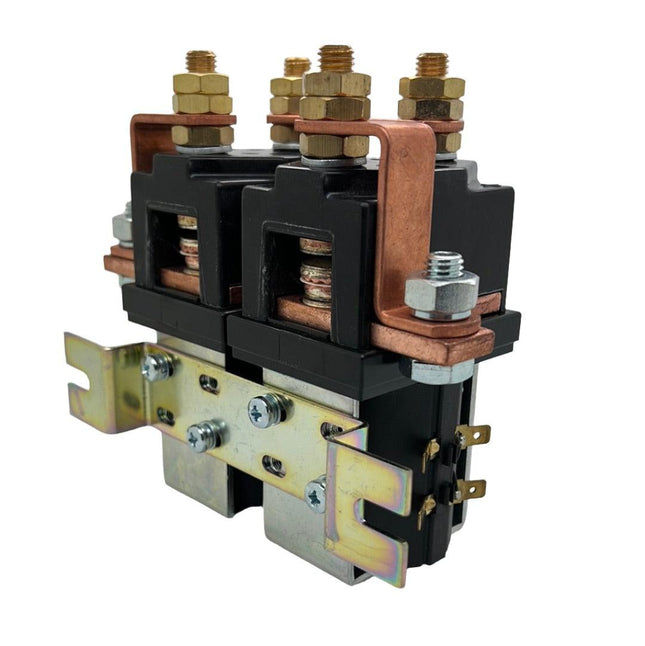

About the Continuous SW202-60 Reversing Contactors
Continuous contactors by design are predominantly for drive functions on vehicles; they switch slower than intermittent solenoids and are recommended for prolonged contact periods.
The SW202 is a configuration of two 'Single Pole, Double Throw' type contactors on a common bracket for motor reversing. The SW202 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity.
The SW202 main contact circuit, designed for motor reversing, is such that it has a built-in failsafe, so that if both coils are energized simultaneously the contact arrangement is open circuits.
The SW202 has M10 stud main terminals and 6.3mm spade coil connections. Mounted using the supplied bracket, mounting of the solenoids can be horizontal or vertical, when vertical the M10 contact studs should point upwards.
Interrupted current - opening and closing on load with frequent switching - results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements - maintains a lower contact resistance).
Magnetic Blowouts (normally noted ad B, but these SW200/SW202-series have B as standard)
These contactors are fitted with magnetic blowouts across contact gaps as standard. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.

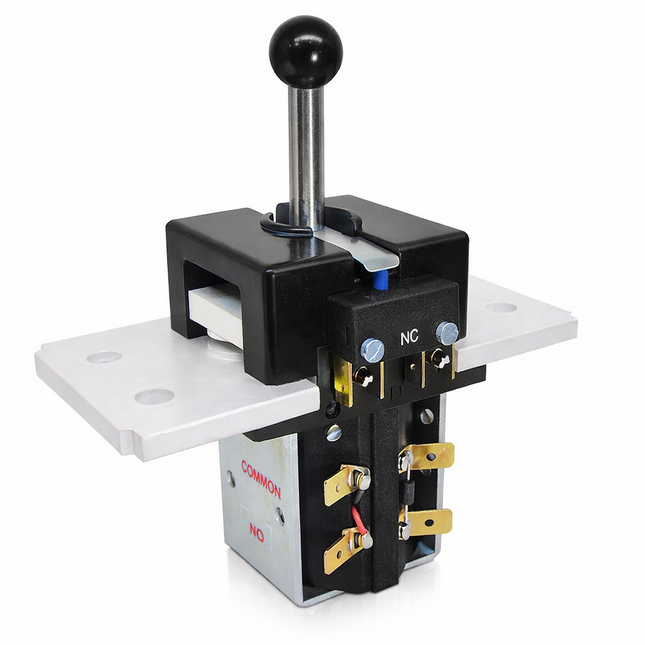

Albright SW560A-38M 24V Magnetically Latched Contactor (INT.)
Albright International SW560A-38M is a 24 Volt single-pole, single-throw (SPST)
magnetically latched solenoid contactor, intermittent rated, supplied with auxiliary microswitch.
The SW560A is designed for telecommunications and power distribution applications
where an uninterrupted current load is switched. These contactors are primarily
intended for Direct Current (DC) loads but may also be used with Alternating Current (AC).
Key Features
24V coil voltage
Single-pole, single-throw (SPST)
Magnetically latched design
Intermittent duty (INT.)
Auxiliary microswitch fitted
Double-breaking main contacts
Silver-alloy contact tips – weld-resistant and high conductivity
Silver-plated main contacts (standard)
Special operating knob and extension fitted
Yellow warning label fitted
About Intermittent (INT.) SW560A Solenoids
Intermittent contactors are typically used for hydraulic functions on vehicles.
They make and break faster than continuous duty solenoids and are not recommended
for prolonged contact periods.
Magnetic Latching Function
The contact position is secured using a permanent magnet within the assembly.
The coil requires a pulse to close the contacts and a reverse-polarity pulse
to open them. Once operated, the contactor remains in its last energised state
without requiring continuous power.
Please note: magnetically latched contactors are not failsafe devices.
Mounting Information
The SW560A is a compact contactor that can be busbar-mounted vertically or horizontally.
If mounted vertically, the coil should be positioned at the bottom.
Auxiliary Microswitch
This version includes an auxiliary microswitch mounted on the top cover.
The auxiliary contact connection is triggered by coil energising.
Uninterrupted Current Applications
Suitable for applications with no or infrequent load switching requirements,
helping to maintain lower contact resistance over time.
Associated Parts (Recommended)
2155-165 Vertical mounting bracket (2 pcs recommended)
2065-167A Horizontal mounting bracket kit (1 pc recommended)
Technical Specifications
Device Type: NO – SP – ST Latching
Voltage: 24V D.C.
Coil Type: Intermittent
Thermal Current Rating: 600A
Application: Uninterrupted
Guideline Weight: 1.1 kg
Operating Ambient Temperature: -40°C to +60°C
Coil Data
Coil Resistance: 17 Ω
Pull-In Voltage: 17.0V (Maximum)
Drop-Out Voltage: 17.0V (Maximum)
Coil Power Dissipation: 33.88 W
Typical Pull-In Time: 30 ms
Electrical Performance
Voltage Drop per Pole (New Contacts at 600A): < 50 mV
Intermittent Current Rating
30% Duty: 1095A
40% Duty: 950A
50% Duty: 850A
60% Duty: 775A
70% Duty: 715A

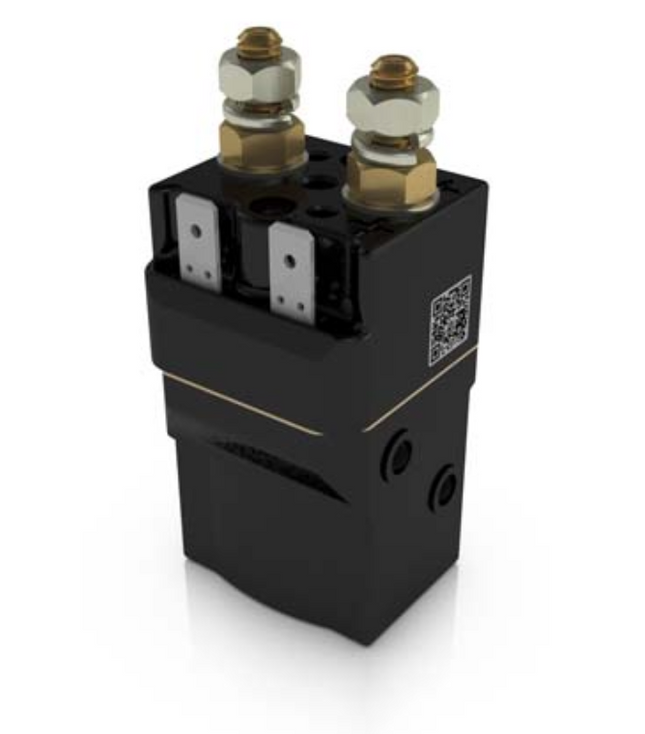

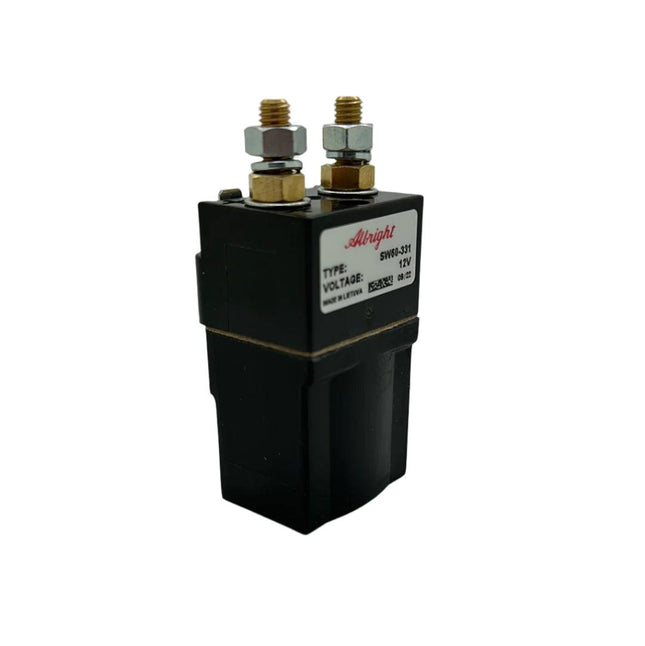

12V 80A Intermittent SW60 solenoid relay
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW60 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets - supplied as separate items). Mounting can be on the side or base of the contactor.
About Intermittent - Int.) SW60 Solenoids Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods. Magnetic Latching: Contact position is secured with the use of a permanent magnet within the coil assembly. The coil requires a pulse to close the contacts, and a reverse polarity pulse to operate the armature and open the contacts, but otherwise remains in the last energised state without the need for power. It should be noted therefore these are not failsafe. The SW60 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets - supplied as separate items). Mounting can be on the side or base of the contactor.
SW60-4 solenoid contactor for 24V DC -Continuous coil operation
About Continuous - CO SW60 Solenoids
Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The SW60 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets - supplied as separate items). Mounting can be on the side or base of the contactor.

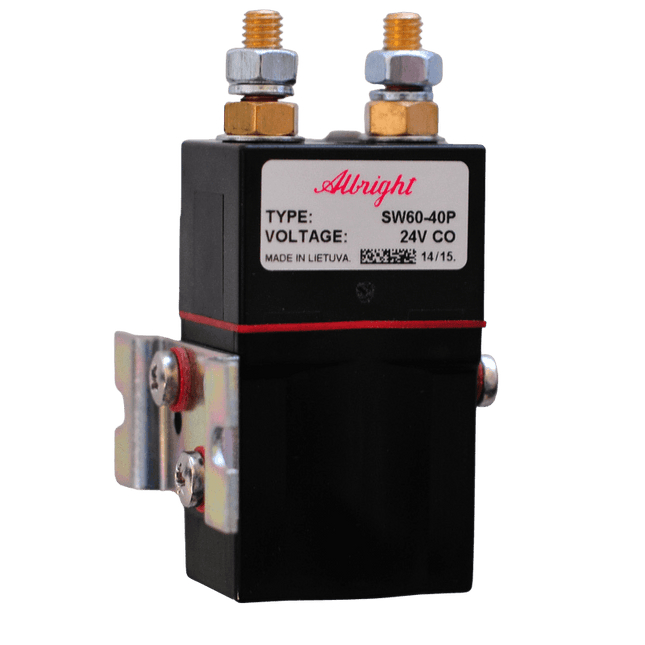

SW60-40P Albright 24V DC CO
Continuous contactors by design are predominantly for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The SW60-40P features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60P incorporates an enclosed top cover and offers environmental protection to IP66. The SW60P has M6 stud main terminals and 6.3mm spade coil connections.

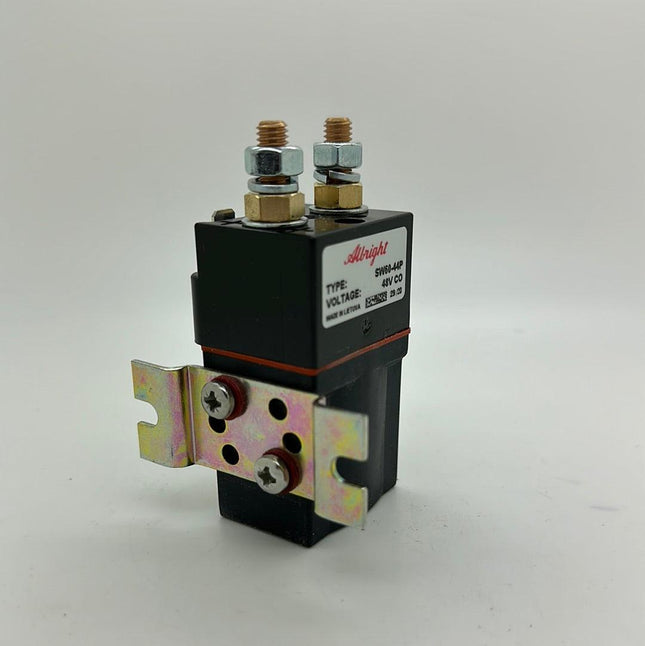

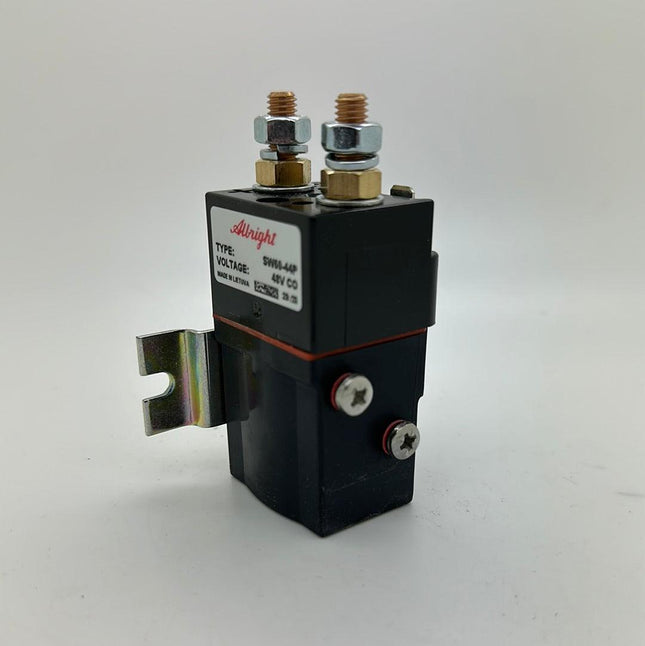

Type : SW60-44P
Coil Voltage (V) 48 CO DC
Coil Resistance (Ohms) 410
Pull In Voltage (V) 32.0 Maximum
Drop Out Voltage (V) 12.0 Maximum
Coil Power Dissipation (W) 5.62
Additional Features -
All figures above are stated at 20 degrees Celsius.
For the 3D picture I have attached an outline drawing 3060-400, if you require a 3D model in either STEP or IGES file format please inform us.
Genuine SW60B-514 ALBRIGHT 80V 80A CO DC - Contactor. The SW60B-514, a Albright SW60 series version equipped with magnetic blowouts - B) is a miniature series single pole contactor.
Manufacure year 2016, brand new fully functional

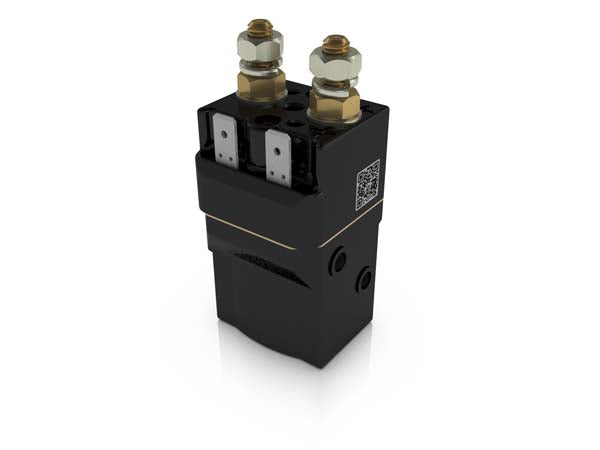

SW60A-22 – Technical Description
The SW60A-22 is a single-pole DC contactor engineered for dependable switching of medium-current DC loads. It is equipped with a 24 V DC continuous-duty (CO) coil, providing stable performance in applications where long energization periods are required.
This model includes auxiliary contacts, allowing easy implementation of status indication or interlock functions in control systems.
The contactor offers a cut-off (breaking) current rating of 80 A at 48 V DC, making it well-suited for battery-powered systems, mobility equipment, industrial machinery, and a wide range of DC power management applications.
As a core model in the SW60A series, the SW60A-22 provides a compact design and standard mounting footprint, ensuring compatibility with common DC systems and OEM installations. Same contactor with a bracket fitted here.
Key Features
Single-pole DC contactor for medium-current DC switching
24 V DC continuous-duty (CO) coil for stable long-term operation
Integrated auxiliary contacts for signalling or interlock logic
Cut-off current rating: 80 A at 48 V DC
Compact footprint suited for a variety of OEM and industrial applications
Reliable construction for battery, mobility, and DC power systems

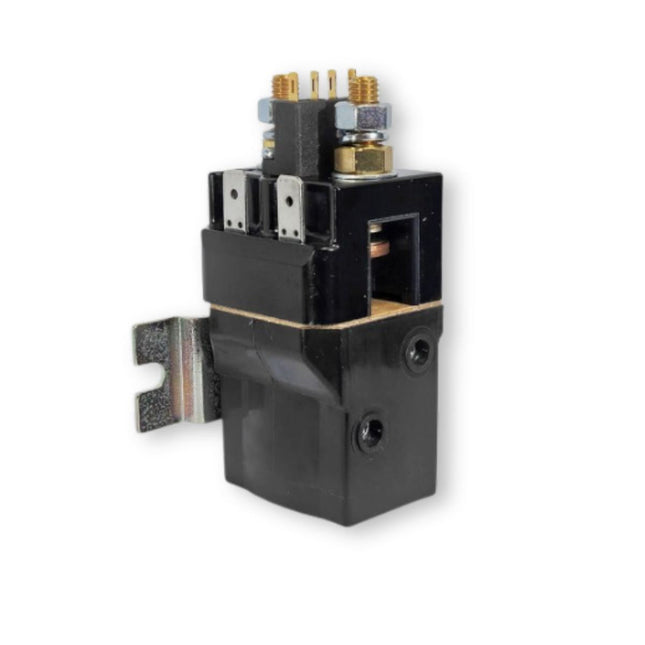

SW60A-232 – Technical Description
The SW60A-232 is a single-pole DC contactor designed for reliable switching of medium-current DC loads. It is equipped with a 24 V DC continuous-duty (CO) coil, ensuring stable performance in applications requiring long energization times.
This model includes auxiliary contacts for status signalling or interlock functions.
The contactor is rated for a cut-off (breaking) current of 80 A at 48 V DC, making it suitable for battery systems, mobility equipment, industrial controls, and other DC power applications.
Structurally, the SW60A-232 is based on the SW60A-22 contactor, with an added 3060-94 mounting bracket, providing extended compatibility for panel or frame installation.
Key Features
Single-pole DC contactor for medium-current applications
24 V DC continuous-duty (CO) coil for long energization periods
Integrated auxiliary contacts for signalling or interlock logic
Cut-off current rating: 80 A at 48 V DC
Based on SW60A-22 with added 3060-94 mounting bracket
Suitable for battery systems, mobility equipment and industrial controls
Magnetic Blowouts These open case contactors are of double break configuration and are fitted with magnetic blowouts - denoted by 'B' suffix in the SW60B range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts makes the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.About Continuous - CO.) SW60B Solenoids Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods. The SW60B features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60B has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets - supplied as separate items). Mounting can be on the side or base of the contactor.
