100A REMA RNK Emergency switch, with button. Designed and constructed to provide an operator with a safe and intuitive method to disable an electrically powered vehicle in case of an unexpected event.Old catalog code: 81260-11New catalog code: 108215
These REMA® emergency disconnect switches are designed and constructed to provide an operator with a safe and intuitive method to disable an electrically powered vehicle in case of an unexpected event. Simply pressing the red push button results in the immediate interruption of the electrical powerchain within the vehicle.

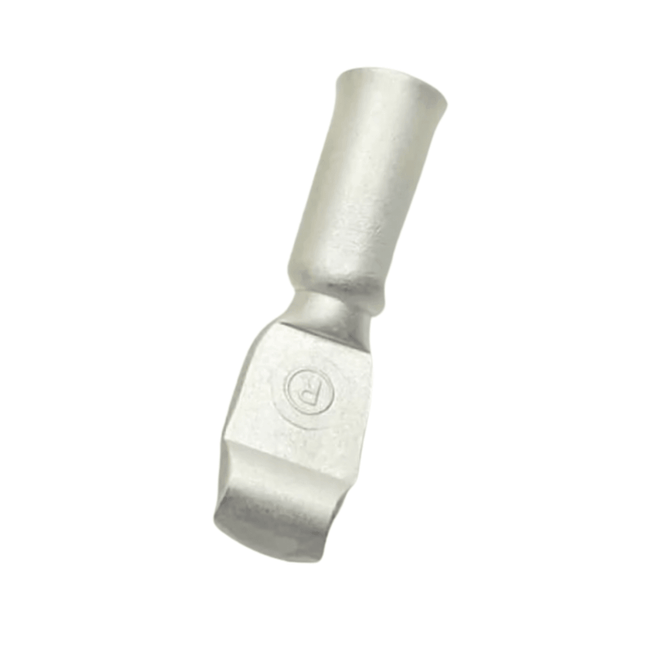

Single contact for REMA SR 350.
REMA SR 350 and Anderson SB 350 contacts (and housigns) are same form and same spec, therefore this contact will work with SB 350 housing also. DIY and repairs, workshop chargers you can use mixed, but for industrial applications and newbuilds: recommended to use with matching brand in first place.
Complete housing parts set, but does not include voltage coding pin shown in the producut image.All other parts of the housing are included1x Housing for socket2x cable clamp part2x screw for mounting the cable clamp1x lock partREMA OLD CODE: 9560011 / 95600-11 / 95600/11
Coding Pin for voltage coding, to be used with REMA Euro Battery (EBC) connectors.
Options are:
100020 REMA coding pin PLUG DIN 160/320/640 blue, Li-Ion-battery
or
100021 / 75057-95 REMA coding pin SOCKET DIN 160/320/640 blue, Li-Ion-battery
This auxiliary contact fits MRC 320, MRC 400/ DIN 640 socket/female/feminine/dose
Auxiliary contact for signal bypassing
1.5 mm² connection cross-section
Material: Electrolytic copper Cu-ETP in accordance with EN 13601
Silver-plated surface for ultimate connection
High electrical conductivity
Can be used with socket type REMA DIN MRC 320/400 and DIN 640 Ampere battery connectors. *MRC 400 is MRC 320 connector equipped with the RED coding pin mpn 109632
Same as 120748 which is the updated version of 103747
120748 will work as 103747 but the borehole on 120748 has more depth and therefore the insulation must be cut accordingly to solder the cable and contact.
120748 is the updated version of the old REMA catalog code 103747 / M9372071
Updated 120748 will work as 103747, but the borehole on 120748 has more depth and therefore the insulation must be cut accordingly to solder the cable and contact.
This is the updated version is this 120748
With locations in Germany, China and the USA, the REMA Group is one of the international technology leaders in the field of high-current contact systems. REMA develop and produce connector systems for charging electric vehicles, high-current connection materials and crimping tools as well as technologically advanced user interfaces with integrated electronics.
