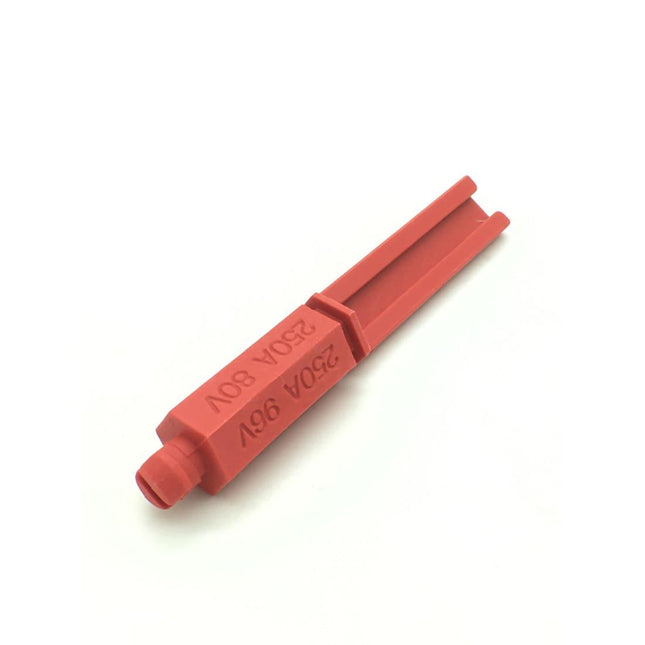

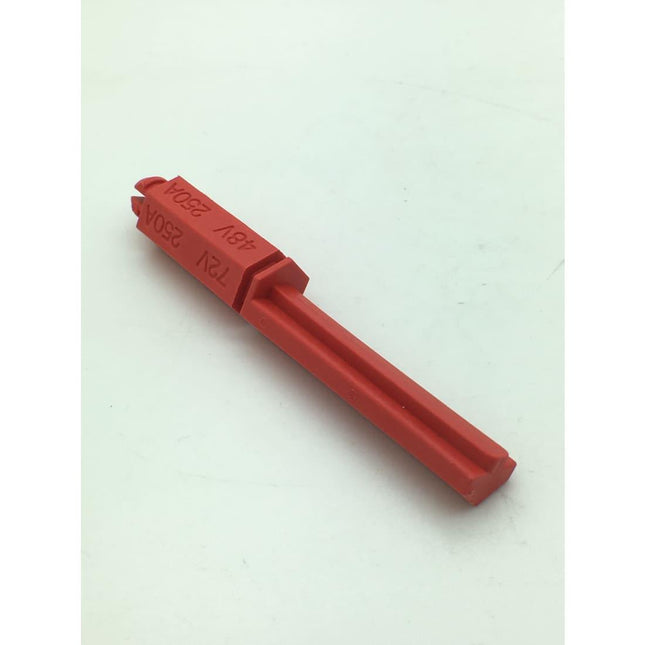

Coding Pin for voltage coding to be used with REMA Euro Battery (EBC) connectors. Will fit both 160 Amp and 320 Amp versions and suits male&female (plug & socket).
24V36V48V72V80V
Available for 50mm2, 70mm2 and 95mm2 cables
Standard European Version, Black, Polyamide housing (PA)
50mm2 = 7560101 DIN 320 A socket; grey coding70mm2 = 7560501 DIN 320 A socket; grey coding95mm2 = 7561001 DIN 320 A socket; grey coding
Sold without a handle, detachable handle types can be installed and replaced in case handle breaks. Please see available accessory for the product. Different types of detachable handles are available as accessory.
SOCKET = Female version, for the battery side
Product features and advantages
Specifically designed for the quick and opportunity charging of large battery capacities.
Suitable for lead gel accumulators and lithium-ion batteries.
Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring supported contact system for optimal contact pressure high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life

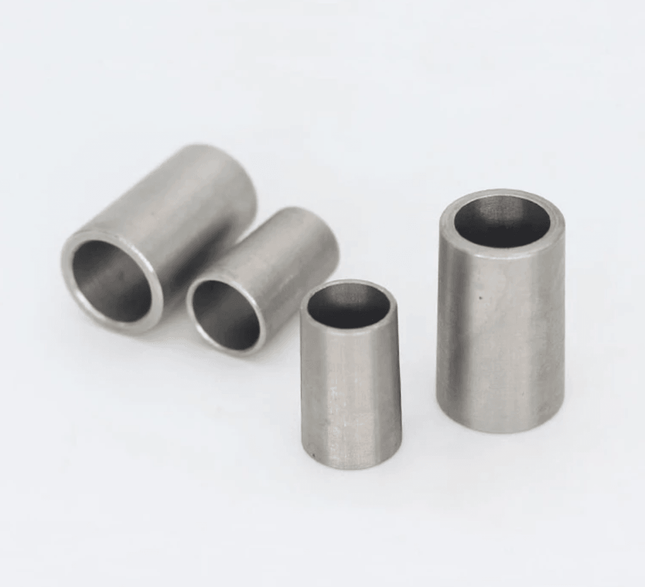

Durable because of shock resistant housing materialSuitable for cable sizes from 50 mm² to 95 mm² ( smaller doable with 100% fit reducing bushings, look for product page for accessories )
Direct crimping without reducing bushing for all cable size
Wide range of accessories different handle shapes available
Optionally you can fit with 1 pair of additional auxiliary and 1 pair of pilot contacts and cooling system with air supply through
Typical applications are forklift trucks battery charging systems sweeper and cleaning devices.
REMA DIN 320A Plug with contacts, lock part, coding pin and cable stress relief = cable clamp. Including grey coding pin for DRY battery.
Other coding pin options are: ( sold separately )
Green = Wet BatteryYellow = Wet&Dry Battery* No handle included, please add separate handle type if needed.* Plug without handle allows the handle to be changed upon damage very easily.
Product features and advantages:
Specifically designed for the quick and opportunity charging of large battery capacities
Suitable for lead gel accumulators and lithium-ion batteries
Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring supported contact system for optimal contact pressure high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life
Durable because of shock resistant housing material
Suitable for cable sizes 50 mm2, 70mm2 and 95 mm2
Direct crimping without reducing bushing for all cable size
Wide range of accessories
different handle shapes are available
connect a pair of additional auxiliary and/or a pair of pilot contacts
cooling system with air supply through
Typical applications
forklift trucks
battery charging systems sweeper and cleaning devices
RCC devices
Browse all REMA Connectors here

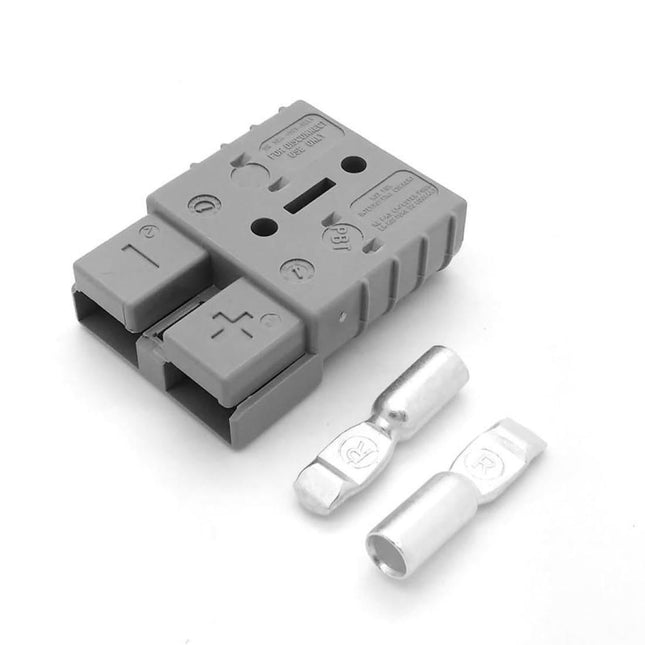

REMA 50 Amp connector with contacts.
Original REMA product manufactured in Germany. UL and REACH approved product mainly used at forklift and other electronic vehicle applications with battery connection.
Just select housing color and contac size. This connector is unisex ( no males or females, two of same color makes a connecting pair).
Color coding protects connecting to wrong voltages.
Color indication colors are (all are suitable for 600V/50 ampere)
24V = RED36V = GREY48V = BLUE

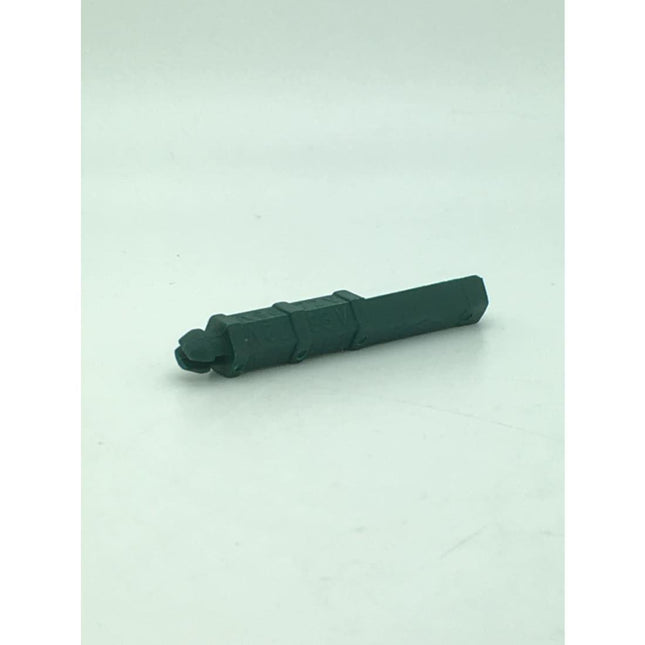

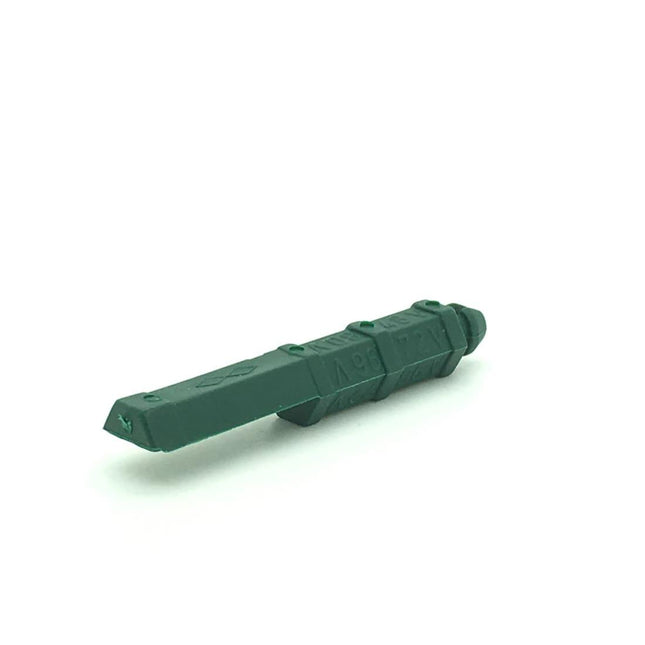

Fits REMA 80A EURO DIN black and dark grey housings. Both Socket and Plug uses this same coding pin for voltage coding
Green, Yellow and Grey options below. Standard is Grey.
REMA
REMA (old code)
Description
100072
75435-00
DIN 80 A coding pin grey (wet)
100075
75438-00
DIN 80 A coding pin green (dry)
100074
75436-00
DIN 80 A coding pin yellow (wet/ dry)

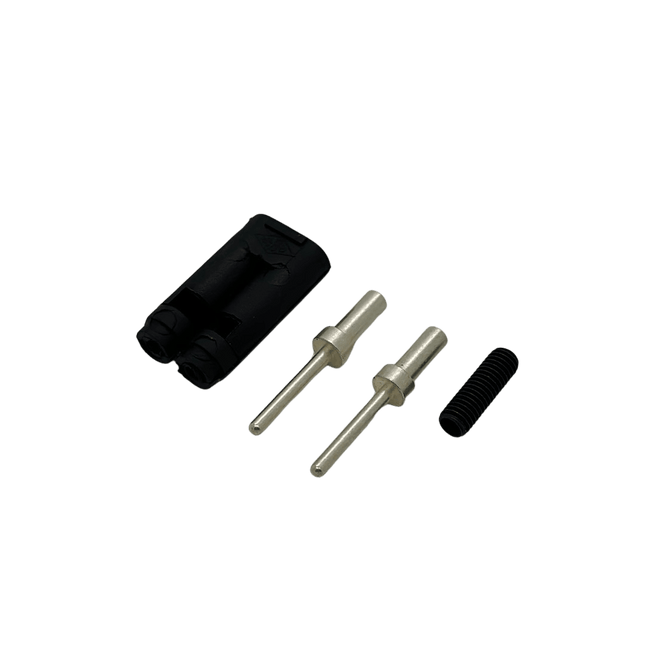

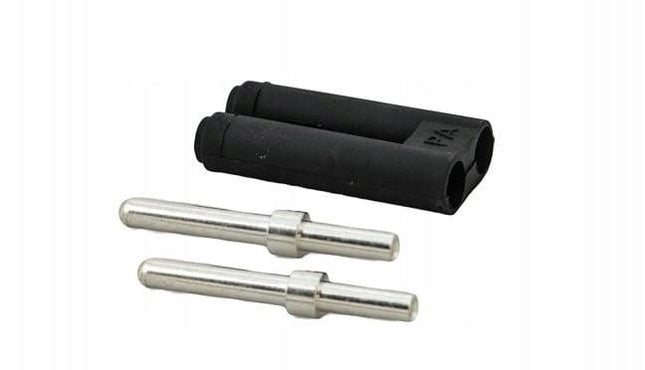

REMA 160A Plug = Male, EURO BATTERY Battery Connector Pilot contact set including 2 auxiliary contacts, plastic adapter part and screw to hold the lead wires in the middle of the cable clamp.
Pilot contact set for DIN 160 / MRC 160 plugs (fits both of these, MRC is the one with connector molded to the cable at the factory, DIN is the standard with crimp/solder contacts you can mount to any cable)
REMA 108610 (old catalog code 75070-03, 75070/03 printed on the zip bag) is including the following items: 2 pilot contacts 102640, 1 pilot adapter 100030 with plastic screw
Pilot Contact set for REMA 160A Socket = Female, including 2 auxiliary contacts and holder/adapter (+plastic screw to tighten the leads in the middle of the cable clamp on the connector.)
Rema 80A and 160A Plug = Male auxiliary contact. Includes one contact as shown in the picture.
Fits both 80A and 160A EBC EURO DIN Battery Connector plug
REMA catalog number 75070-02

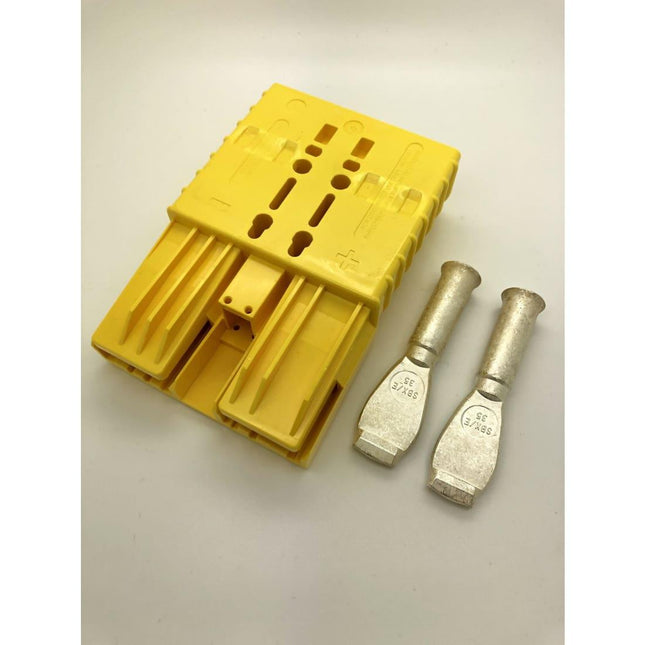

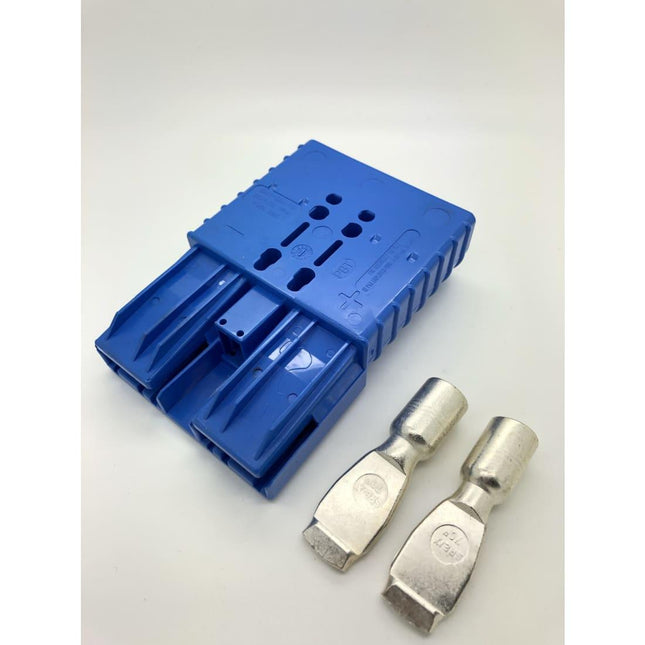

REMA SRE 320 multi-pole connectors feature a one-piece plastic housing and use stainless steel springs to hold low resistance contacts in place. All SRE 320 housings are chemical resistant and colour coded by the voltage to prevent mismatching of the power supply system.
RED will only connect with another REDBLUE will only connect with another BLUEand so on....
Metric contact sizes (50/7095mm2) does have short contact sleeveAmerican Wire Gauge contact size AWG 2/0 does have long contact sleeve
Rema Catalog Code
Type
Housing Color
Contacts Included
78340-00
SRE 320 complete
red
50 mm
78341-00
SRE 320 complete
red
70 mm
78342-00
SRE 320 complete
red
95 mm
78330-00
SRE 320 complete
grey
50 mm
78331-00
SRE 320 complete
grey
70 mm
78332-00
SRE 320 complete
grey
95 mm
78349-00
SRE 320 complete
black
50 mm
78350-00
SRE 320 complete
black
70 mm
78351-00
SRE 320 complete
black
95 mm
78335-00
SRE 320 complete
blue
50 mm
7833600
SRE 320 complete
blue
70 mm
78337-00
SRE 320 complete
blue
95 mm
78341-05
SRE 320 complete
red
AWG 2/0
78331-05
SRE 320 complete
grey
AWG 2/0
78350-05
SRE 320 complete
black
AWG 2/0
78336-05
SRE 320 complete
blue
AWG 2/0

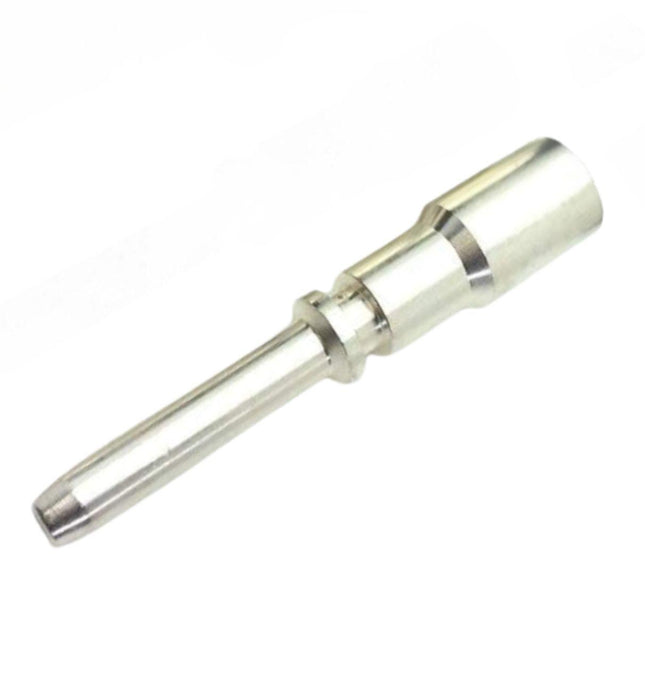

New Catalog no.
Old Catalog no.
Description
108739
7556001
DIN 320 A main contact 50 qmm for plug (1 pc.)
108743
7556501
DIN 320 A main contact 70 qmm for plug (1 pc.)
111105
7557001
DIN 320 A main contact 95 qmm for plug (1 pc.)

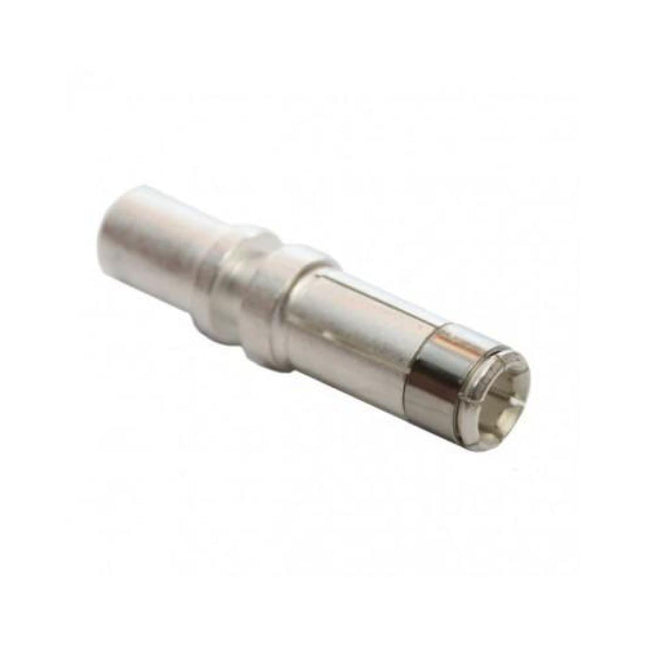

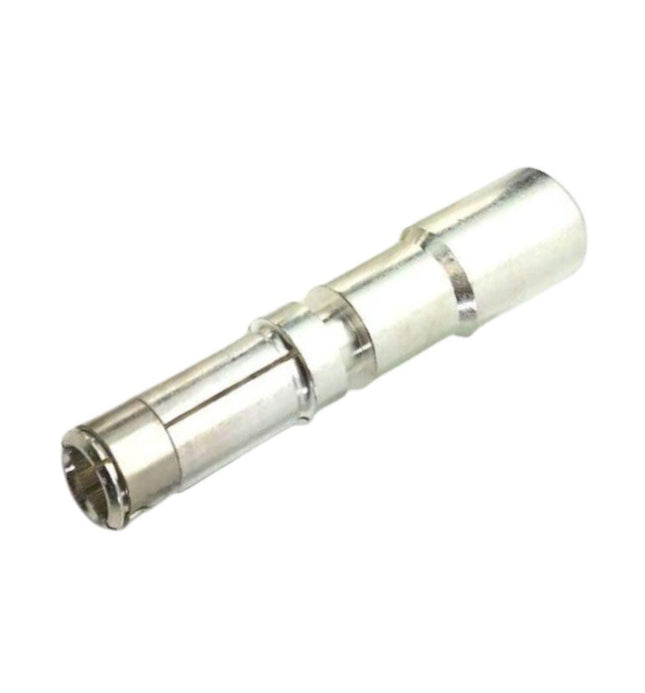

REMA DIN 320 spare contact (1pc) / single main contact: you need 2 pieces per one Socket.
New Catalog no.
Old Catalog no.
Description
108772
7566001
DIN 320 A main contact 50 qmm for socket (1 pc.)
108775
7566501
DIN 320 A main contact 70 qmm for socket (1 pc.)
108780
7567001
DIN 320 A main contact 95 qmm for socket (1 pc.)
Smallest handle type with 2 screws (bolt type). This handle is the short version and also straight ( not bent at all).Will fit in even in low space assembly locations.Fits PLUG (male) and also SOCKET (female)
Includes
1 x handle2 x screw for 160A EURO DIN2 x bolts

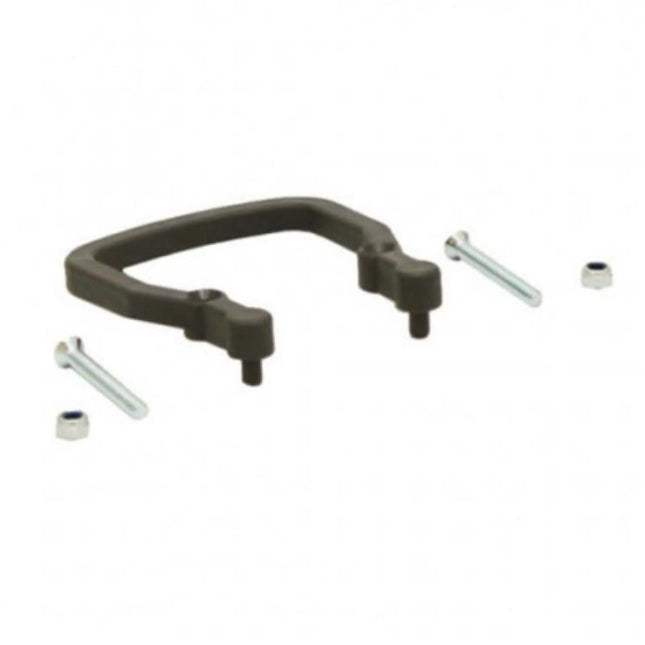

Smallest handle type with 2 screws (bolt type). This handle is the short version and also straight ( not bent at all).Will fit in even in low space assembly locations.Fits PLUG (male) and also SOCKET (female)
Includes
1 x handle2 x screw for 320A EURO DIN2 x bolts
100A REMA RNK Emergency switch, with button. Designed and constructed to provide an operator with a safe and intuitive method to disable an electrically powered vehicle in case of an unexpected event.Old catalog code: 81260-11New catalog code: 108215
These REMA® emergency disconnect switches are designed and constructed to provide an operator with a safe and intuitive method to disable an electrically powered vehicle in case of an unexpected event. Simply pressing the red push button results in the immediate interruption of the electrical powerchain within the vehicle.
With locations in Germany, China and the USA, the REMA Group is one of the international technology leaders in the field of high-current contact systems. REMA develop and produce connector systems for charging electric vehicles, high-current connection materials and crimping tools as well as technologically advanced user interfaces with integrated electronics.
