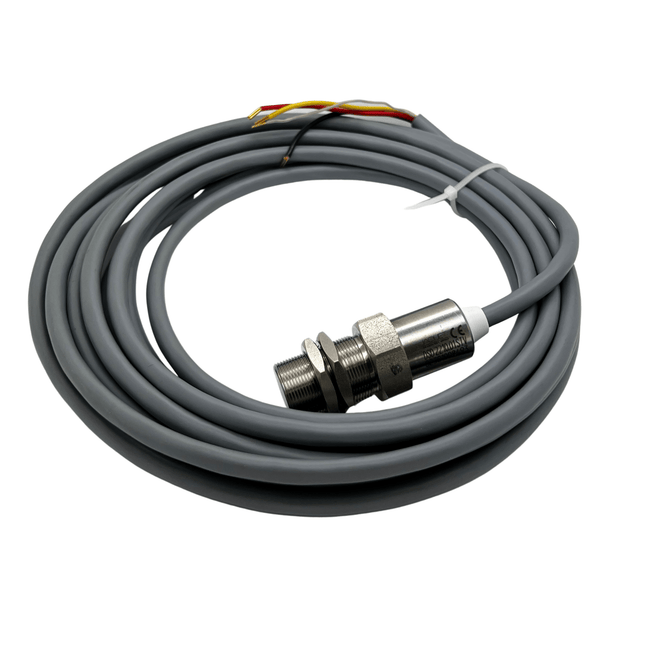

TE / Jaquet Speed Sensor – DSD 2210.01 STV (5 m)
MPN: 374Z-03750 · Series: DSD 2210.01 STV (5 m)
Type: Differential ferrostat Hall-effect sensor
The Jaquet DSD 2210.01 STV (5 m) is a high-reliability differential Hall-effect speed sensor designed for both static and dynamic detection of ferrous targets. It is particularly suited for applications where robust signal detection is required at zero and low speeds.
Key Features

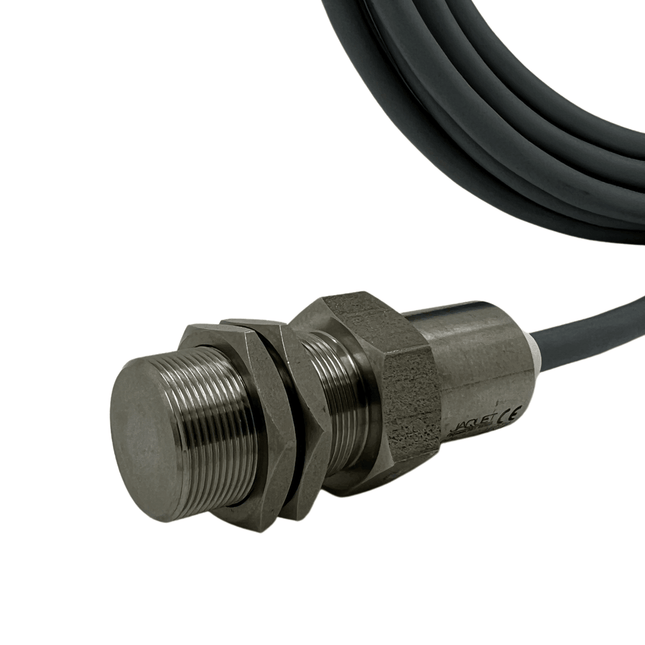

M22×1 threaded housing – durable metal construction for secure installation.
Module 1.0 detection capability – able to detect the smallest tooth structure with a 1.0 module pitch.
Integral 5 m PVC cable – open wire ends for flexible connection to control systems.
Wide operating range – works from –25 °C to +85 °C.
Push-Pull output – standard built-in line amplifier ensures strong, noise-immune signal transmission.
Differential ferrostat technology – improved resistance to vibration, EMI, and air gap variation compared to single Hall sensors.
Applications
Rotational speed monitoring in industrial drives
Gear tooth sensing in heavy machinery
Low-speed shaft detection in rail, marine, and energy systems
Harsh-environment sensing where temperature stability and signal integrity are critical
The DSD 2210.01 STV delivers precise, reliable speed measurements across a wide speed range, making it a preferred choice for demanding industrial and transportation applications.
Downloads
Datasheet »
Jaquet Speed Sensor DSE 1210.01 ATZ

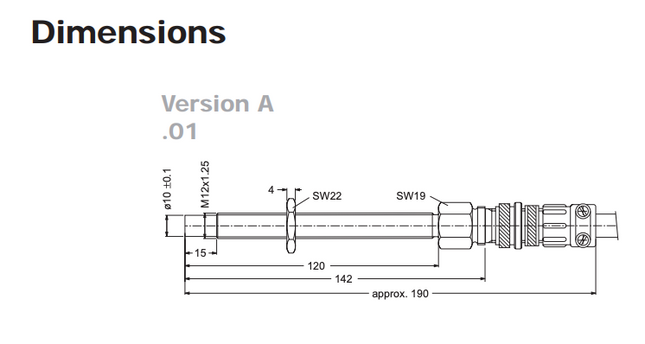

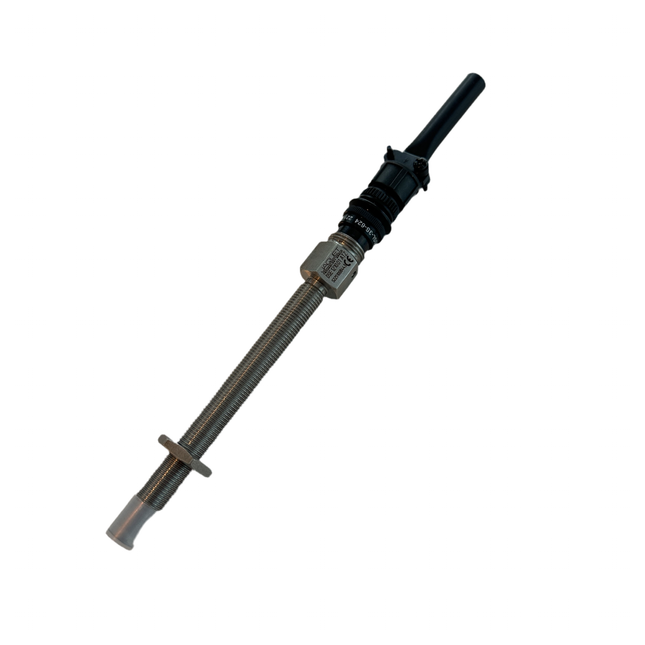

Type Part Nr.: DSE 1210.01 ATZ 304Z-03106Connection: ConnectorHousing thread: M12x1.25Weight: 150 [g]Operating temperature: -20…+85 [°C]Notes: previously FTG 232 A
(MPN: 304Z-03106) is a high-precision speed sensor designed for various applications, including turbocharger speed measurement in commercial and off-highway vehicles. This sensor is part of the DSE 1210.01 ATZ series and is known for its robust construction and reliable performance in demanding environments.
Here are some key features and details:
Purpose: Designed for accurate turbocharger speed measurement, making it suitable for high-volume commercial vehicle applications
Specifications: The sensor is designed to generate square wave signals proportional to the rotary speed when used with a pole wheel.
Construction: Built to withstand harsh conditions, making it ideal for use in both commercial and off-highway vehicles
Jaquet DSE 1210.02 AHZ

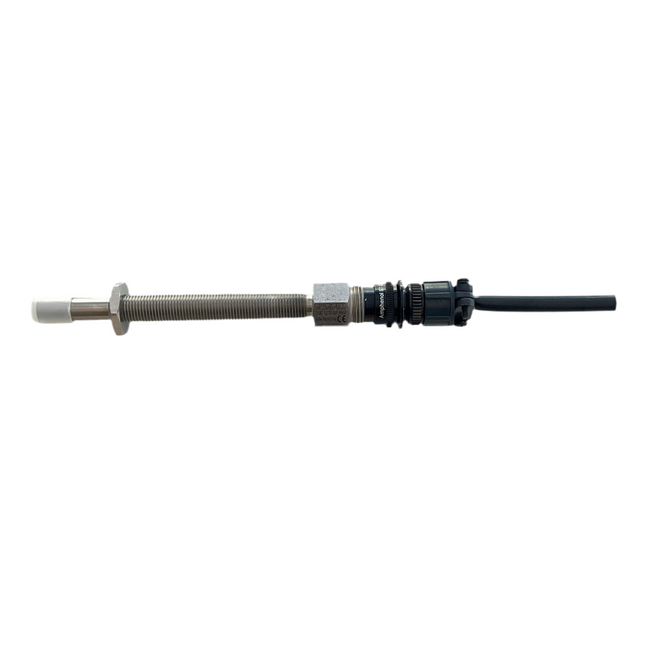

The sensor DSE 1210.02 AHZ (mpn: 304Z-03109) has a socket connection type Jaquet 820E-31142
Jaquet 820E-31142 Socket connectionis the same as Amphenol Industrial MS3102A-10SL-3P/H 097Operating temperature: -55°C to +125°C Plug-and-socket connection: IP67

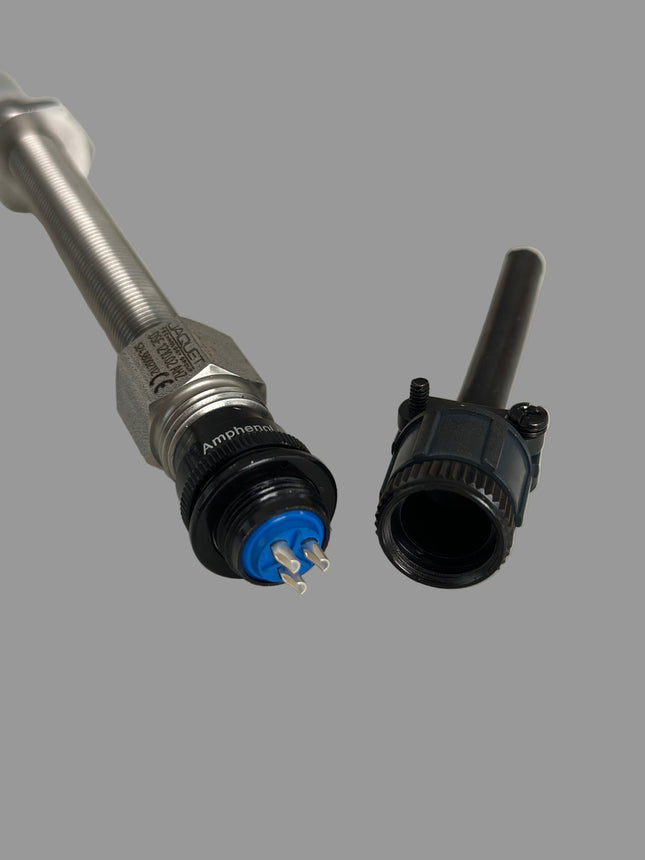

Suitble Plug to connect a cable on this sensorIf you connect a cable on this sensor, you need a cable with Jaquet type 820E-31141 which is same as Amphenol Industrial MS3106A-10SL-3P
