Speed Sensor Probes
-
Jaquet TE / Jaquet Speed Sensor DSE 1610.08 AHZ S161 (MPN: 304Z-04125 / DSE 1610.08 AHZ S161 -Series)
€3.517,21
-
Jaquet TE / Jaquet Speed Sensor DSE 1810.00 SHZ (2m) (MPN: 304Z-04248 / DSE 1810.00 SHZ (2m) -Series)
€1.284,43
-
Jaquet TE / Jaquet Speed Sensor DSE 1810.01 AHZ 04219195 (MPN: 304Z-03776) - DISCONTINUED
OBSOLETE VERSION Please contact us for alternative version.
€1.115,04
-
€3.186,56
-
Jaquet TE / Jaquet Speed Sensor DSE 2210.22 AHZ Ex-atex (MPN: 347Z-05103 / DSE 2210.22 AHZ Ex atex -Series)
€1.718,98
-
€4.566,68
-
€1.989,56
-
€2.391,29
-
Jaquet TE / Jaquet Speed Sensor DSE AAMZ.00 AHZ (2m) (MPN: 304Z-03146 / DSE AAMZ.00 AHZ (2m) -Series)
€2.391,29
-
€1.483,96
-
Jaquet TE / Jaquet Speed Sensor DSE AD10.00 SHZ (5m) (MPN: 304Z-03182 / DSE AD10.00 SHZ (5m) -Series)
€1.587,82
-
€470,04
-
Jaquet TE / Jaquet Speed Sensor DSE EH10.21 SHZ Ex-atex (5m) (MPN: 347Z-05096)
TE / Jaquet Speed Sensor DSE EH10.21 SHZ Ex-ATEX (5m) Manufacturer Part Number (MPN): 347Z-05096 Cable Length: 5 meters Certification: Ex-ATEX (Explosion-proof) Product Overview The Jaquet DSE EH10.21 SHZ Ex-ATEX is a certified explosion-proof speed sensor engineered for hazardous environments. With a 5-meter integrated cable and robust stainless steel construction, this sensor ensures precise rotational speed measurement in ATEX-rated zones such as oil & gas, mining, or chemical industries. Key Features Explosion-proof design (ATEX Certified) Long 5-meter cable for flexible installation Durable stainless steel housing High-reliability speed sensing Resistant to harsh industrial environments Applications Hazardous area speed detection (Zone 1 / Zone 2) Oil & gas industry monitoring Mining and underground equipment Chemical processing systems Technical Specifications Brand TE / Jaquet Model DSE EH10.21 SHZ Ex-ATEX MPN 347Z-05096 Cable Length 5 meters Explosion Proof Yes – Ex-ATEX Certified Application Environment Hazardous / ATEX Zones Need Technical Help? Have questions about ATEX certification or compatibility? Contact our technical support team — we’re here to help. This sensor is an alternative to an obsolete version DSE EH20.06 S1HZ Ex-Atex for example, but installation must follow the Ex-Atex data in the datasheet for the Atex application.
€1.495,00
-
€1.298,11
-
€1.389,00
-
Jaquet TE / Jaquet Speed Sensor DSF 1210.00 MTV (5m) (MPN: 374Z-03970 / DSF 1210.00 MTV (5m) -Series)
€1.440,24
-
Jaquet TE / Jaquet Speed Sensor DSF 1210.00 SHV (2m) (MPN: 374Z-03869)
Jaquet DSF 1210.00 SHV (with integrated 2-meter cable) The Jaquet DSF 1210.00 SHV (2m) is a high-quality, dynamic Hall-effect speed sensor designed for industrial use. Info: If this sensor is temporaly available and you need this sensor type fast, please check identical sensor from Jaquet with 5-meter cable here: DSF 1210.00 SHV (5m) Key Features: • Housing: M12x1• Detection Capability: Module 1.0 minimum• Cable: 5m Teflon, open wire ends• Temperature Range: -40°C to +125°C• Output: Built-in line amplifier, typically Push-Pull The Jaquet DSF 1210.00 SHV (2m) is a premium dynamic Hall-effect speed sensor, crafted for demanding industrial applications. Its robust design and precise detection capabilities make it ideal for environments requiring reliable performance in extreme conditions. Key Features Housing: Compact M12x1 design for easy installation and compatibility. Detection Capability: Optimized for Module 1.0 or greater, ensuring precise speed detection. Cable Length: 2 meters of durable Teflon cable with open wire ends for flexible and secure connections. Wide Temperature Range: Operates efficiently from -40°C to +125°C, making it suitable for extreme environments. Output: Equipped with a built-in line amplifier, providing a Push-Pull signal for robust and interference-free output. This sensor combines durability and precision, making it a dependable choice for various industrial applications such as machinery monitoring, automotive testing, and industrial automation. Applications Industrial machinery speed monitoring Rotational measurement in challenging environments Automotive testing setups Why Choose Jaquet DSF 1210.00 SHV?The Jaquet DSF 1210.00 SHV is engineered for accuracy and durability, ensuring reliable performance in high-demand scenarios. Its dynamic detection capability and built-in amplifier ensure superior functionality, even in harsh operating conditions. For further details or inquiries, please contact us or download the latest full technical datasheet.
€1.464,84
-
Jaquet TE / Jaquet Speed Sensor DSF 1210.00 SHV Ex-atex (2m) (MPN: 374Z-05066)
This item is available with 5-meter cable here TE/Jaquet does not manufacture the 2-meter version anymore. This is the same but with 5-meter cable. Cable can be cut if necessary.
€1.973,14
-
Jaquet TE / Jaquet Speed Sensor DSF 1210.00 STV (5m) (MPN: 374Z-03870)
STV version under lead time / alternative DSF 1210.00 SHV available with better cable (SHV -version is for high-ambient temperatures)
€1.235,00
-
€4.274,24
-
€1.385,57
-
Jaquet TE / Jaquet Speed Sensor DSF 1410.00 SHV (2m) (MPN: 374Z-03927 / DSF 1410.00 SHV (2m) -Series)
€1.544,07
-
Jaquet TE / Jaquet Speed Sensor DSF 1410.00 SHV (5m) (MPN: 374Z-03928 / DSF 1410.00 SHV (5m) -Series)
€1.647,95
-

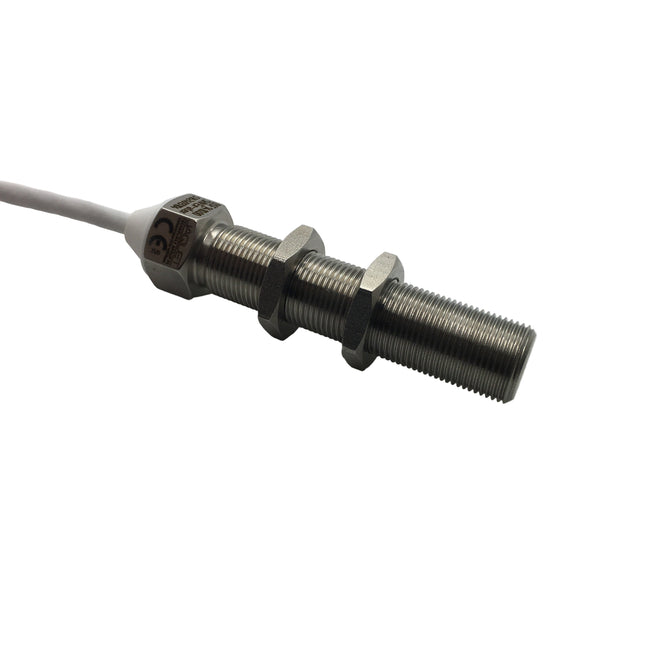

Jaquet TE / Jaquet Speed Sensor DSF 1410.00 SHV Ex-atex (5m) (MPN: 374Z-05254)
TE / Jaquet Speed Sensor — DSF 1410.00 SHV Ex-atex (5 m) MPN: 374Z-05254 Manufacturer: TE Connectivity / JaquetDrawing number 111496F1 Hall-effect single-channel speed sensor for hazardous areas. Produces a square-wave frequency proportional to rotational speed when paired with a ferromagnetic pole wheel. Intrinsically safe, maintenance-free design for harsh environments (oil, grease, vibration). Hall-effect single channel, push-pull square-wave output Supply 8–28 VDC, max ripple 25 mVpp Frequency range: 0.05 Hz to 20 kHz Short-circuit and reverse-polarity protected Stainless steel housing (1.4305), hermetically sealed face Ingress protection: IP68 (head), IP67 (cable) Shock 20 g/20 ms; vibration 5 g (5–2000 Hz) ATEX / IECEx Gas: II 2 G Ex ia IIC T6 GbDust: II 2 D Ex ia IIIC T155 °C Db (series also certified to T200 °C per supplement) Compliance: EN 60079-0:2012, EN 60079-11:2012; EC Type Ex Certificate ZELM 03 ATEX 0124X (incl. supplements). Notified body CE 2572 (PRIMARA). Quick Specs Model DSF 1410.00 SHV Ex-atex (5 m) MPN 374Z-05254 Sensing Hall-effect, single channel Output Push-pull square wave; DC-coupled; 25 mA max load; UHi ≥ US–4 V @ 25 mA; ULo < 2 V @ 25 mA Supply 8–28 VDC (25 mVpp ripple max) Frequency 0.05 Hz … 20 kHz Thread M14×1 Torque (max) 25 Nm for M14×1 Cable 5 m Teflon, 4×0.24 mm² (AWG24), screened; bend radius ≥60 mm Ingress IP68 (head) / IP67 (cable) Housing Stainless steel 1.4305; hermetically sealed face Pole Wheel & Air Gap Guidelines Use a magnetically permeable toothed wheel (e.g., steel 1.0036). Min. tooth width 10 mm; side offset <0.2 mm; eccentricity <0.2 mm. Wheel Module Allowed Air Gap m = 1 0.2–1.0 mm m = 2 0.2–2.5 mm m = 3 0.2–3.5 mm m ≥ 4 0.2–4.5 mm Electrical Characteristics Supply: 8–28 VDC; ripple ≤25 mVpp Current (no load): ≤15 mA Output: push-pull, DC-coupled to 0 V Load current: ≤25 mA UHi ≥ US–4 V @ 25 mA; ULo < 2 V @ 25 mA EMC: per 2014/30/EU, IEC 61000-6-2 Mechanical & Environmental Thread: M14×1; max tightening torque 25 Nm Housing: stainless steel 1.4305; hermetically sealed face Ingress: IP68 (head), IP67 (cable) Insulation: electronics/case/screen galvanically separated (500 V, 50 Hz, 1 min) Shock: 20 g (20 ms half-sine); vibration: 5 g (5–2000 Hz) Cable & Wiring (SHV) 5 m Teflon cable, 4×0.24 mm² (AWG24), screened; Ø ≈ 4.0 mm; min. bend radius 60 mm Screen isolated from housing Brown conductor not used Temperature Ranges (per certification) Ambient (Gas), Type 1 cable versions: −20 °C … limit per Table 1 for T-class (T1–T6) Ambient (Dust): −20 °C … +100 °C (T155 °C); series also certified to T200 °C per supplement Observe EC Type Ex certificate ZELM 03 ATEX 0124X and supplements for power-limited barriers and ambient limits. Typical Applications Turbomachinery, rotating equipment in oil & gas, industrial drives, and process control systems in hazardous areas. Installation notes: Mount sensor face centered over pole wheel; keep ≥3 mm from wheel edge under all operating conditions. Route sensor cable away from high-power conductors and large machines to reduce EMI. Set the smallest practical air gap that prevents contact during operation. Note: Product details summarized from TE Connectivity / Jaquet documentation for DSF xx10.xx xHV Ex-atex series (incl. specific listing for DSF 1410.00 SHV Ex-atex 5 m). Always verify suitability with the official datasheet and certificate for your application.
€1.647,95
You have seen 192 out of 253 products
