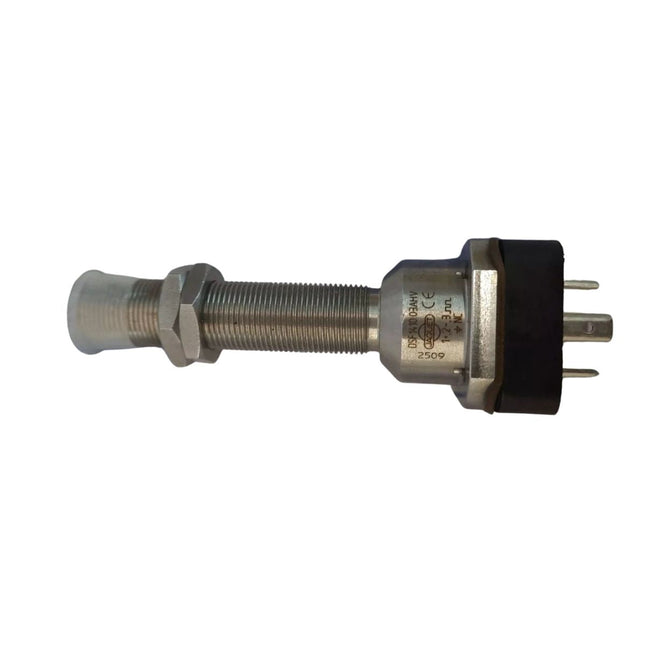

Jaquet Speed Sensor DSF 1410.03 AHV
MPN: 374Z-04400
Product Overview
The TE / Jaquet DSF 1410.03 AHV is a single-channel Hall Effect speed sensor designed to deliver precise and reliable measurement of rotational speed. Engineered for harsh industrial and transportation environments, it generates square wave signals proportional to rotary speed when used with a pole wheel.
Its robust stainless-steel housing, EMC protection, and high shock/vibration resistance make it a trusted solution for rail vehicles, turbines, heavy machinery, and power generation systems.
Key Features
Type: Single-channel Hall Effect speed sensor
Signal output: Square wave, push-pull, DC-coupled
Frequency range: 0.05 Hz to 20 kHz
Supply voltage: 10 V to 30 V (protected against transients & reverse polarity)
Current consumption: Max. 16 mA (without load)
Output drive: ±20 mA, short-circuit and reverse polarity protected
Housing material: Stainless steel 1.4305, hermetically sealed front face
Connector: Jaquet 820P-36090 (Hirschmann GSA 3000, IP65)
Technical Specifications
Protection class:
Sensor head: IP68
Connector: IP65 (820P-36090)
Operating temperature:
Version H: –40 °C to +125 °C
Mechanical resistance:
Vibration: 5 g (5 … 2000 Hz)
Shock: 50 g for 20 ms, half sine
Pole wheel requirements:
Tooth width ≥ 10 mm
Side offset < 0.2 mm
Eccentricity < 0.2 mm
Air gap: 0.2 … 4.5 mm (depending on module)
Electrical insulation: 500 V / 50 Hz / 1 min (galvanic separation)
MTTF (Mean Time To Failure): 3,177,000 hours @ 60 °C
Failure rate: 314.8 FIT
Benefits
High accuracy at very low speeds (down to 0.05 Hz)
Maintenance-free, potted electronics in chemical-resistant resin
Resistant to oil, grease, dust, salt mist, and moisture
Certified by Germanischer Lloyd (GL Certificate 17332-00 HH)
Easy installation and alignment, orientation-independent
Typical Applications
Rail vehicle traction control & monitoring
Industrial engines & turbines
Power generation systems
Heavy-duty machinery & transportation equipment
Ordering Information
Part Number (MPN): 374Z-04400
Designation: TE / Jaquet Speed Sensor DSF 1410.03 AHV
Connector Type: Jaquet 820P-36090 (Hirschmann GSA 3000)
