ABS/EBS coil with ISO 7638-2 plugs.▪ 3m working length
Weight: 1.55 kg
ADR certified according to ISO 4141 and ISO 4091
High pull-out forces by strain relief inside
Connection
input:
Plug ABS/EBS 7-pin 12V ISO
7638-2
Connection output:
Plug ABS/EBS 7-pin 12V ISO 7638-2
Cable length:
3m working length (Cable Style: 2x4+3x1,5+1x(2x1,5)mm² PUR)
Mass:
1.55 kg
ABS/EBS coil with ISO 7638-1 plugs.▪ 3m working length
Weight: 1.55 kg
ADR certified according to ISO 4141 and ISO 4091
High pull-out forces by strain relief inside
Connection
input:
Plug ABS/EBS 7-pin 24V ISO
7638-1
Connection output:
Plug ABS/EBS 7-pin 24V ISO 7638-1
Cable length:
3m working length (Cable Style: 2x4+3x1,5+1x(2x1,5)mm² PUR)
Mass:
1.55 kg

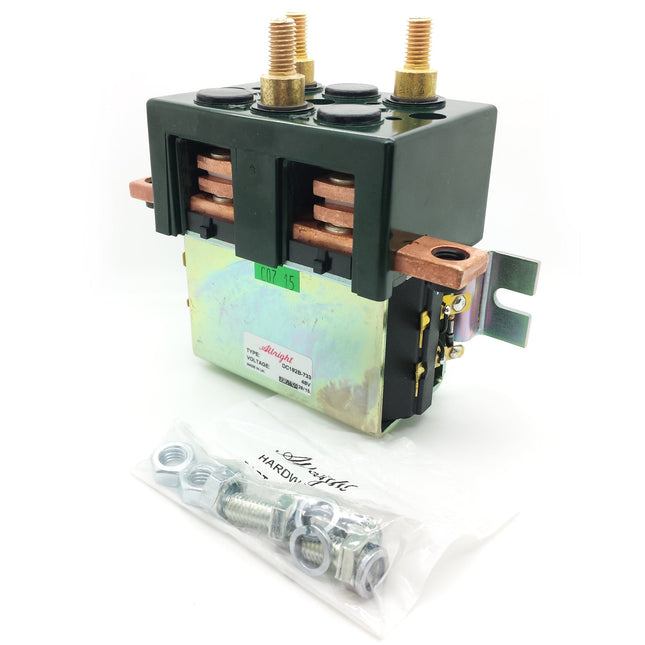

Albright DC182B-733 – 48V DC Motor Reversing Contactor with Magnetic Blowouts
The DC182B-733 is a high-performance motor reversing contactor designed for demanding DC applications, including electric vehicles, materials handling equipment, and industrial machinery. As part of Albright’s trusted DC182 series, this compact contactor is engineered for safe, efficient, and reliable bidirectional motor control.
Featuring magnetic blowouts for enhanced arc suppression, the DC182B-733 delivers superior performance in high-current environments. Its robust single-pole, double-throw (SPDT) design ensures long service life, mechanical reliability, and protection against simultaneous coil energization.
Key Features
Rated Voltage: 48V DC
Continuous Current: 150A (up to 275A intermittent)
Magnetic Blowouts: Fitted for safe, high-current switching
Contact Configuration: Monoblock reversing, failsafe design
Durability: Over 5 million mechanical cycles
Mounting: Compact with universal bracket, M8 terminals
Typical Applications: Forklifts, electric vehicles, winches, industrial trucks
Benefits
Reliable Reversing: Prevents contact damage from misoperation
Arc Suppression: Extends contact life under load
Compact & Serviceable: Easily integrates into DC systems
Custom Coil Options: Available in multiple voltages (24V, 36V, 80V, etc.)
The Albright DC182B-733 is the ideal choice for reversing motor control in DC circuits requiring consistent performance, compact design, and long operating life.
Albright HV500AF-38 48V DC PWM
The Albright HV500AF-38 48V DC PWM is a high-performance, durable solid-state relay designed for precision control in demanding applications. This product is part of Albright's renowned line of DC contactors and switches, known for their reliability and efficiency in various industrial and vehicular environments. The HV500AF-38 is specifically engineered to handle 48V DC applications, making it an ideal choice for electric vehicles, renewable energy systems, and heavy-duty industrial machinery.
Featuring Pulse Width Modulation (PWM) capability, the HV500AF-38 allows for sophisticated control over the power distribution, ensuring smooth operation and protection for sensitive electronics. This technology not only improves the efficiency of the system it's integrated into but also significantly extends the lifespan of the motor or circuit by reducing thermal stress.
Constructed with robust materials and designed to withstand harsh environments, the HV500AF-38 offers exceptional durability. Its compact form factor makes it easy to integrate into existing setups without requiring significant modifications. Moreover, its design prioritizes safety, with built-in features to prevent overcurrent situations and electrical arcs, ensuring a safe operating environment for users and equipment alike.
Key Features:
48V DC rating, suitable for a wide range of high-voltage applications.
PWM control for precise power management and improved efficiency.
High durability and reliability, characteristic of Albright's engineering standards.
Compact and robust design, enabling easy installation and long-term operation in harsh conditions.
Enhanced safety features, including arc suppression and overcurrent protection.
The Albright HV500AF-38 48V DC PWM is a testament to Albright's commitment to innovation and quality in the field of electrical engineering. Its integration into your system promises not only an upgrade in performance but also a step forward in operational safety and efficiency.
The Albright HV500AF-47S 24V DC PWM + Auxiliary (NC) is a high-performance solid-state relay designed to cater to specific and demanding applications requiring precise control and high reliability. This device is part of Albright’s HV500 series, known for its robust design and advanced technology, making it suitable for critical applications such as electric vehicles, renewable energy systems, and industrial machinery.
Key Specifications and Features:
Voltage Rating:
The HV500AF-47S is specifically rated for 24V DC applications. This makes it particularly useful in systems where lower voltage levels are essential, such as in certain automotive, solar, and industrial environments.
Pulse Width Modulation (PWM):
The relay supports PWM control, which is crucial for managing power efficiently and maintaining smooth operation. PWM allows for variable power delivery, reducing wear on components and increasing the overall efficiency of the system. This control mechanism is essential for systems that require fine-tuned power adjustments and enhanced energy savings.
Auxiliary Contacts (NC):
The HV500AF-47S includes Normally Closed (NC) auxiliary contacts. These contacts provide an additional layer of control and monitoring, useful in safety circuits or for feedback to a control system. The NC contacts ensure that the circuit remains closed and operational until a certain condition is met, which then opens the circuit, providing a safety mechanism or an alert to the system.
Durability and Reliability:
Constructed from high-quality materials, the HV500AF-47S is designed to operate reliably in harsh environments. Whether it’s extreme temperatures, dust, moisture, or vibration, this relay maintains consistent performance. Its robust design ensures longevity and reliability, critical for systems where maintenance access may be limited.
Safety Features:
The device is engineered with built-in overcurrent protection and arc suppression. These features protect both the relay and the connected equipment from damage due to electrical faults, making the HV500AF-47S a safe choice for sensitive applications.
Compact Design:
The compact form factor of the HV500AF-47S allows for easy integration into existing systems, even in space-constrained environments. Despite its small size, it delivers the high performance and reliability expected from Albright products.
Applications:
The versatility of the HV500AF-47S makes it ideal for a wide range of applications. It is particularly well-suited for electric vehicles, where reliable DC control is crucial for battery management and motor control. In renewable energy systems, it can be used for managing power flow in solar inverters or wind turbines. Additionally, in industrial machinery, it offers precise control in automation systems, enhancing efficiency and reducing downtime.
Summary
The Albright HV500AF-47S 24V DC PWM + Aux (NC) relay is a powerful and reliable component designed for precision control in a variety of demanding applications. Its features, such as PWM control, NC auxiliary contacts, and robust design, make it a top choice for industries requiring high reliability and precise power management. By integrating this relay into your system, you not only improve operational efficiency but also ensure a safer and more durable setup, aligning with the best practices in modern electrical engineering.
Reliable Power Switching in Harsh Environments
The Albright SU80-5163PL is a heavy-duty DC contactor engineered for continuous duty applications up to 150A at 28V DC. This single-acting model is part of Albright’s trusted SU80 series, known for robust construction and long operational life.
Designed with an IP66 rated sealed housing, this contactor provides exceptional protection against water, dust, and other environmental hazards—making it ideal for use in material handling, electric vehicles, marine systems, and industrial automation.
Key Features:
Voltage: 28V DC
Current: 150A Continuous
Type: Single-acting (normally open)
Protection Rating: IP66 (fully sealed)
Coil Terminals: Plated for corrosion resistance
Compact footprint, easy to install
Applications:
Perfect for mobile equipment, battery-powered systems, off-road vehicles, and any harsh environment where reliability is critical.
Albright SW180-4 – 24V DC Continuous (CO) Solenoid Contactor, SPST-NO
The Albright SW180-4 is a heavy‑duty DC contactor designed for reliable switching of motors and other DC loads. This single‑acting, single‑pole, normally‑open contactor features silver‑alloy double‑breaking tips for long life and low resistance, with a 24VDC continuous (100% duty) coil.
Key Features
Series: SW180 (single-acting)
Coil: 24 VDC, Continuous (100% duty)
Configuration: SPST, Normally Open (N/O)
Main terminals: M8 studs
Coil terminals: 6.3 mm spade connectors
Mounting: M5 tapped holes or optional steel bracket
Orientation: Horizontal or vertical (studs up recommended)
Typical applications: Forklifts, pallet movers, scissor lifts, tow tugs, golf carts, winches, EV conversions, industrial DC systems
Ratings & Performance
Thermal current (Ith)
150 A
Application rating
Interrupted: 150 A | Uninterrupted: 200 A
Typical voltage drop @150 A
~30 mV (per pole)
Breaking capacity (UL583 guide)
Up to 1000 A (48 V DC) for SW180
Operating temperature
-40 °C to +60 °C
Mechanical durability
> 5 million operations
Coil pull-in (typ.)
≤ 66% of rated coil voltage (continuous type)
Drop-out (typ.)
10–25% of rated coil voltage
Weight (approx.)
~0.64 kg
What’s Included
1 × Albright SW180-4 contactor (24V DC, continuous)
Note: Mounting bracket and auxiliary contacts, if required, are sold separately.
Dimensions
Compact footprint for easy panel or chassis mounting. See manufacturer datasheet for detailed dimensions and drilling pattern.
Compatibility & Use
Suitable for resistive, capacitive, and inductive DC loads
Common in OEM and aftermarket service for material handling and utility EVs
Check coil voltage (24 VDC) and current ratings against your application
Installation Notes
Use appropriately rated cable/busbar and protective devices
For vertical mounting, orient with M8 studs upward (contact us if studs-down is required)
Observe polarity if optional suppression or blowouts are used

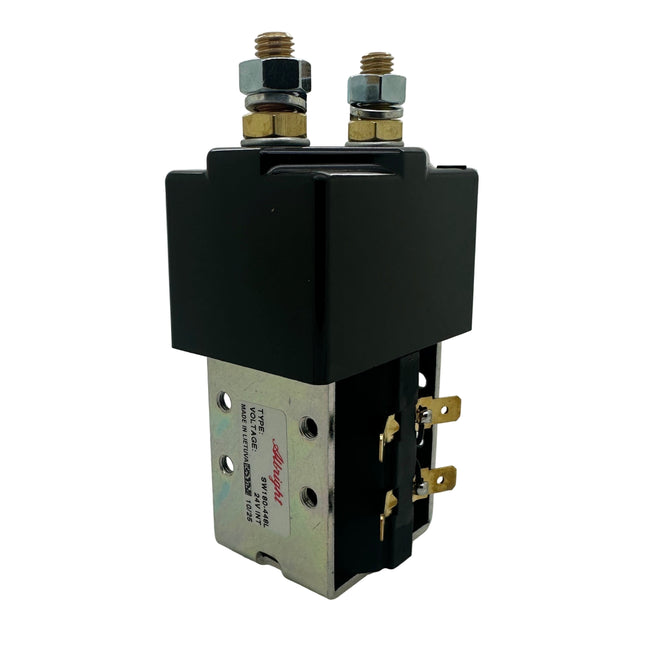

SW180-448L 24V Intermittent, 150 Amp
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW180 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW180 is suitable for switching Resistive, Capacitive, and Inductive loads.
The SW180 features single pole single throw, double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW180 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets - supplied as separate items). Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
SW180-954L Albright 150A 12V INT 1-pole 1-throw Contactor
SW180-954L, a SW180L series of contactors, equipped with magnetic blowouts - B and larger contact tips (L) and has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks
SW180AB-48 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
info: image of SW180A-48 which is exact same external look, this SW180AB-48 has B as extra = blowout magnets inside the top cover
The SW180AB has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW180B is suitable for switching Resistive, Capacitive, and Inductive loads.
The SW180AB features single pole single throw, double-breaking main contacts with silver alloy tips, which are weld resistant, hardwearing, and have excellent conductivity. The SW180B has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets - supplied as separate items). Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
SW180AB-51 is an 48 volt intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW180AB has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW180B is suitable for switching Resistive, Capacitive and Inductive loads.
The SW180AB features single pole single throw, double-breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity.
The SW180B has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets - supplied as separate items). Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
