FITS ONTO VEHICLE SIDE of Trailer Connection
REMA Vehicle socket B incl. Main contacts.
These Twin plug and sockets by REMA are commonly used with truck and trailer connection.
Prior to standardization REMA has developed this two pole electrical connection. These robust connectors have proofed there reliability already for decades. Focus of applications of these connectors are electrical connections between trailer and towing machine on road trucks. The contact design has large connection surfaces with a spring loaded connector pin sliding into the sleeves inside the female connector. This results to extremely low resistance in the electrical connection.The contacts show a differentiation between solder and crimp connections.
On top the twin plug and sockets have:
mechanical robustness
constant extraction forces
protection against humidity, acids and UV radiation
reliable design for long lifetimes and vibration protection
The contacts are made from high quality E-Cu copper, optimized for crimp connections. Crimp tooling and dies available on request from sales.
REMA (Ameise Jungheinrich) Battery Plug A incl. Main contacts
max cable size 35mm2 = REMA 76250-00 = 160Amax cable size 50mm2 = REMA 76251-00 = 200A
Contacts can be crimped or soldered with cable.
These Twin plug and sockets by REMA are commonly used with truck and trailer connection.
Prior to standardization, REMA has developed these two poles electrical connection. These robust connectors have proofed their reliability already for decades. The focus of applications of these connectors are electrical connections between the trailer and towing machine on-road trucks. The contact design has large connection surfaces with a spring-loaded connector pin sliding into the sleeves inside the female connector. This results in extremely low resistance in the electrical connection. The contacts show a differentiation between solder and crimp connections.
On top the twin plug and sockets have:
mechanical robustness
constant extraction forces
protection against humidity, acids and UV radiation
reliable design for long lifetimes and vibration protection
The contacts are made from high-quality E-Cu copper, optimized for crimp connections. Crimp tooling and dies available on request from sales.

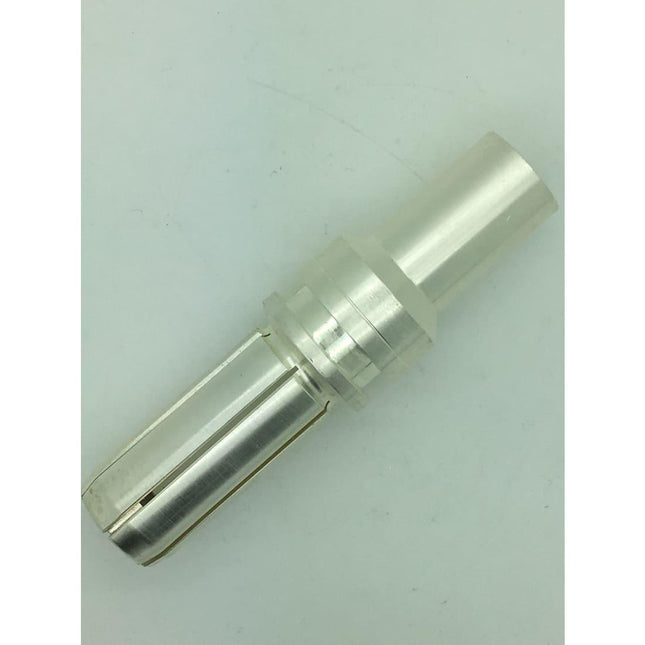

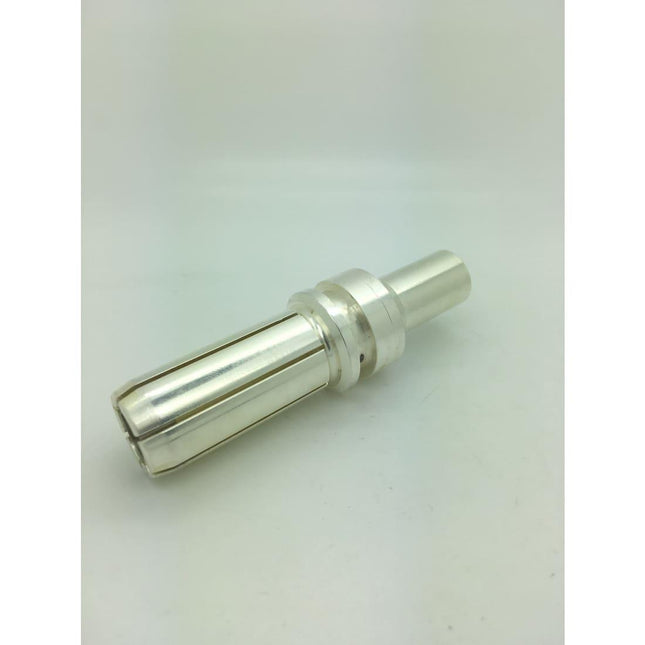

This is the 640A Plug = Male version for charger / motor -side usually.
Select your wire diameter
(640A version contacts look a bit different from 320/160/80amp version)You can be sure about the type by looking at the housing.
does not include a handle. ADD handle
Versions for a complete 640A plug=male=stecker connector with main contacts are:
70 mm2 REMA DIN 640 A Plug = 95850-30 = new code 11116295 mm2 REMA DIN 640 A Plug = 95850-20 = new code 111161120 mm2 REMA DIN 640 A Plug = 95850-10 = new code 111160240 mm2 REMA DIN 640 A Plug = 95850-00 = new code 108995
The Original REMA DIN 640 battery connector system complements the product lines REMA DIN 80, 160, 320 with a high power battery connector at an unrivaled current rating of 640 amps. The connector system has been specifcally designed for the quick and opportunity charging of large battery capacities and corresponds to the DIN VDE 0632-589 and EN 1175-1.
POSSIBLE TO FIT 2 PAIRS OF AUXILARY CONTACTSAs special feature, it is possible to install an additional (second) pair of auxiliary contacts to the standard version with 1 pair of auxiliary and pilot contacts. The REMA devoloped contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure a power transition with minimal losses and a long life. The DIN 640 battery connector is suitable for a wide range of cable sizes. Cables from 70 mm² to 240 mm² can be crimped directly without using a reducing bushing. For best performance results and durability, the special developed REMA Crimp die sets and tools should be used.
Product features and advantagesREMA HIGH-POWER BATTERY CONNECTOR DIN 640 Complements the product lines REMA DIN 80, 160, 320 with a high power Battery Connector at an unrivaled current rating of 640 amperes Specifically designed for the quick and opportunity charging of large battery capacities Corresponds to the DIN VDE 0632-589 and EN 1175-1 Up to 2 pair of auxiliary contacts and 1 pair of pilot contacts can be equipped per connector High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated sur-face and an anti-friction and tarnish coating ensure power transition with minimal losses long life Particularly preserved by acid-resistant construction Suitable for cable sizes from 70 mm² to 240 mm²
Direct crimping without reducing bushing for all cable sizes REMA die sets and tools provide best performance and durability. Please ask tools from our sales team.
Browse all REMA Connectors here
This is the 640A Socket = Female version for the battery side commonly.(640A version contacts look a bit different from 320/160/80amp version)You can be sure about the type by looking at the housing - it looks the same as 320/160/80amp versions compared to the socket.
See all REMA DIN 640 Connectors here
This product includes a complete connector with housing, locking part, cable stress relief, grey coding pin, and main contacts. As an accessory, you can pick also the handle and auxiliary and pilot contacts or/and the air adapter.
If you look for the opposite side of this connector, please find the plug-version here.
Versions for a complete 640A socket=female=dose connector with main contacts are:
70 mm2 REMA DIN 640 A Socket = 95950-3095 mm2 REMA DIN 640 A Socket = 95950-20120 mm2 REMA DIN 640 A Socket = 95950-10240 mm2 REMA DIN 640 A Socket = 95950-00
The Original REMA DIN 640 battery connector system complements the product lines REMA DIN 80, 160, and 320 with a high-power battery connector at an unrivaled current rating of 640 amps. The connector system has been specifically designed for the quick and opportunity charging of large battery capacities and corresponds to the DIN VDE 0632-589 and EN 1175-1.
POSSIBLE TO FIT 2 PAIRS OF AUXILIARY CONTACTSAs a special feature, it is possible to install an additional (second) pair of auxiliary contacts to the standard version with 1 pair of auxiliary and pilot contacts. The REMA developed contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure a power transition with minimal losses and a long life. The DIN 640 battery connector is suitable for a wide range of cable sizes. Cables from 70 mm² to 240 mm² can be crimped directly without using a reducing bushing. For best performance results and durability, the specially developed REMA Crimp die sets and tools should be used.
Product features and advantagesREMA HIGH-POWER BATTERY CONNECTOR DIN 640 Complements the product lines REMA DIN 80, 160, 320 with a high power Battery Connector at an unrivaled current rating of 640 amperes Specifically designed for the quick and opportunity charging of large battery capacities Corresponds to the DIN VDE 0632-589 and EN 1175-1 Up to 2 pair of auxiliary contacts and 1 pair of pilot contacts can be equipped per connector High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life Particularly preserved by acid-resistant construction Suitable for cable sizes from 70 mm² to 240 mm²
Direct crimping without reducing bushing for all cable sizes REMA die sets and tools provide the best performance and durability. Please ask for tools from our sales team.
Browse all REMA Connectors here
REMA 640 Amp main contact for Socket = female
Sold as these versions:70mm2 (AWG 2/0)95mm2 (AWG 3/0)120mm2 (AWG 4/0)240mm2 (240 mm2 delivery time 2 work days)
REMA DIN 640 Handle
Fits both REMA DIN 640 Plug and Socket
REMA ITEM 108994/95800-11Includes:DIN 640 A handle, acid resistant4 screws + 4 nuts
Single packed in a ZIP-bag
Set including Plastic adapter and 2 auxiliary (pilot) contacts. This set fits both DIN 320 and DIN 640 -series REMA Battery Connectors (socket/female/battery-side)
Genuine REMA -product108749 / 7559100 DIN 320 A pilot cont. set socketNew REMA catalog code 108749Old REMA catalog code 75591-00 (also 7559100 and 75591/00)

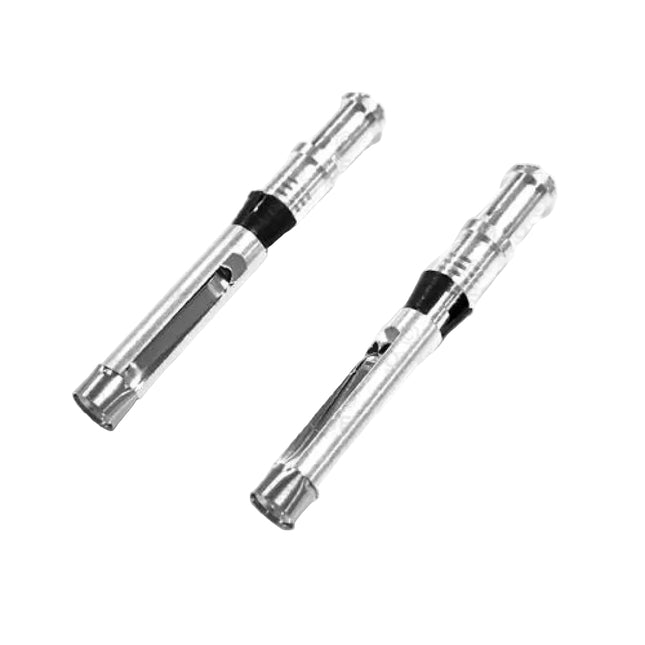

Auxilary contacts (2pcs) for REMA 160A socket = female.
REMA catalog codes:Old code 77640-60 (this set includes 2 pcs of old code 77640-00New catalog code 108796 (complete set of 2 pcs)
Packed in one zip-bag.
Single Auxiliary contact (1pcs) for REMA 160A socket version = female housing type.
Normally you need usually a pair (two pieces) for one connector.REMA catalog codes:Old code: 77640-00New code: 102714
Reliable power connection solution for Electric vehicle batteries
Battery chargers Forklift trucks Other DC voltage applications Operating voltage determined by housing color Simplifi es mating of same voltages Plug and socket with identical housing design Reduces quantity of components Reduces purchasing and storage cost Acid resistant housing material Handels, strain relieves and auxiliary contacts optional CE Marking & UL recognized Contacts sized for AWG (American Wire Gauge) and metric cross sections REMA developed high-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life suitable for crimping

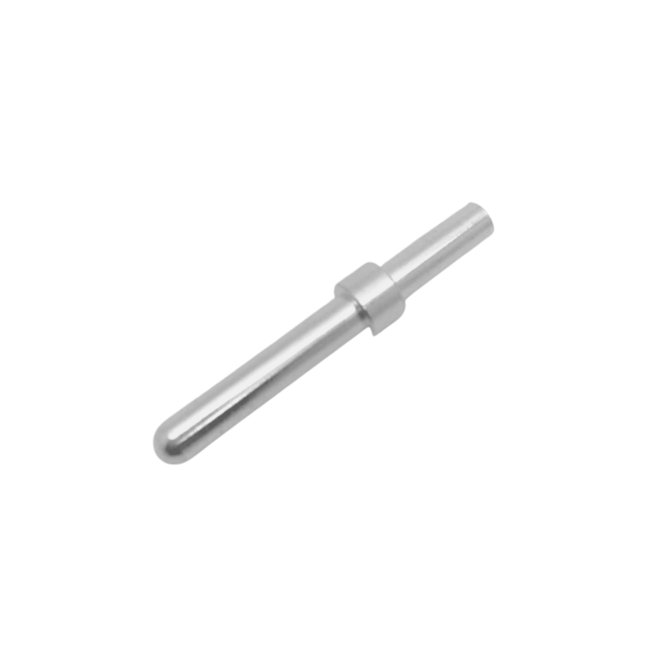

REMA 102691/75595-55DIN 320 & DIN640 Amp aux cont. for plug
Original REMA auxiliary contact to be installed in 320A plug EURO DIN housing.
informationThis is a single contact pin, normally you need 2 pieces on one plug housing. The contact part of this single contact is the same as on the pilot contacts, which are sold with a plastic adapter and small plastic screw. See the DIN320/DIN640 pilot contact kit here.
Pilot contact set for 320A plug Battery Connector from REMA
REMA old catalog code 75596-00REMA new code 108751
Pilot contact set includes
2x contact pins, auxilary contacts1x plastic adapter1x plastic screw to tighten the cable to cable stress clamp
Same form as the standard handle but the bolts are very solid making this handle more durable in means of not getting loose. Will not rip off the connector in any matter as the standard handle might do while heavy lifting in horizontal direction.
REMA item code: 95066-94

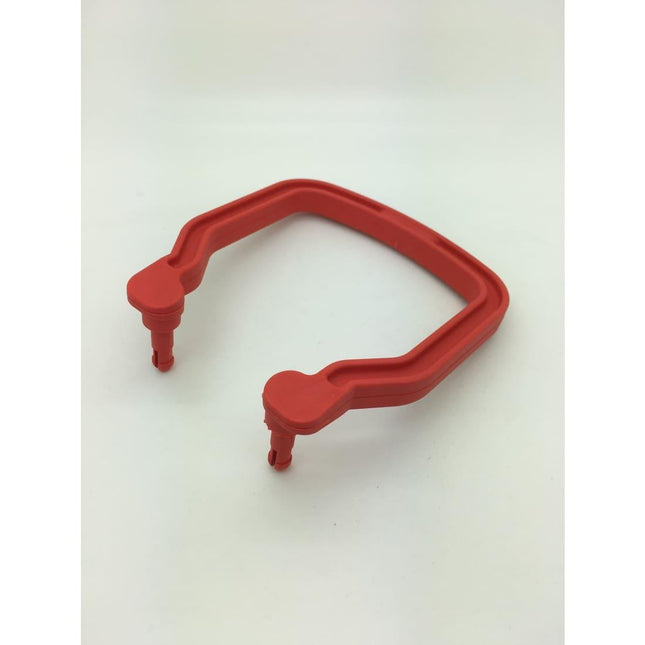

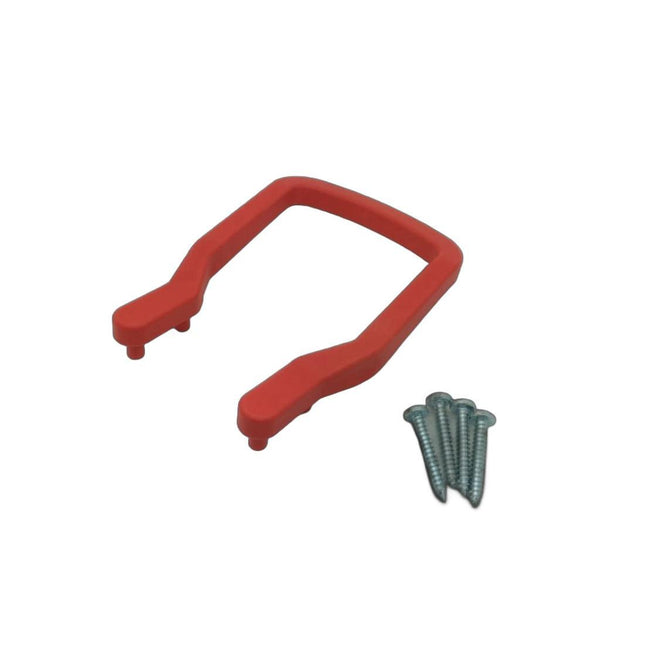

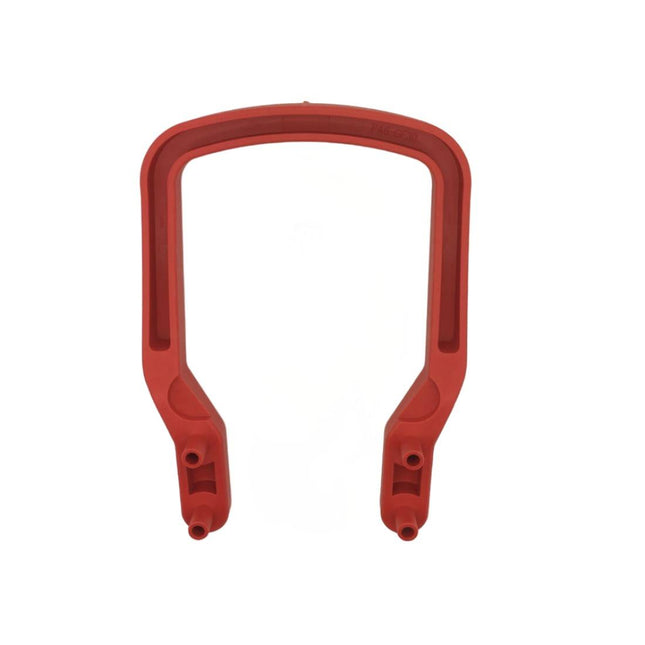

Standard DIN Connector spare handle with slightly bent handle form. Battery acid proof handle, made of PolyPropylene.
Includes screws for both 160A and 320A housing types.
Also works as as DIN 160 handle = item code 108880 / 95066-67 as this set includes screws for both DIN 160 and DIN 320 connector

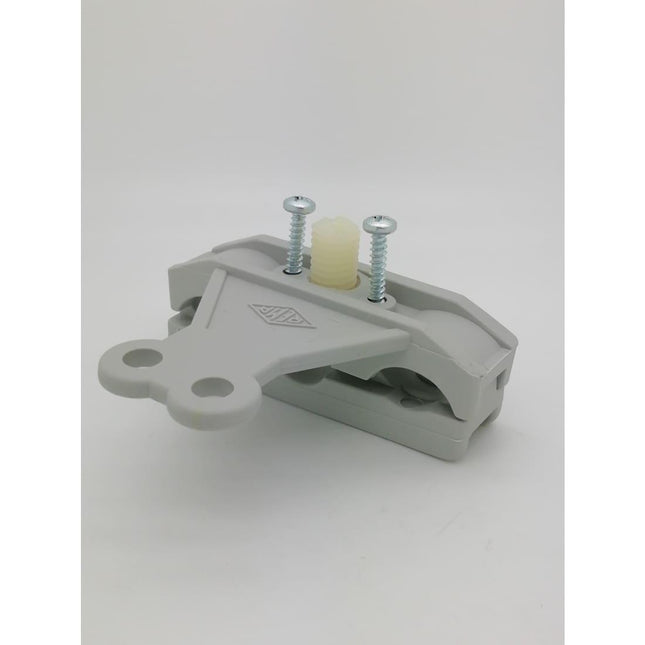

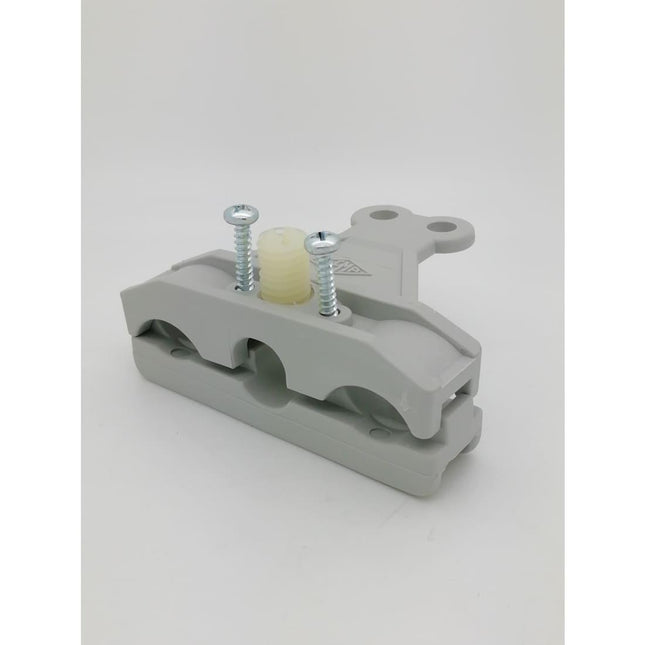

Cable Clamp (Stress Relief) for REMA SRX/ SRE 320, also for 160 A SRE 160 and SRX 160
Made by REMA but also fits Anderson SBX/SBE 320 and SBX/SBE 160
Old catalog code 78000-00

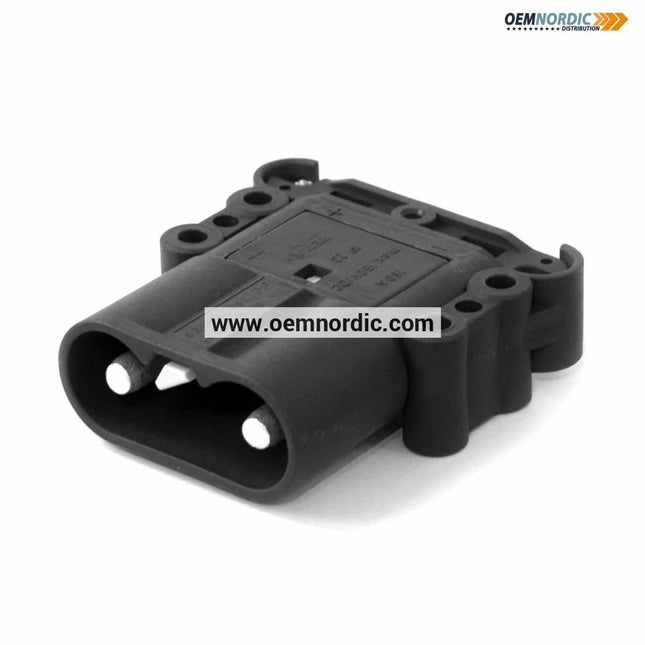

REMA DIN 160A Plug with contacts, lock part, coding pin and cable stress relief = cable clamp. Including grey coding pin for DRY battery.
Catalog codes are:
10mm2 = 108556( fits AWG 8 )
16mm2 = 108555 ( fits AWG 6 )
25mm2 = 108561 / old 75034-01 ( fits AWG 4 )
35mm2 = 108569 / old 75039-01 ( fits AWG 2 )
50mm2 = 108577 / old 75044-01 ( fits AWG 1/0 )
70mm2 = NA ( fits AWG 2/0 )
Other options are: ( sold separately )
Green = Wet BatteryYellow = Wet&Dry Battery
* No handle included, please add separate handle type if needed.* Plug without handle allows the handle to be changed upon damage very easily.
Product features and advantages:
Specifically designed for the quick and opportunity charging of large battery capacities
Suitable for lead gel accumulators and lithium-ion batteries
Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring supported contact system for optimal contact pressure high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life
Durable because of acid resistant design
Suitable for cable sizes from 10 mm2 to 50 mm2
Direct crimping without reducing bushing for all cable size
Wide range of accessories
different handle shapes are available
connect a pair of additional auxiliary and/or a pair of pilot contacts
cooling system with air supply through
Typical applications
forklift trucks
battery charging systems sweeper and cleaning devices
REMA DIN 160A Plug with contacts, lock part, coding pin and cable stress relief = cable clamp. Including grey coding pin for DRY battery.

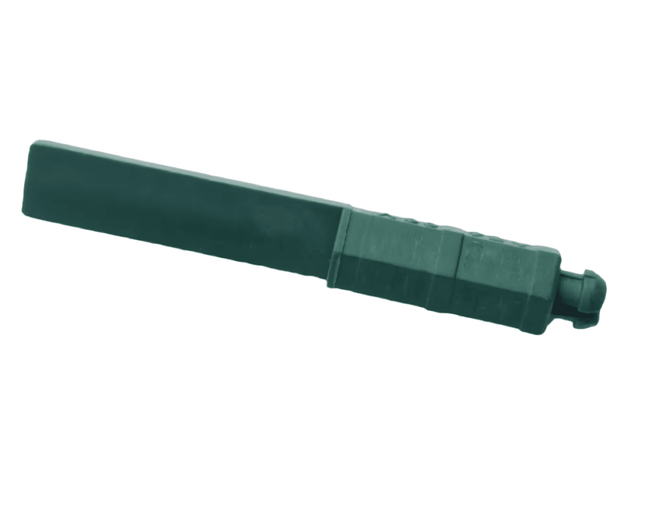

Other coding pin options are: ( sold separately )
Green = Wet BatteryYellow = Wet&Dry Battery* No handle included, please add separate handle type if needed.* Plug without handle allows the handle to be changed upon damage very easily.
Product features and advantages:
Specifically designed for the quick and opportunity charging of large battery capacities
Suitable for lead gel accumulators and lithium-ion batteries
Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring supported contact system for optimal contact pressure high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life
Suitable for cable sizes from 10 mm2 to 50 mm2
Direct crimping without reducing bushing for all cable size
Wide range of accessories
different handle shapes are available
connect a pair of additional auxiliary and/or a pair of pilot contacts
cooling system with air supply through
Typical applications
forklift trucks
battery charging systems sweeper and cleaning devices

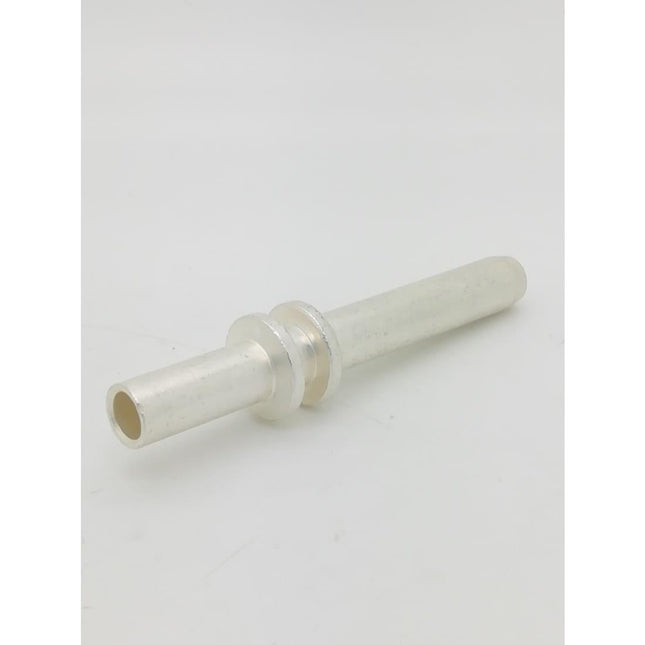

REMA original main contact. Cooper inside, silver finish. FITS ONLY REMA Euro DIN Battery Connectors In 160A form Plug = Male = Stecker
Single 160A Plug contacts are available for the following wire sizes:
108585 / 7504810 DIN 160 A main contact 10 mm2 for plug (1 pc.)108583 / 7504801 DIN 160 A main contact 16 mm2 for plug (1 pc.)108587 / 7504901 DIN 160 A main contact 25 mm2 for plug (1 pc.)108589 / 7505001 DIN 160 A main contact 35 mm2 for plug (1 pc.)108591 / 7505101 DIN 160 A main contact 50 mm2 for plug (1 pc.)108592 / 7505105 DIN 160 A main contact 70 mm2 for plug (1 pc.)
* optionally you can do:16mm2 ( 25mm2 with reducing bushing 25-16 )10mm2 ( 25mm2 with reducing bushing 25-10 )108585 *Please message us on order or send us a message if you need 16 or 10mm2 direct contacts. You will normally get a slightly better crimp by using reducers with bigger contact having thicker crimp area.
With locations in Germany, China and the USA, the REMA Group is one of the international technology leaders in the field of high-current contact systems. REMA develop and produce connector systems for charging electric vehicles, high-current connection materials and crimping tools as well as technologically advanced user interfaces with integrated electronics.
