Albright SW80B-1648 Single-Acting Solenoid Contactor
Specifications:
• Voltage: 125V continuous • Mounting: Integral bracket fitted • Winding: Vacuum-impregnated • Insulation: Coil insulators fitted • Connections: 24-inch long flying leads coil connection
Features:
• Design: The SW80 series is designed for direct current loads, particularly for motors used in small electric vehicles like light industrial trucks and powered invalid cars. • Contacts: Equipped with double-breaking contacts with Silver-alloy contact tips, which are weld-resistant, hardwearing, and offer excellent conductivity. • Cost: Economically priced, they compare favorably with sealed automotive-style solenoid switches that cannot be serviced or inspected for contact wear. • Auxiliary Switch Kit: Part number 2070-124.
Dimensions:
• Height: 94mm (including terminals and coil base cap) • Coil Width: 41mm • Cap Width: 50.5mm • Cap Depth: 39mm
Magnetic Blowouts:
• These contactors have a double break configuration with magnetic blowouts (denoted by the ‘B’ suffix in the SW80 range) across both contact gaps. This allows for quick rupture of high currents, minimizing arcing time. Note that the blowouts make the contacts polarity sensitive, and the positive markings on the top cover must be observed.
Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Specifications
Device Type
NO - SP - ST
Voltage
125V D.C.
Coil Type
Continuous
Amps
100 Amps
Coil Resistance (Ohms)
1500
Pull-In Voltage (V)
75.0 Max.
Drop Out Voltage (V)
32.0 Max.
Coil Power Dissipation (W)
10.42
Typical Pull-In Time
20ms
Typical Voltage Drop Per PoleAcross New Contacts At 100A
40mV
Operating Ambient Temperature
-40 to +60℃
Weight
430g
Application
Interrupted
Uninterrupted
Thermal Current Rating
100A
125A
Intermittent Current Rating:
30% Duty
185A
230A
40% Duty
160A
200A
50% Duty
140A
175A
60% Duty
130A
160A
70% Duty
120A
150A
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case.
Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Genuine SW80B-6 Albright 24V Solenoid Switch. The SW80B-6, a Albright SW80 -series contactor with magnetic blowouts - B) fitted, has been developed for direct current loads, including motors as used on different kind of electric vehicles like industrial tr
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
About Intermittent - Int.) SW82-1 Solenoids Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods. The contactors are compact in size and are fully serviceable with a full range of spare parts available. The SW82 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or by purchasing mounting brackets. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Genuine SW82-122P ALBRIGHT 28V 100A CO DC - COntactor. The SW82-122P, a Albright SW82 type of contactor has been designed for direct current loads, including motors as used on electric vehicles like industrial fork lift trucks and pallet movers. Developed f
Genuine SW82-122P ALBRIGHT 28V 100A CO DC - COntactor. The SW82-122P, a Albright SW82 type of contactor has been designed for direct current loads, including motors as used on electric vehicles like industrial fork lift trucks and pallet movers. Developed f
About Intermittent - Intermittent SW82-3 Solenoid
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods. The contactors are compact in size and are fully serviceable with a full range of spare parts available. The SW82 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or by purchasing mounting brackets. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
About Continuous - CO.) SW82-4 Solenoids Continuous contactors by design are predominantly for drive functions on vehicles, they switch slower than intermittent solenoids and are recommended for prolonged contact periods. The contactors are compact in size and are fully serviceable with a full range of spare parts available. The SW82 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or by purchasing mounting brackets. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
About Intermittent - Int.) SW84-1 Solenoids Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods. The SW84 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or mounting brackets purchased as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. Please note Normally Closed contacts are not suited to make and break load.

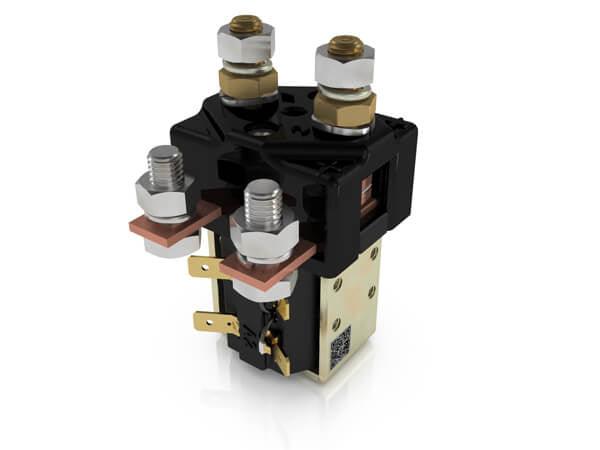

Albright SW84-466L 12V DC
The Albright SW84-466L 12V Pump Contactor is a robust and dependable choice for efficient pump control. Known for its superior pump control performance, this contactor ensures smooth, uninterrupted operation, boosting productivity while helping to lower energy expenses.
Also known with the following references:
Logitrans 982097 - The Logitrans Albright SW84-466L 12V Pump Contactor is compatible with the following machine: Logitrans EHL1004

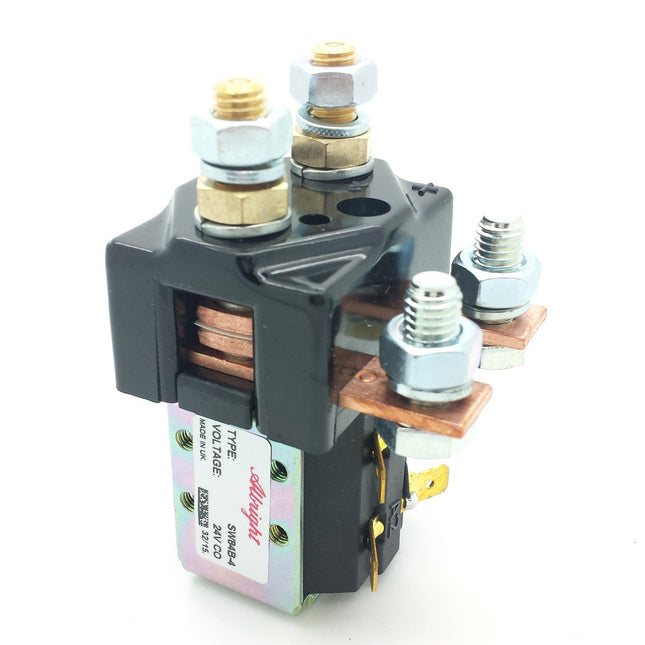

SW84B-4 Albright
Magnetic Blowouts
These contactors are fitted with magnetic blowouts - denoted by 'B' suffix in the SW84B range) across contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.
About Continuous - CO.) SW84B-4 Solenoids
Continuous contactors by design are predominantly for drive functions on vehicles, they switch slower than intermittent solenoids and are recommended for prolonged contact periods.
The SW84 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or mounting brackets purchased as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. Please note Normally Closed contacts are not suited to make and break load.

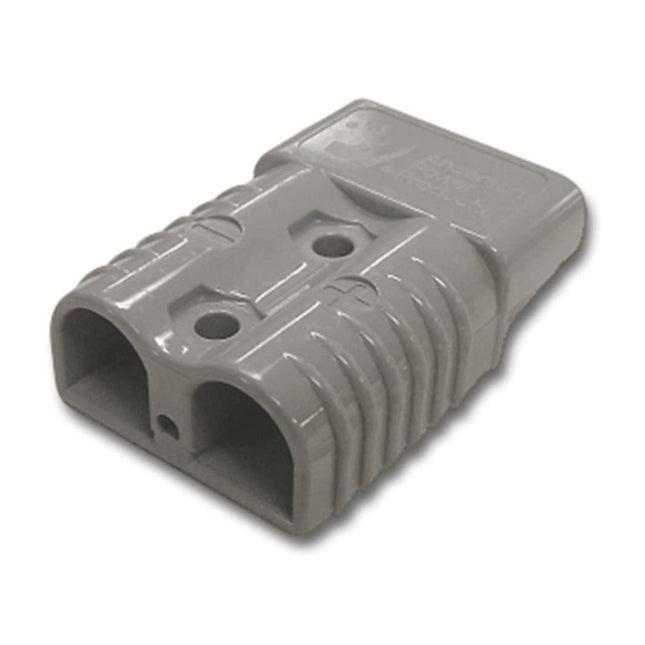

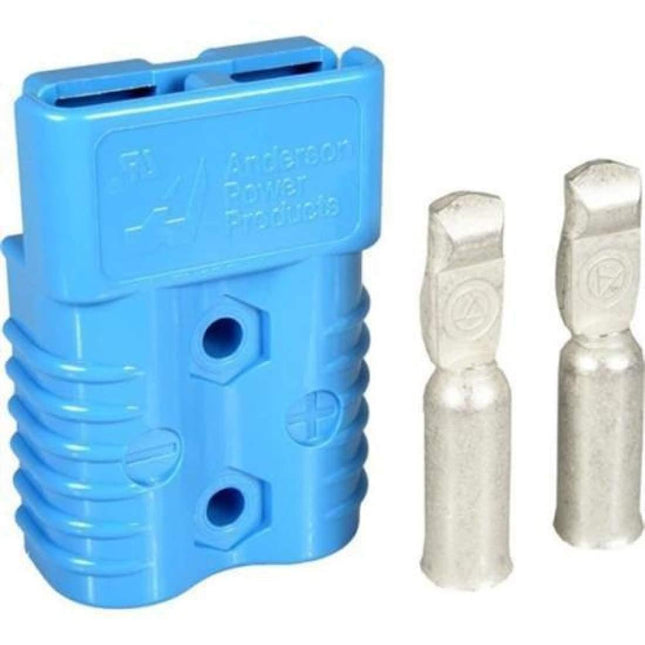

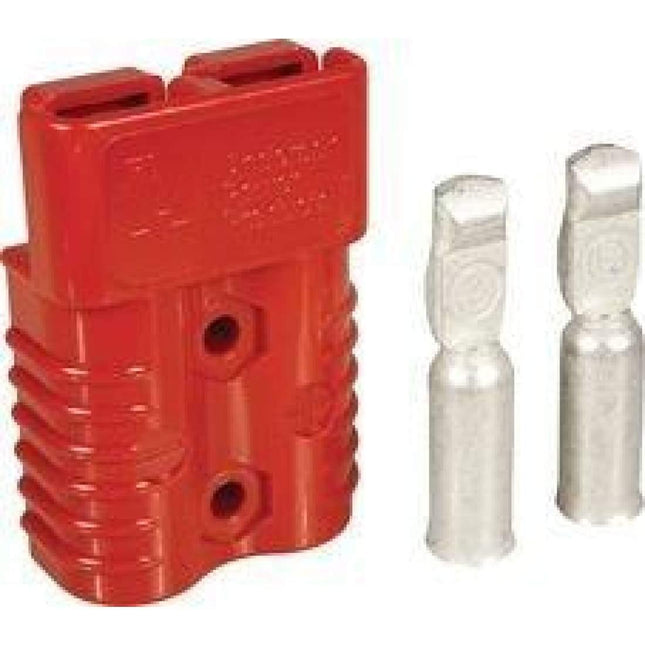

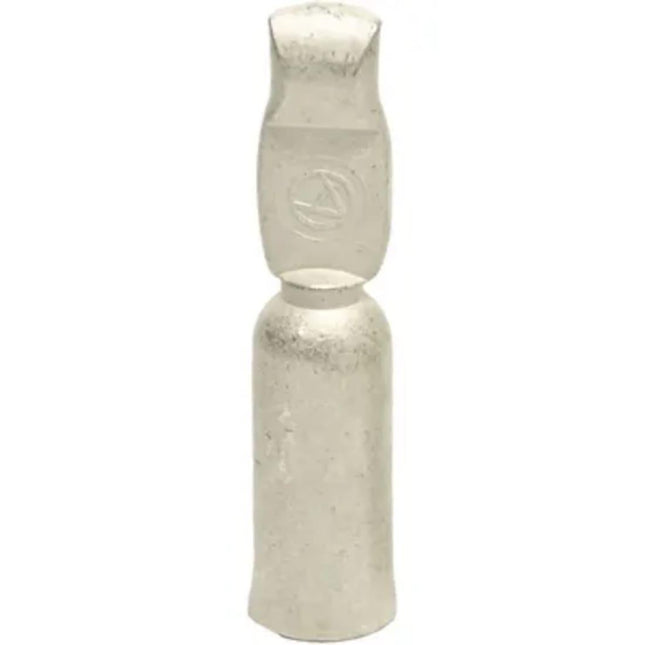

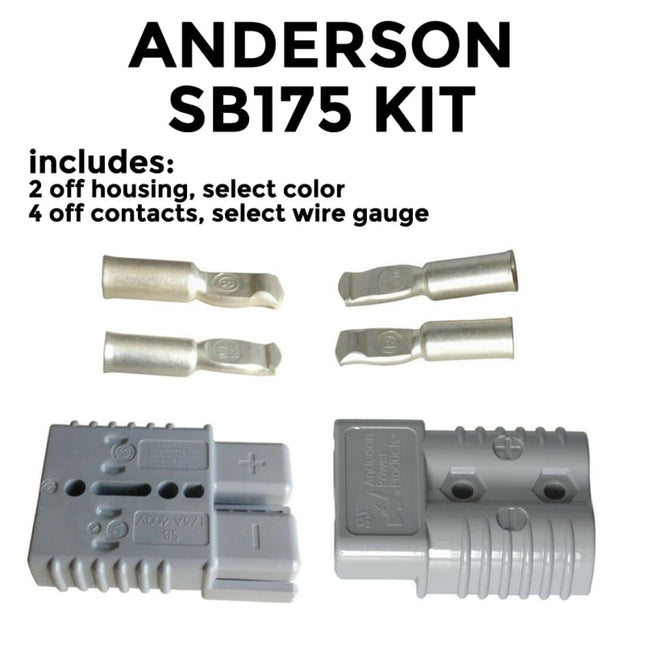

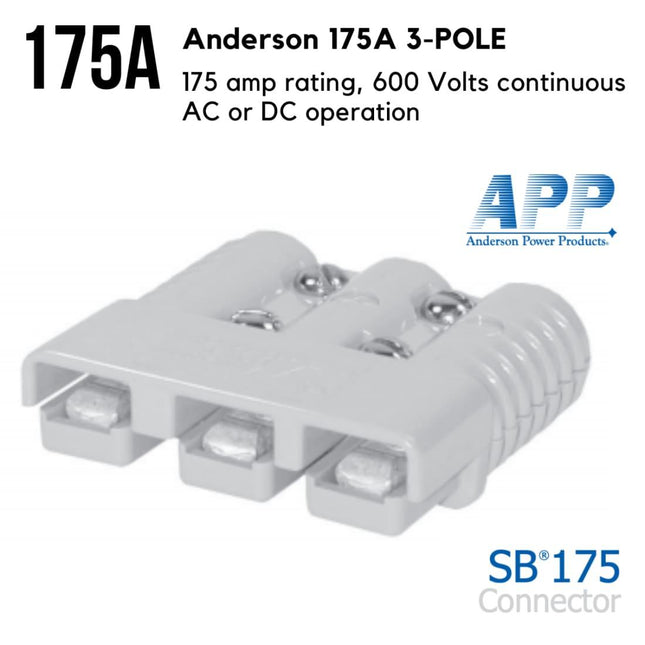

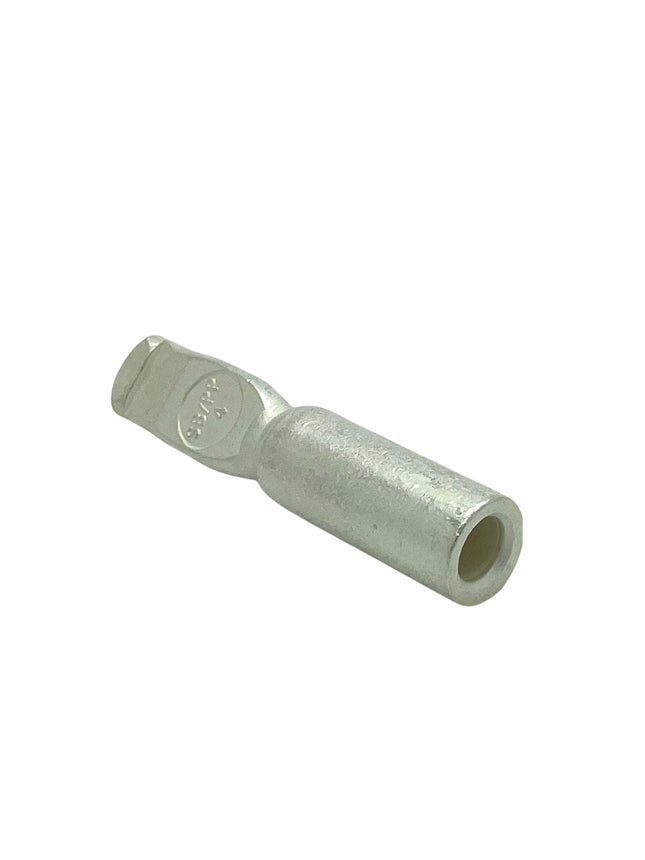

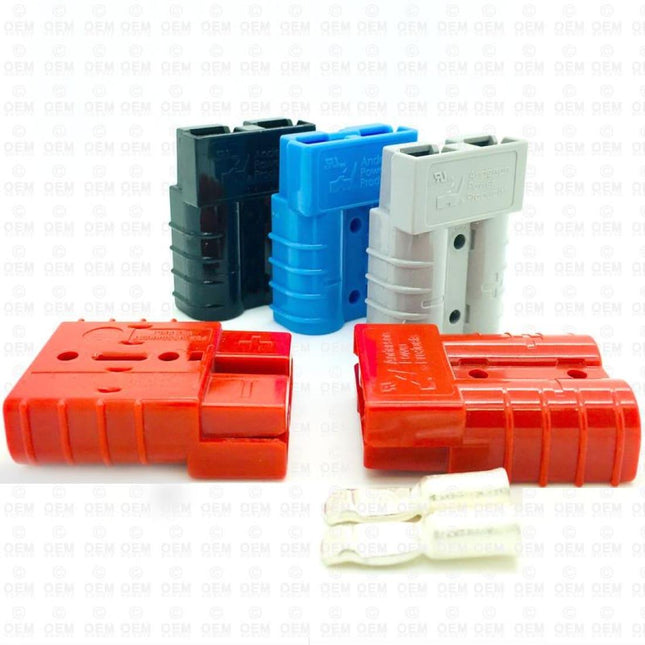

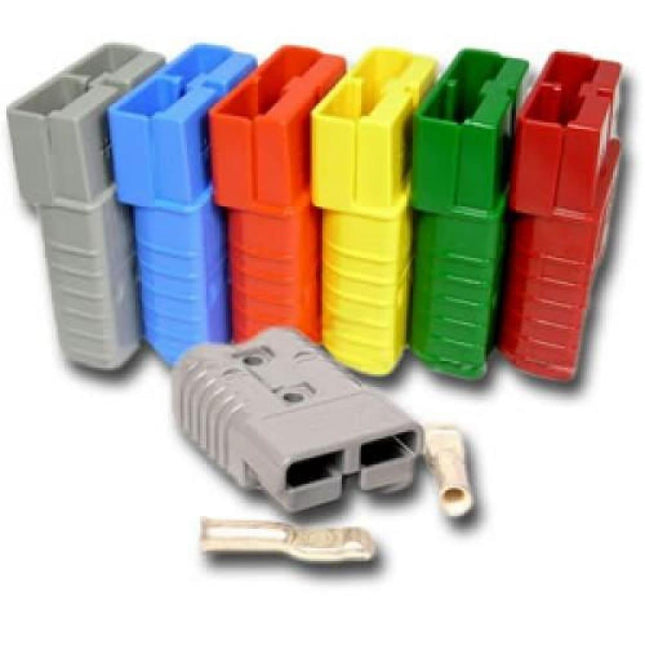

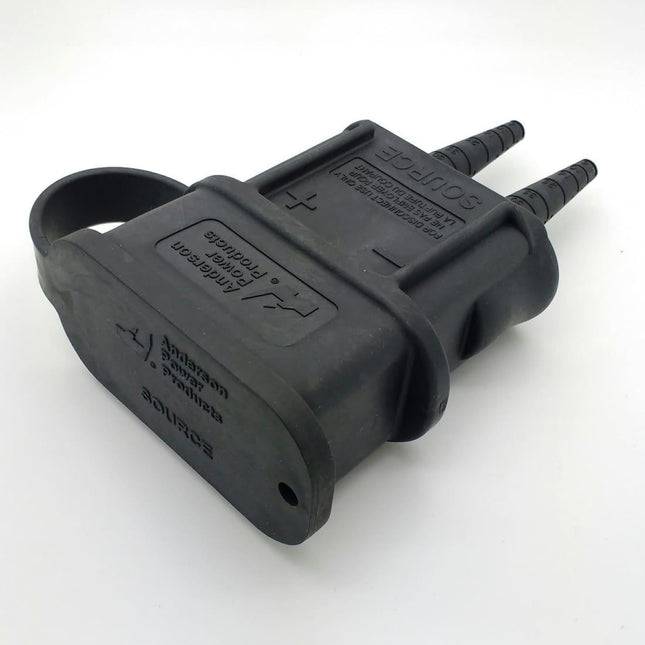

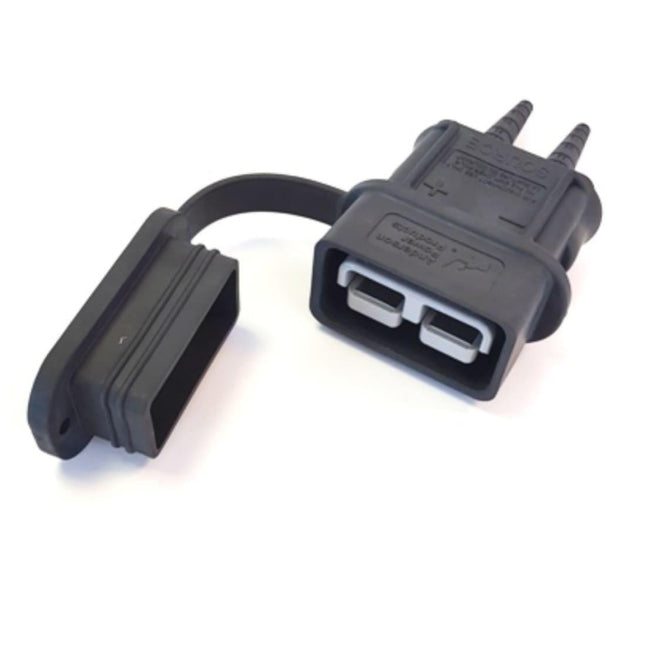

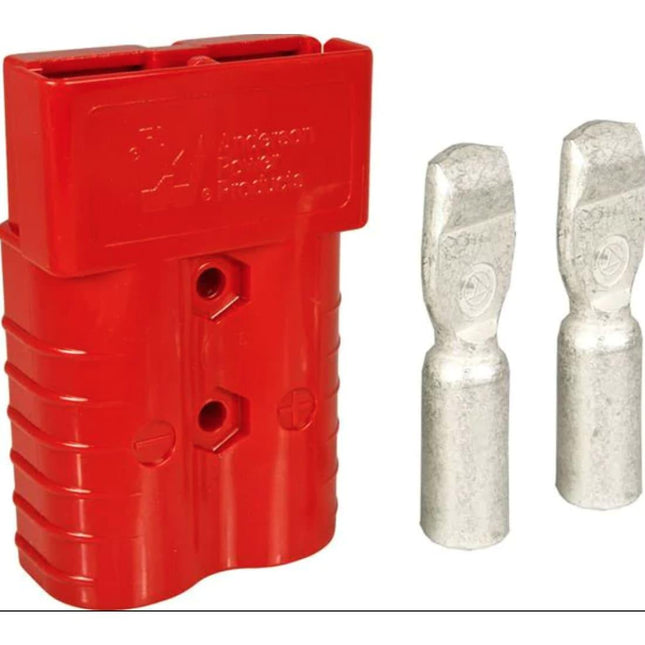

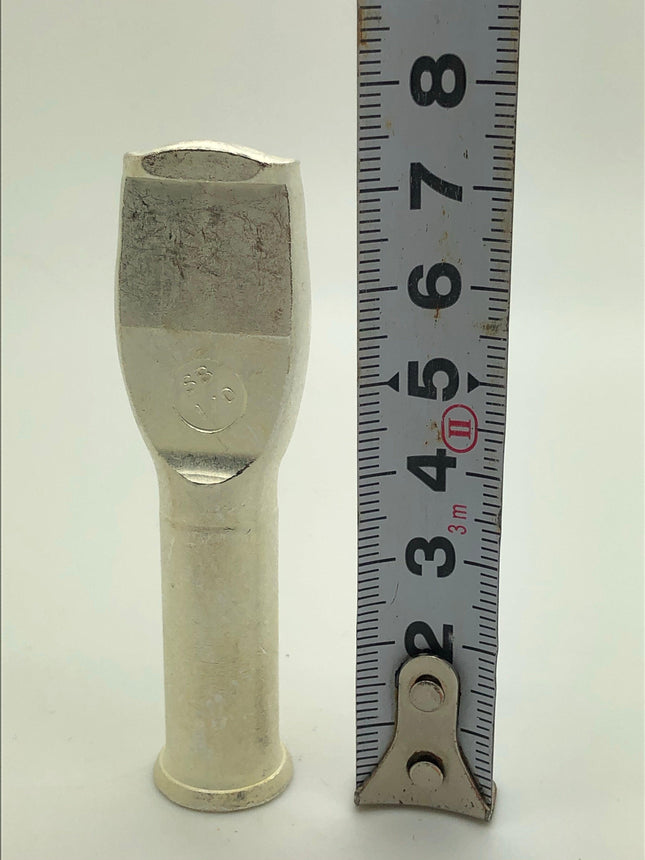

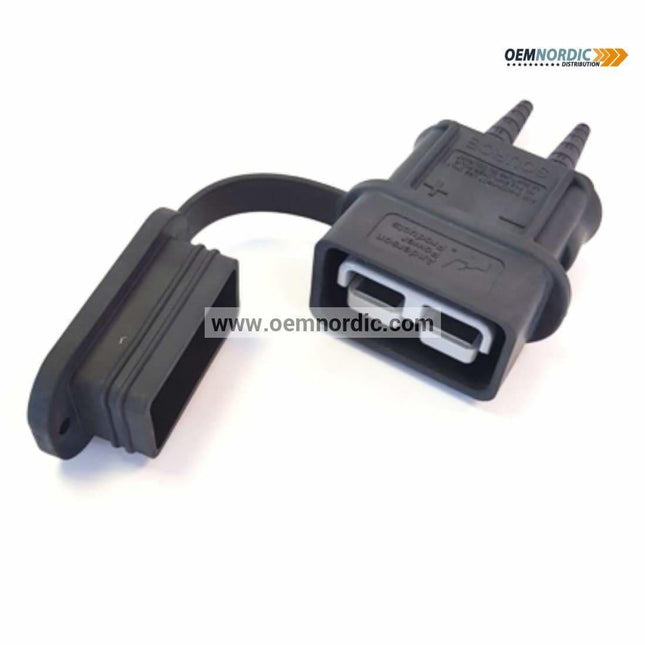

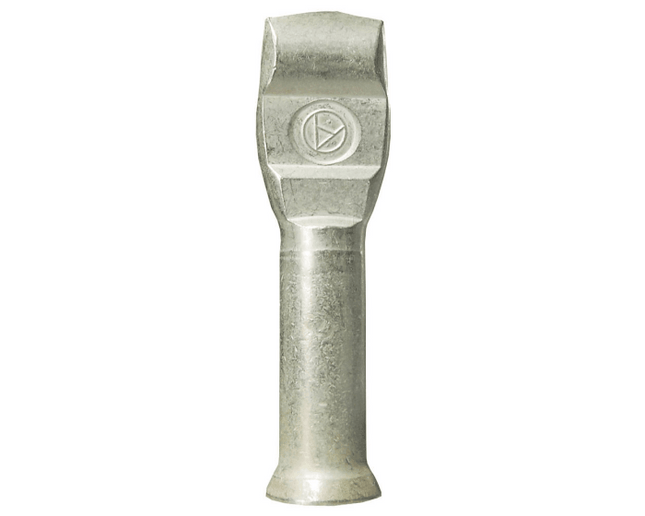

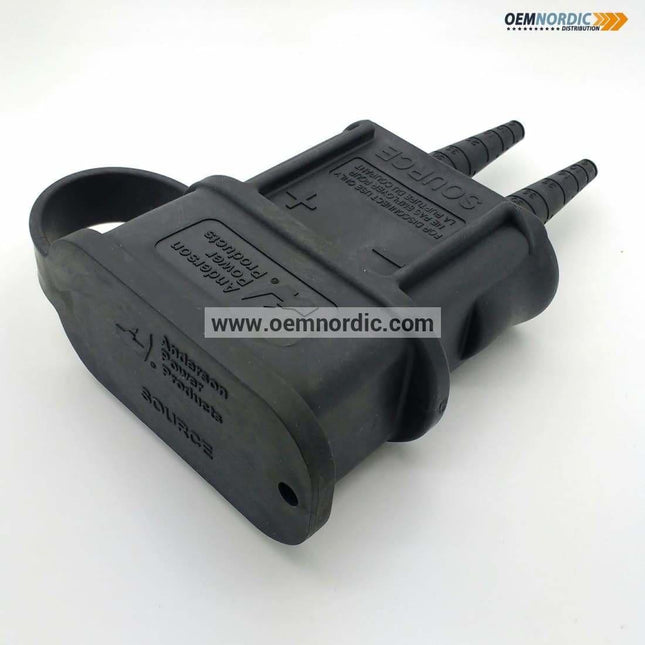

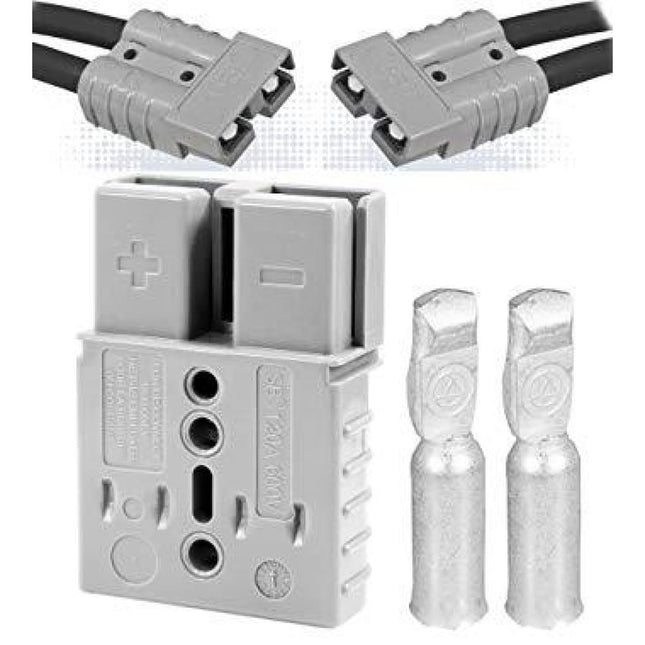

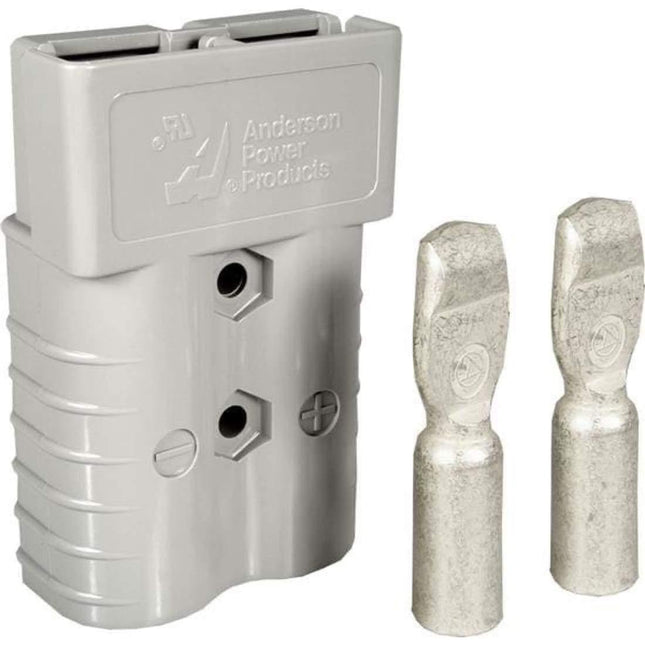

Original SB175 Anderson Contact ( sold per piece ) Based on the design pioneered by Anderson in 1953, APP® ’s two pole SB® connectors set the standard for DC power distribution and battery connections. SB® 175 connectors feature a one-piece plastic housing using stainless steel springs to hold low-resistance contacts in place.
In case you are using metric cables, here is a quick reference table to pick the correct version of contact:
AWG and the suitable metric cable1/0 AWG = 50mm21 AWG = 35-50 mm2 (thin 50mm2 or thick/hard 35mm2)2 AWG = 35mm24 AWG = 25mm26/8 AWG = 16mm2
SBS 50 -series Anderson connector
Polycarbonate housings feature 2 positions all finger proof. Genderless design mates with itself. Mechanical keys are color coded.
The patented SBS® connector family is designed to provide high power in a compact ergonomic housing with protection against accidental contact with live circuits.
This is of particular importance in applications where DC voltages exceed 30 volts and can be health threatening.
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps.
The SBS®75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps.
The SBS®75G features a third first-mate last-break ground or power contact.
All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface can safely be used in through panel applications and minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing

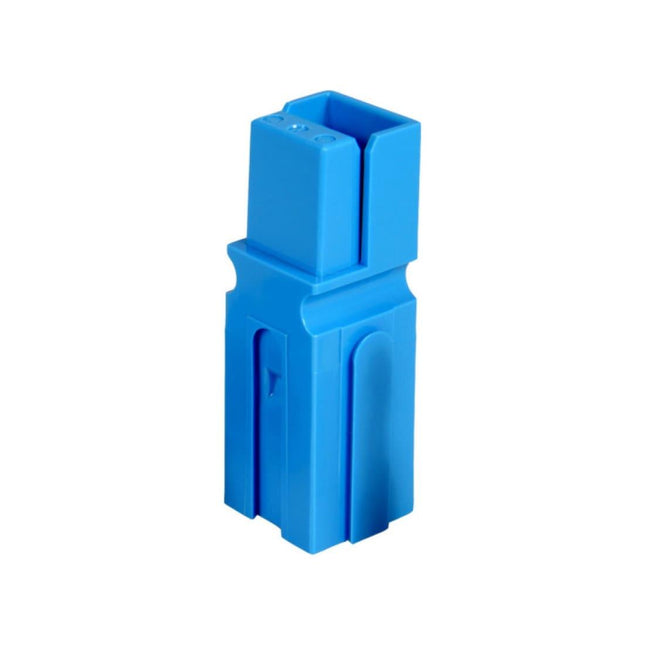

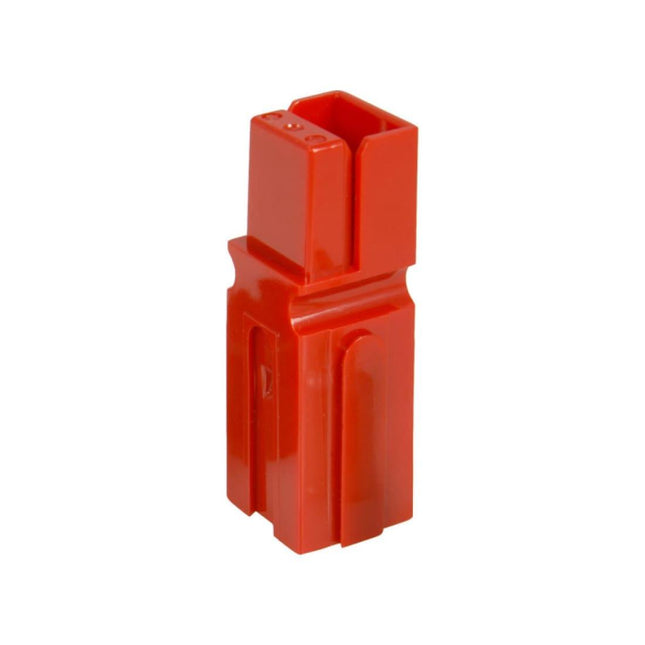

PP75 series Powerpole® housings can be used for wire-to-wire, wire-to-board, and wire-to-busbar applications.
Wire sizes from #16 AWG (1.3 mm²) to #6 (13.3 mm²) offer power capabilities up to 120 amps per pole.
Large Wire Range Accommodates up to #6 (10mm²) Wire Reducing bushings allow as small as #16 (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs

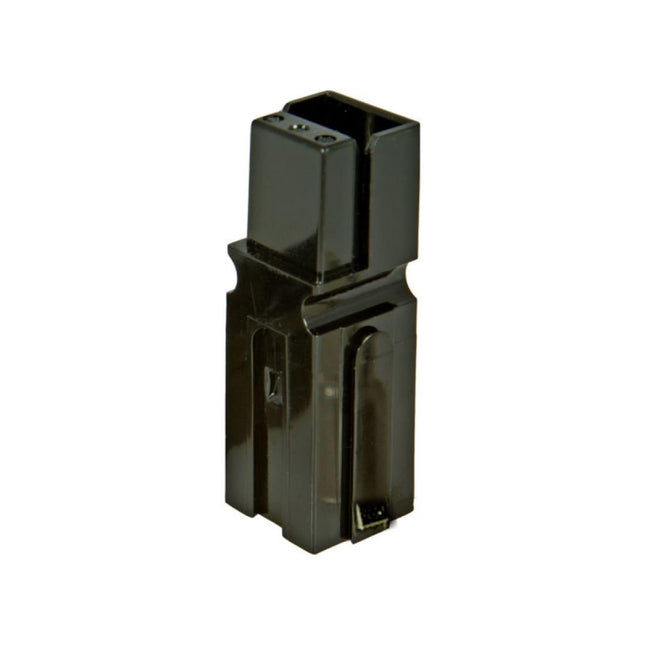

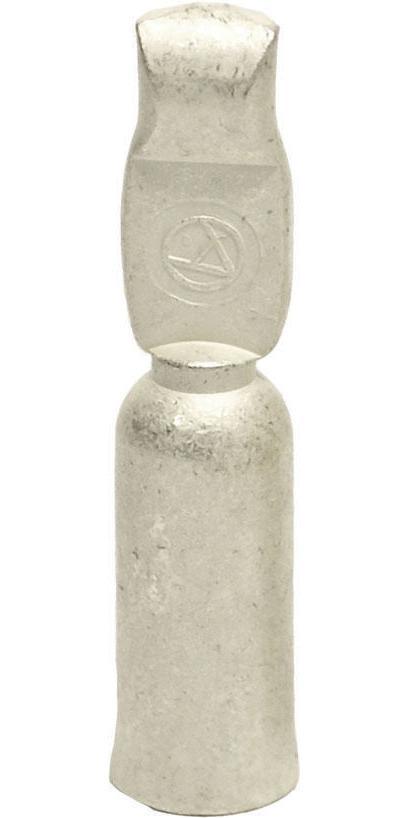

PP120 series Powerpole® housings can be used for wire-to-wire, wire-to-board, and wire-to-busbar applications.
PP120 series Powerpole® housings are designed to accommodate up to 1/0 AWG (50 mm²) wires and handle high currents up to 240 amps. Reducing bushings allow PP120 to accept down to 8 AWG (10 mm²) wires.
Multiple colours of stackable housings combine with low resistance flat wiping technology to offer powerful connection capability.
• Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 (10 mm²) wire to be used
• Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
• UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Available in all these colours:
Blue 1321-BKBlack 1321G1-BKWhite 1321G2-BKRed 1321G3-BKGreen 1321G4-BKOrange 1321G5-BKBrown 1321G6-BKYellow 1321G7-BKGray 1321G8-BK
