Professional inverter 24V to 230V AC for rough environmental conditions.
▪ IN: 24V / OUT: 230V/50Hz▪ Input: 2x open cable ends▪ Output: open cable ends
Weight: 8 kg
waterproof
starts automatically, 5mA standby
perfectly suitable for fixed installation in service vehicle, separate socket
100% overload possible
Attention: no sinus, but almost all consumers can be connected
Input
voltage:
20 ... 30V DC
Output voltage:
225V +3% / -5%, 50Hz quartz generated (115V/ 60Hz optional)
Output power:
600VA permanent, 1,200VA 10min, 12A (24A at 115V) 4sec
Connection input:
2x open cable end
Connection output:
open cable end
Cable length input:
2x app. 1200mm
Cable length output:
app. 2300mm
Current without load:
standby current 5mA RMS at 12V
Switching level:
start at 1W load
Current at 1W load:
0.6A at 26V
Overvoltage:
>33V, self-resetting
Undervoltage:
off at 20V, on at 22V
Efficiency:
app. 95% at 100% load / app. 80% at 10% load / app. 80% at
200% load
Electrical protection:
against reverse polarity, overtemperature, short circuit
Mechanical protection:
aluminum casting case
Dimensions:
260 x 160 x 90mm (without screwings) without cable outlet
Mass:
app. 8,000g incl. Cables
Signalform:
step weave with fast PWM-modulation (to cos phi 0.2 at 50%
load)
Safety:
potential division with potential compensation (protective
conductor)
Features:
The M12™ green cross line laser with plumb points offers horizontal leveling, vertical alignment, and plumb point transfer from floor to ceiling. It uses high-intensity green diodes for up to 4x better visibility than red lasers, with a 38 m range (up to 100 m with a detector). Powered by an M12 B3 battery, it runs for 15+ hours. The 3-mode pendulum system allows manual, self-leveling, and locked transport modes. Built with an integrated magnetic bracket for 360° rotation, it is robust, with IP 54 protection, and supports MILWAUKEE® M12™ batteries.
• Functionality: Offers horizontal leveling, vertical alignment, and plumb point transfer.
• Visibility: Green diodes provide up to 4x better visibility compared to red lasers.
• Range: 38 m working range (100 m with detector).
• Battery life: 15+ hours on M12 B3 battery.
• Pendulum modes: Manual, self-leveling, and transport lock.
• Bracket: Magnetic with 360° rotation, tripod threads, and micro control knob.
• Durability: IP 54 rating, water/debris resistant, withstands 1 m drops.
• Battery system: Compatible with all M12™ batteries.
• Accessories: Track clip, high visibility target plate.

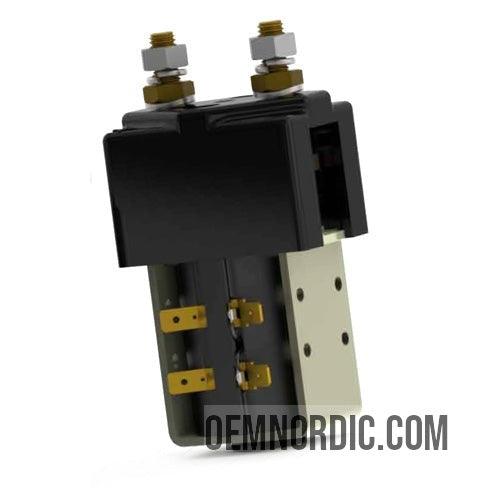

Reliable Single-Acting Solenoid Contactor
Albright SW80 100A or 125A, SPST, Normally Open, DC Contactor For High-Powerthis is the standard version and most common version of SW80 -type/series and is called just an "SW80"
Features
100 or 125A Continuous Duty Rating
Normally Open, SPST, DC Contactor
UL Recognized for Electric Vehicles (100A)
UL Recognized for Power Systems (125A)
In the realm of industrial automation and control systems, the demand for reliable and efficient components is paramount. The DC Contactor SW80 100A emerges as a standout solution, particularly for high-power applications requiring precise control and durability. This single-acting solenoid contactor is designed to deliver exceptional performance, ensuring seamless operation in various industrial settings.
Key Features and Specifications
The DC Contactor SW80L 100A is engineered with precision to meet the rigorous demands of industrial applications. Its key features and specifications include:
Voltage and Current Rating: This contactor operates at a nominal voltage of your selection from 6V to 96V DC, with a high current handling capacity of 100A, making it suitable for a wide range of applications that require high power switching.
Single-Acting Solenoid Mechanism: The single-acting solenoid design allows for reliable operation, with a straightforward engage and disengage mechanism. This simplicity ensures robust performance and reduces the potential for mechanical failures.
Durability: Constructed with high-quality materials, the SW80 contactor is built to withstand harsh industrial environments. It features excellent resistance to vibration, shock, and temperature variations, ensuring a long service life.
Compact Design: Despite its powerful capabilities, this contactor boasts a compact design, making it easy to integrate into existing systems without requiring significant space.
Versatility: The SW80 100A is versatile, and suitable for a variety of applications, including electric vehicles, material handling equipment, renewable energy systems, and industrial machinery. Its design ensures compatibility with a broad range of control systems.
Applications
The DC Contactor SW80 100A is particularly well-suited for applications where reliable high-power switching is crucial. These include:
Electric Vehicles (EVs): It can be used for controlling the main propulsion system, auxiliary systems, and charging circuits in electric vehicles.
Renewable Energy Systems: In solar and wind power installations, it serves to manage the flow of electricity from the generation source to the storage units or grid.
Material Handling: For equipment such as forklifts and conveyor systems, this contactor ensures efficient and safe power management.
Industrial Automation: It plays a critical role in the control systems of various machinery, providing the necessary power-switching capabilities for automated processes.
Conclusion
The DC Contactor SW80 100A is an essential component for industries looking for a reliable, high-performance single-acting solenoid contactor. Its robust design, combined with high power handling capacity and versatility, makes it a preferred choice for a wide range of applications. Whether it's for electric vehicles, renewable energy systems, material handling equipment, or industrial automation, this contactor ensures efficient, safe, and reliable operation, contributing to the overall performance and longevity of the system it is a part of.
Reliable Single-Acting Solenoid Contactor
Albright SW80L 100A or 125A, SPST, Normally Open, DC Contactor For High-Power with Extra Large Tips/Contact surfaces, therefore "L" is added to SW80
Features
100A Intermittent or 125A Continuous Duty Rating
Normally Open, SPST, DC Contactor
UL Recognized for Electric Vehicles (100A)
UL Recognized for Power Systems (125A)
Applications of SW80L
In the realm of industrial automation and control systems, the demand for reliable and efficient components is paramount. The DC Contactor SW80 100A emerges as a standout solution, particularly for high-power applications requiring precise control and durability. This single-acting solenoid contactor is designed to deliver exceptional performance, ensuring seamless operation in various industrial settings.
Key Features and Specifications
The DC Contactor SW80L 100A is engineered with precision to meet the rigorous demands of industrial applications. Its key features and specifications include:
Voltage and Current Rating: This contactor operates at a nominal voltage of your selection from 6V to 96V DC, with a high current handling capacity of 100A, making it suitable for a wide range of applications that require high power switching.
Single-Acting Solenoid Mechanism: The single-acting solenoid design allows for reliable operation, with a straightforward engage and disengage mechanism. This simplicity ensures robust performance and reduces the potential for mechanical failures.
Durability: Constructed with high-quality materials, the SW80 contactor is built to withstand harsh industrial environments. It features excellent resistance to vibration, shock, and temperature variations, ensuring a long service life.
Compact Design: Despite its powerful capabilities, this contactor boasts a compact design, making it easy to integrate into existing systems without requiring significant space.
Versatility: The SW80 100A is versatile, and suitable for a variety of applications, including electric vehicles, material handling equipment, renewable energy systems, and industrial machinery. Its design ensures compatibility with a broad range of control systems.
Applications
The DC Contactor SW80 100A is particularly well-suited for applications where reliable high-power switching is crucial. These include:
Electric Vehicles (EVs): It can be used for controlling the main propulsion system, auxiliary systems, and charging circuits in electric vehicles.
Renewable Energy Systems: In solar and wind power installations, it serves to manage the flow of electricity from the generation source to the storage units or grid.
Material Handling: For equipment such as forklifts and conveyor systems, this contactor ensures efficient and safe power management.
Industrial Automation: It plays a critical role in the control systems of various machinery, providing the necessary power-switching capabilities for automated processes.
Conclusion
The DC Contactor SW80 100A is an essential component for industries looking for a reliable, high-performance single-acting solenoid contactor. Its robust design, combined with high power handling capacity and versatility, makes it a preferred choice for a wide range of applications. Whether it's for electric vehicles, renewable energy systems, material handling equipment, or industrial automation, this contactor ensures efficient, safe, and reliable operation, contributing to the overall performance and longevity of the system it is a part of.

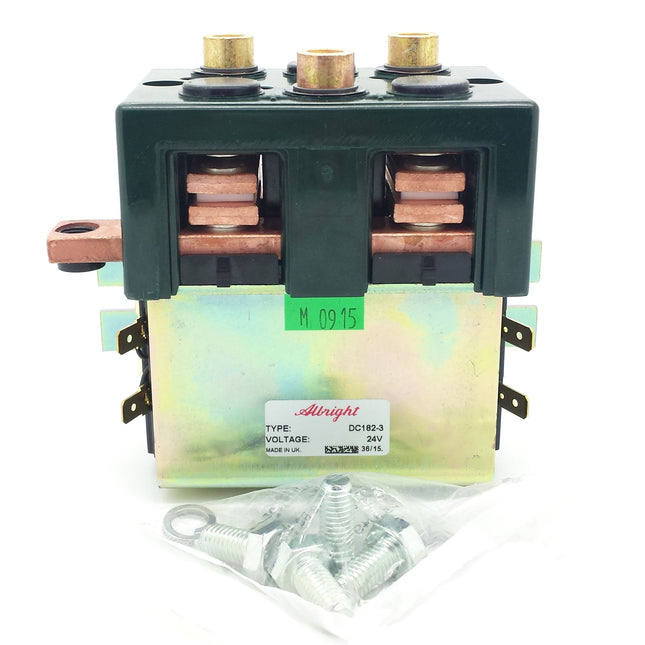

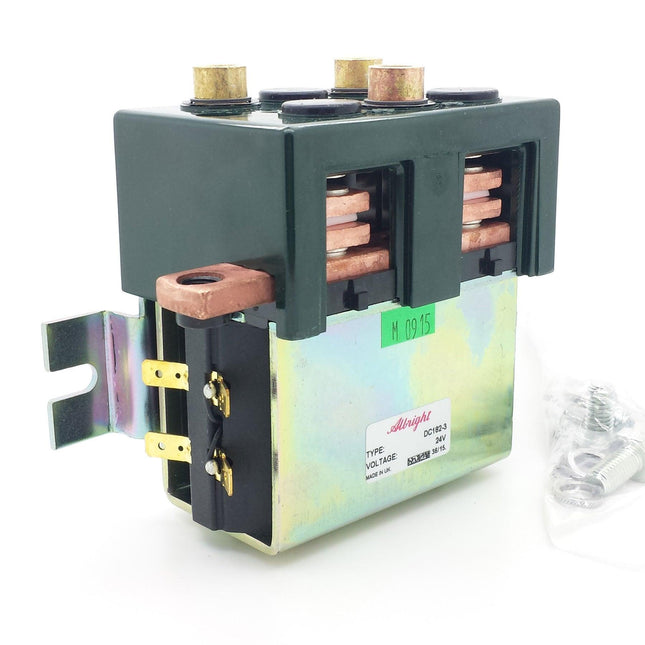

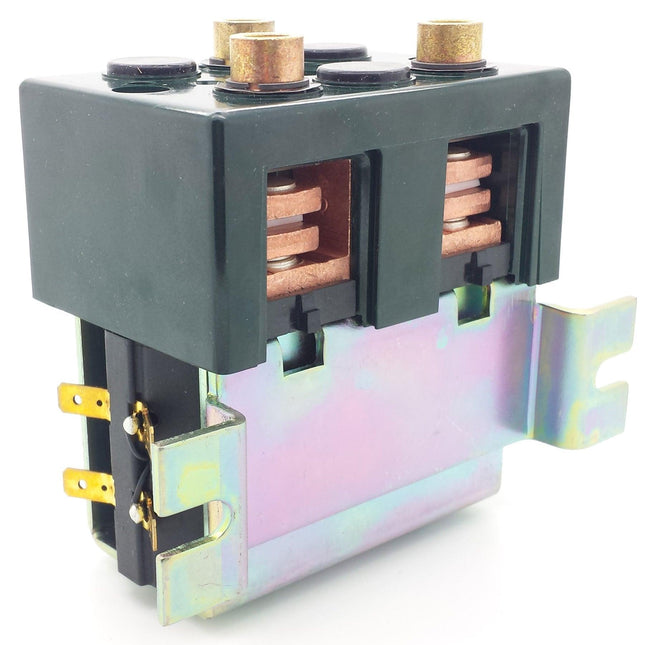

DC182-3 Motor Reversing Solenoid
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
DC182-490 Albright Motor Reversing Solenoid
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and flying lead coil energising connection. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
The DC182-490 Albright 150A 12V DC - INT Monoblock Motor Reversing Contactor is a specific type of electrical component used for controlling the direction of rotation of a DC motor. Let's break down what each part of the name refers to:
DC182-490: This likely refers to the model number or product code of the contactor. It's the identifier used by the manufacturer to distinguish this particular model from others they produce.
Albright: This is the brand name of the contactor. Albright is a well-known manufacturer of electrical contactors and other related components.
150A: This indicates the maximum current rating of the contactor, which in this case is 150 amperes. This denotes the maximum amount of current that the contactor is designed to handle safely.
12V DC: This specifies the voltage rating of the contactor. It's designed to operate with a DC (direct current) voltage of 12 volts.
INT: This could stand for "interruptible" or "intermittent," indicating that the contactor is suitable for applications where the current flow may be interrupted or varies periodically.
Monoblock Motor Reversing Contactor: This describes the type and function of the contactor. It's designed to control the direction of rotation of a motor, meaning it can reverse the polarity of the current flowing through the motor to change its direction.
The DC182-490 Albright 150A 12V DC - INT Monoblock Motor Reversing Contactor is a heavy-duty electrical component manufactured by Albright, capable of handling up to 150 amperes of direct current, specifically designed for controlling the direction of rotation of a motor in applications where interruptions or intermittent operations may occur.
DC182-491 Albright Motor Reversing Solenoid - Intermittent (INT)
The DC182-491 Albright 150A 24V DC - INT Motor Reversing Solenoid Contactor is a specialized electrical component designed for controlling the direction of rotation of a motor in applications requiring a 24-volt DC power supply. Let's delve into the details of this contactor:
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
DC182-491: This alphanumeric code serves as the unique identifier or model number for this particular contactor within Albright's product range.
Albright: As mentioned before, Albright is a reputable manufacturer of electrical contactors and related components, known for producing high-quality products.
150A: This denotes the maximum current rating of the contactor, which is 150 amperes. It indicates the maximum amount of current the contactor is designed to handle safely in its operational environment.
24V DC: Unlike the previous example, this contactor is specifically designed to operate with a DC voltage of 24 volts. This voltage powers the coil within the contactor, which is used to control the switching of the main circuit.
INT: Similar to the previous description, "INT" signifies that this contactor is suitable for intermittent or interruptible operations, meaning it can handle applications where the current flow may vary or be temporarily interrupted.
Motor Reversing Solenoid Contactor: This indicates the primary function of the contactor, which is to control the direction of rotation of a motor. The solenoid within the contactor is responsible for reversing the polarity of the current flow to change the motor's direction.
Regarding voltage compatibility, the main circuit can be operated at any DC voltage up to a maximum of 96 volts with blowout capability. However, it's important to note that 48 volts is the recommended maximum voltage for optimal performance and safety.
DC182-491 Albright 150A 24V DC - INT Motor Reversing Solenoid Contactor is a heavy-duty electrical component designed by Albright for controlling the motor direction in applications requiring a 24-volt DC power supply. It boasts a maximum current rating of 150 amperes and is suitable for intermittent operations. Additionally, it offers flexibility in main circuit voltage compatibility, with a recommended maximum of 48 volts for best performance and safety.
The DC182 is a monoblock construction, resulting in a neat compact design that is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and a flying lead coil energising connection. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
The Albright DC182-619 Contactor is a robust and reliable 24-volt forward/reversing contactor designed for use in DC motor control applications. This contactor is particularly suited for applications where the direction of motor rotation needs to be reversed, such as in electric vehicles, industrial machinery, and material handling equipment.
Key Features:
Forward/Reverse Operation: The DC182-619 allows for the smooth and efficient reversal of motor direction, making it ideal for applications requiring precise control over motor movement.
24-Volt Compatibility: Specifically designed to operate at 24 volts, this contactor is well-suited for systems that run on this common voltage level, ensuring compatibility with a wide range of equipment.
Durable Construction: Built to handle demanding environments, the DC182-619 is known for its durability and long service life. It is engineered to withstand high levels of electrical and mechanical stress, making it a reliable choice for heavy-duty applications.
High Current Rating: The contactor is capable of handling significant current loads, ensuring that it can manage the power requirements of various DC motors without compromising performance.
Versatile Applications: Due to its forward/reversing capability, the DC182-619 is versatile and can be used in numerous applications, including electric forklifts, golf carts, winches, and other equipment requiring directional motor control.
Applications:
The Albright DC182-619 Contactor is a popular choice in industries that require reliable motor control. Its ability to efficiently switch between forward and reverse directions makes it an essential component in the following applications:
Electric Vehicles (EVs): Used in the drive systems of electric vehicles to control the direction of the motor.
Material Handling Equipment: Ensures precise control in forklifts, pallet trucks, and other material handling devices.
Industrial Machinery: Used in various industrial machines that require controlled reversing of motors.
Marine Applications: Suitable for use in electric boat propulsion systems.
DC182-656 Albright Motor Reversing Solenoid
The DC182-656 Albright 150A 12V DC - INT Motor Reversing Contactor is a robust electrical component designed for controlling the direction of rotation of a motor in applications that require a 12-volt DC power supply. Here's a breakdown of its specifications:
DC182-656: This alphanumeric code serves as the specific model number or identifier for this contactor within Albright's product range.
Albright: Albright is the manufacturer of this contactor. They are recognized for producing high-quality electrical components, including contactors, solenoids, and related products.
150A: This indicates the maximum current rating of the contactor, which is 150 amperes. It specifies the maximum amount of current that the contactor is designed to handle safely during operation.
12V DC: This specifies the voltage rating of the contactor. It is designed to operate with a DC voltage of 12 volts, meaning that the coil within the contactor is powered by a 12-volt DC power supply.
INT: Similar to the previous examples, "INT" suggests that this contactor is suitable for intermittent or interruptible operations, meaning it can handle applications where the current flow may vary or be temporarily interrupted.
Motor Reversing Contactor: This indicates the primary function of the contactor, which is to control the direction of rotation of a motor. By reversing the polarity of the current flow, the contactor enables the motor to change its direction of rotation.
This contactor is well-suited for various industrial and automotive applications where precise control over motor direction is required. With its 150-ampere current rating and 12-volt DC voltage compatibility, it can effectively manage the demands of motors in diverse settings.
In summary, the DC182-656 Albright 150A 12V DC - INT Motor Reversing Contactor is a high-quality electrical component designed by Albright for controlling motor direction in applications requiring a 12-volt DC power supply. It offers reliability, durability, and precise control, making it a suitable choice for a wide range of industrial and automotive applications.
DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using brackets available separately via the M5 mounting holes - 16 off, 8 per side), mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Replacement data:DC182-656 can be used to replace DC182-116

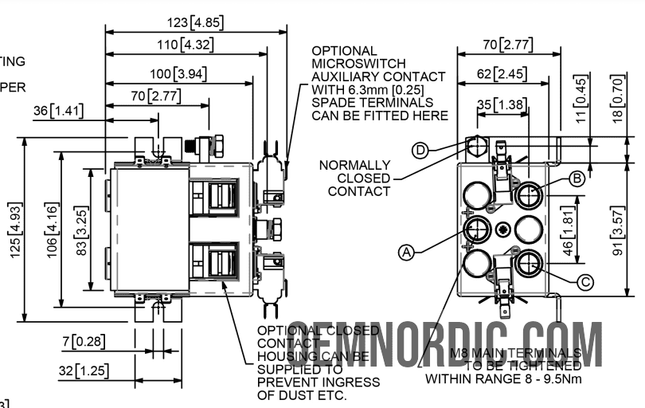

DC182-774L Albright Motor Reversing Solenoid
The DC182-774L Albright 150A 12V DC - INT Motor Reversing Contactor is a robust electrical component designed for controlling the direction of rotation of a motor in applications that require a 12-volt DC power supply. Here's a breakdown of its specifications.
DC182-774L: This alphanumeric code serves as the specific model number or identifier for this contactor within Albright's product range. The "L" indicates the inclusion of large tips.
Albright: Albright is the manufacturer of this contactor, known for producing high-quality electrical components, including contactors, solenoids, and related products.
150A: This indicates the maximum current rating of the contactor, which is 150 amperes. It specifies the maximum amount of current that the contactor is designed to handle safely during operation.
12V DC: This specifies the voltage rating of the contactor. It is designed to operate with a DC voltage of 12 volts, meaning that the coil within the contactor is powered by a 12-volt DC power supply.
INT: This indicates that the contactor is suitable for intermittent or interruptible operations, meaning it can handle applications where the current flow may vary or be temporarily interrupted.
Motor Reversing Contactor: This indicates the primary function of the contactor, which is to control the direction of rotation of a motor. By reversing the polarity of the current flow, the contactor enables the motor to change its direction of rotation.
The inclusion of large tips in this variant of the contactor likely enhances its performance or durability in certain applications, such as those requiring a higher current-carrying capacity or more robust electrical connections.
In summary, the DC182-774L Albright 150A 12V DC - INT | Motor Reversing Contactor is a variant of Albright's motor reversing contactor lineup, specifically designed to accommodate large tips. It offers reliability, durability, and precise control, making it suitable for various industrial and automotive applications where precise control over motor direction is required, along with the capacity to handle higher current loads.
This contactor is well-suited for various industrial and automotive applications where precise control over motor direction is required. With its 150-ampere current rating and 12-volt DC voltage compatibility, it can effectively manage the demands of motors in diverse settings.
In summary, the DC182-774L Albright 150A 12V DC - INT Motor Reversing Contactor is a high-quality electrical component designed by Albright for controlling motor direction in applications requiring a 12-volt DC power supply. It offers reliability, durability, and precise control, making it a suitable choice for a wide range of industrial and automotive applications.
DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using brackets available separately via the M5 mounting holes - 16 off, 8 per side), mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
About the DC182-776L 12V DC INT Motor Reversing Solenoid
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

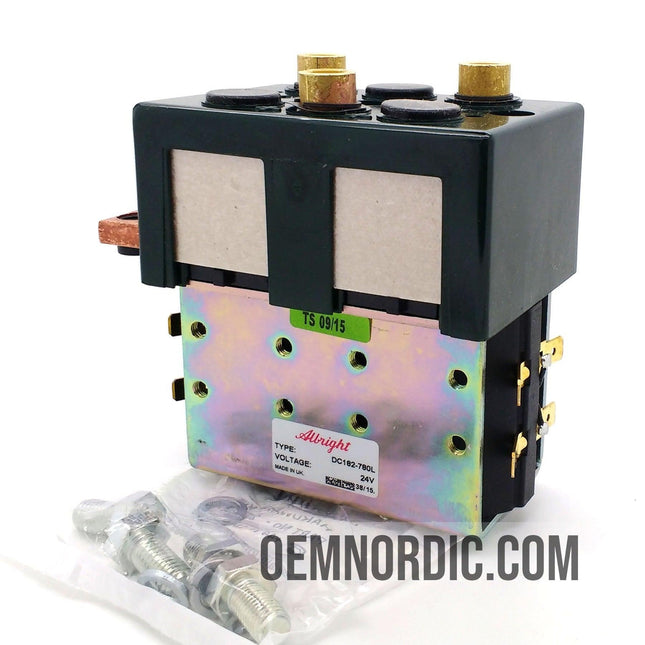

About the DC182-780L Motor Reversing Solenoid
Very Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using brackets available separately via the M5 mounting holes - 16 off, 8 per side), mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Magnetic Blowouts These contactors are fitted with magnetic blowouts - denoted by 'B' suffix in the DC182B range) across contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.About the DC182B-1 Motor Reversing Solenoid Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods. The DC182B is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182B is physically and electrically interchangeable with the SW182B reversing contactor but rewiring will be required. This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Magnetic Blowouts These contactors are fitted with magnetic blowouts - denoted by 'B' suffix in the DC182B range) across contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.About the DC182B-604 Motor Reversing Solenoid Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods. The DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required. This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using brackets available separately via the M5 mounting holes - 16 off, 8 per side), mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

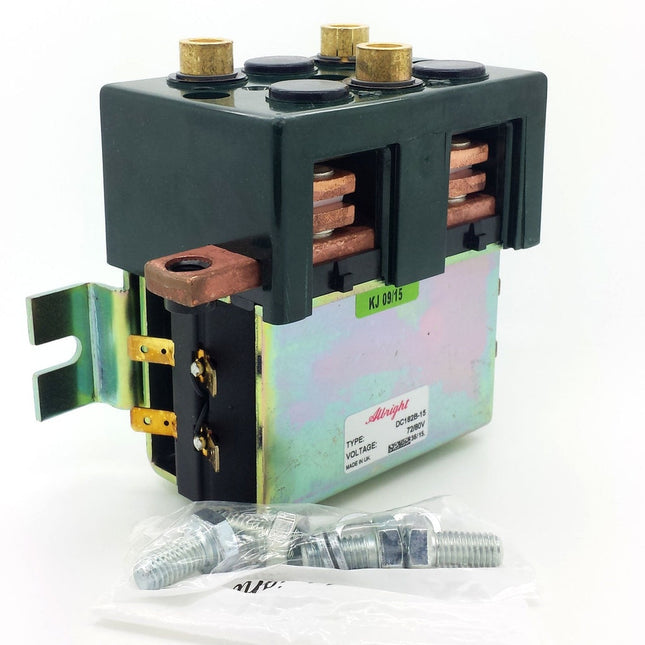

About the DC182B-15 Motor Reversing Solenoid
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182B-15 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182B is physically and electrically interchangeable with the SW182B reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Magnetic Blowouts These contactors are fitted with magnetic blowouts - denoted by 'B' suffix in the DC182B range) across contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.About the DC182B-2 Motor Reversing Solenoid Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods. The DC182B is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182B is physically and electrically interchangeable with the SW182B reversing contactor but rewiring will be required. This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Magnetic Blowouts
These contactors are fitted with magnetic blowouts - denoted by 'B' suffix in the DC182B range) across contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.

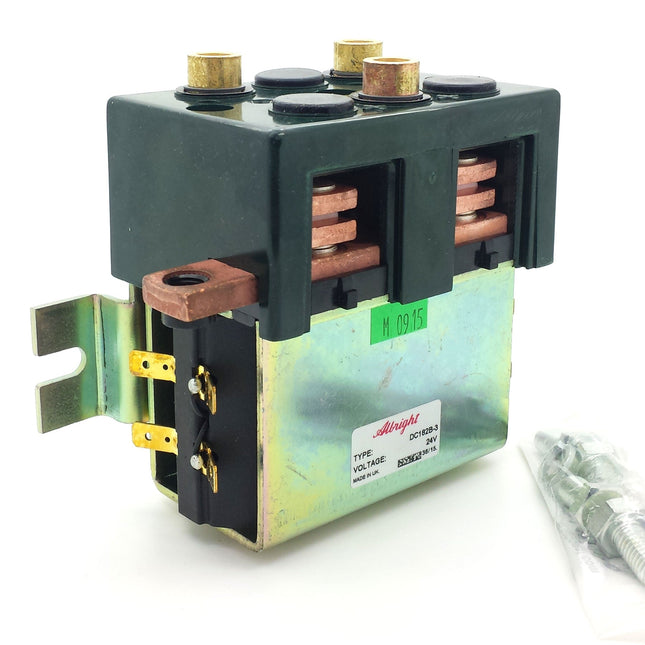

About the DC182B-3 Motor Reversing Solenoid
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182B is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182B is physically and electrically interchangeable with the SW182B reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

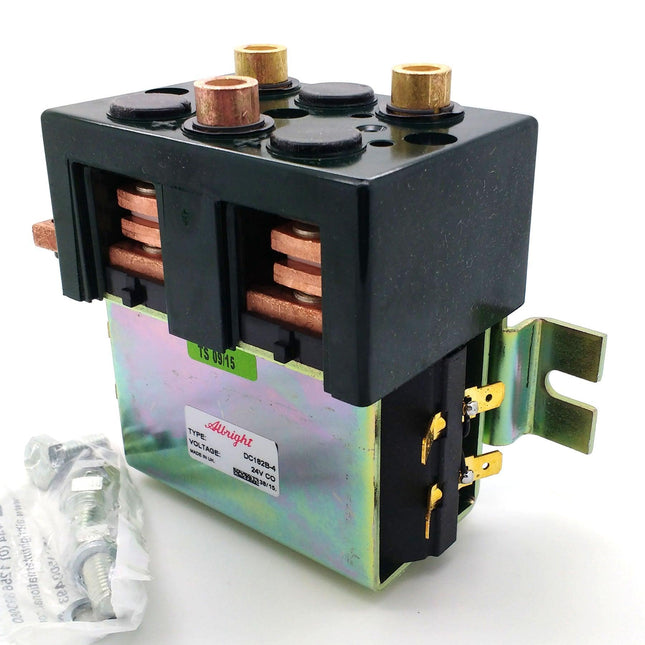

Albright DC182B-4 150A 24V DC CO Contactor with Magnetic Blowouts
The DC182B-4 contactors, designed for continuous energization (CO), come equipped with magnetic blowouts, as signified by the 'B' suffix in their designation. These magnetic blowouts are critical for the swift interruption of high currents, effectively minimizing arcing duration. The inclusion of blowouts introduces polarity sensitivity to the device, necessitating careful observation of the positive markings on the contactor's top cover during installation.
Detailed Insights on the DC182B-4 Motor Reversing Solenoid
Tailored for continuous operation, the DC182B-4 contactors excel in vehicle drive functions, featuring make and break actions that are slower compared to those of intermittent solenoids. This design is optimized for scenarios where prolonged contact is necessary, making them an ideal choice for extended use.
Boasting a monoblock construction, the DC182B-4 presents a sleek and compact form factor that effortlessly accommodates modern electronic control systems. Although it is both physically and electrically interchangeable with the SW182B reversing contactor, installation of the DC182B-4 requires some rewiring.
The unit is equipped with M8 stud main terminals and 6.3mm spade coil connections, ensuring compatibility and ease of installation. The integral bracket, integrated into the coil housing case, supports both horizontal and vertical mounting options. When mounted vertically, it is important to position the M8 contact studs upwards to maintain proper orientation.

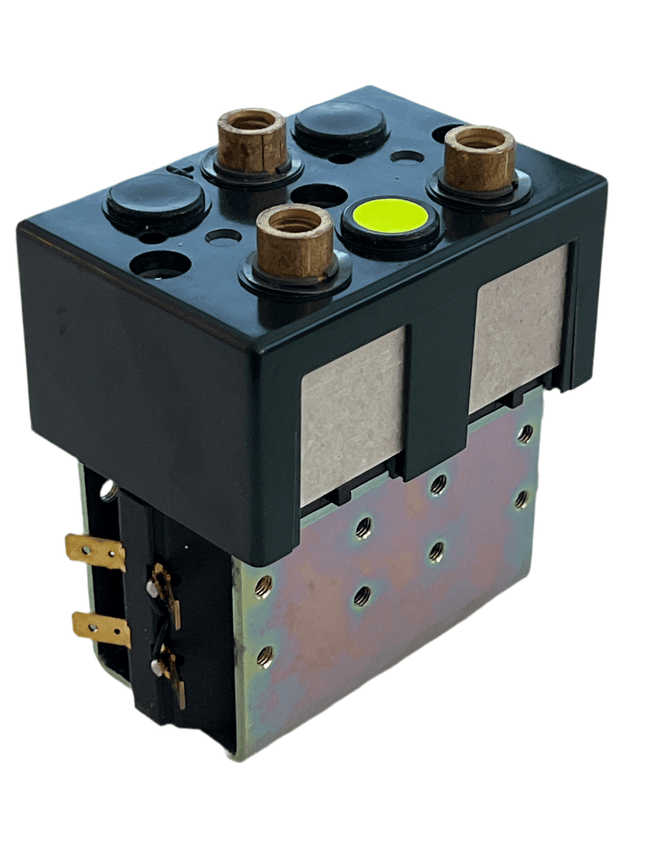

The Albright DC182B-548T is a high-quality, 48V intermittent motor reversing contactor. With a 150A rating, this monoblock contactor ensures reliable and efficient operation for your DC motor. Perfect for industrial and commercial applications, this contactor is a must-have for any motor control system.

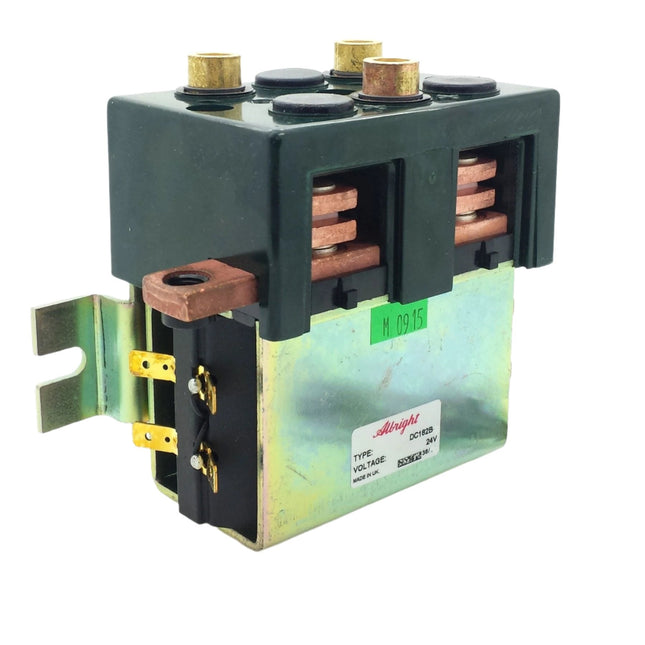

About the DC182B-691L Motor Reversing Solenoid
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using brackets available separately via the M5 mounting holes - 16 off, 8 per side), mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

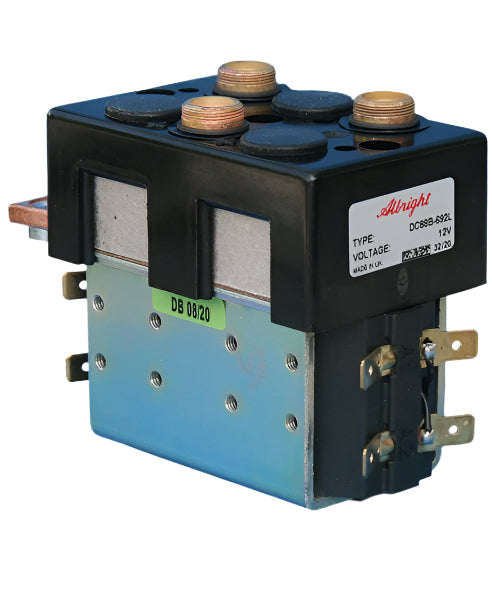

About the DC182B-692L Motor Reversing Solenoid
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using brackets available separately via the M5 mounting holes - 16 off, 8 per side), mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
