Briechle Elektronik Semi-Volta ABS Converter ABS 24-12
Special converter for the supply of a 12V anti-lock system out of 12V or 24V. Input and output cables are cast solid, open-end. ▪ IN: 12V ... 24V / OUT: 12V▪ Input: open cable end▪ Output: open cable end Weight: 0.8 kg input voltage 24V and 12V compact size by high efficiency in the power line simple mounting by inserting into cable line (5-pole cable) Input voltage: 9 ... 33V DC both lines Output voltage: 8,5 ... 12V +-5% Output current line (term. 30): 0 ... 6A (10A /20% on time cycle) Output current line (term. 15): 300mA Connection input: open cable end Connection output: open cable end Cable length input: app. 450mm Cable length output: app. 600mm Efficiency: app. 90% at 28V and nominal load, app. 96 ... 85% on term. 15, app. 92 ... 38% on term. 30 Electrical protection: Overload protection Mechanical protection: entirely sealed Dimensions: 170 x 70 x 25mm without cable outlet Mass: app. 800g
€271,00
-
Briechle Elektronik Step Up Converter Double Volt 5P W 12-24-5P
Step-up voltage converter with medium power from 12V until 24V (wide range) to 24V car line. For the simultaneous supply of permanent positive and ignition positive. The total current can be shared in any relation between both outputs.▪ IN: 12V ... 24V / OUT: 24V▪ Connection: 5-pol plug▪ 5A Permanent positive and ignition positive Weight: 0.022 kg Converts the input voltage of 12V until 24V (wide range) to 26V constant Converts permanent positive (clmp 30) and switched positive (clmp 15) Active reverse polarity protection, the fuse is not blown Case and connector waterproof Overload protection by electronic fuse Very low quiescent current (self consumption) of 0.7mA only, no creeping dircharge of the battery Input voltage: 8 ... 30V DC Input current: 11A at 13,0V (18A at 8,0V) at output current 5A Output voltage: 26V DC +-5% Output current: 5A permanent, 8A peak Connection: Connector Tyco Super Seal 1.5, 5-pol, water protected IP67K Cable length: app. 100mm Current without load: 0.7mA at 12V Efficiency: app. 93% at 5A Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients, polarity Mechanical protection: entirely sealed Dimensions: 70 x 65 x 25mm Mass: app. 220g Technical principle: ignition positive (clmp 15) switches on the second output
€146,00
-
Briechle Elektronik Step-Up Converter Double Volt 5S W 12-24-5S
Step-up voltage converter with medium power from 12V until 24V (wide range) to 24V car line.▪ IN: 12V ... 24V / OUT: 24V▪ Connection: 5-pol plug▪ 5A Permanent positive Weight: 0.22 kg Converts the input voltage of 12V until 24V (wide range) to 26V constant Active reverse polarity protection, the fuse is not blown Case and connector waterproof Overload protection by electronic fuse Very low quiescent current (self-consumption) of 0.7mA only, no creeping discharge of the battery Input voltage: 8 ... 30V DC Input current: 11A at 13,0V (18A at 8,0V) at output current 5A Output voltage: 26V DC +-5% Output current: 5A permanent, 8A peak Connection: Connector Tyco Super Seal 1.5, 5-pol / 3 allocated, water protected IP67K Cable length: app. 100mm Current without load: 0.7mA at 12V Efficiency: app. 93% at 5A Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients, polarity Mechanical protection: entirely sealed Dimensions: 70 x 65 x 25mm without cable outlet Mass: app. 220g
€132,00
-
Briechle Elektronik Step-up converter W 12-24-10LSCH (MPN: 10207)
Step-up converter of a higher power for 24V devices at 12V car line. Double Volt 10 Charge ▪ IN: 12V ... 24V / OUT: 28,8V ▪ Connection: open cable end Step-up converter for charging a 24V lead-accumulator out of a 12V car line.The charging procedure is controlled by the ignition switch. converts input voltage from 12V to 28,8V regulated electronical protection against reverse polarity and missconnection without short circuit suitable for 24V voltage boosting (wide range input) Weight: 0.92 kg Technical data: Input voltage 9 ... 33V DC Input current max. 35A (12V) Control input on at 10 ... 33V Output voltage 28,8V DC + - 5% Output current 0 ... 10A (15A) Connection open cable end Cable length about 450mm Current without load <4mA (12V) Efficiency app. 92% Temperature range -40°C ... +75°C Electrical protection overtemperature, overcurrent, reverse polarity Mechanical protection entirely sealed (IP69K) Dimensions 200 x 70 x 25mm without cable outlet Mass app. 770g
€419,00 €370,00
-
Briechle Elektronik Trailer Converter 15 ABW 24-12A7
Converter to supply a 12V trailer from a 24V vehicle system as short adapter 15 pin to 13 pin, including reversing lamp. Incandescent lamps and suitable RMS compatible LEDs can be operated. Please ask the LED lamp manufacturer for RMS compatibility. For further details please see our handout “LED lamps in RMS operation”.▪ IN: 24V / OUT: 12V▪ Input: 24V plug with 15 contacts▪ Output: 12V socket with 13 contactsWeight: 0.5 kg simply plug in between fulfills the law requirement for fail-safe by 100% separated lines compatible with lamp control circuits correct function of ABS-info-module is guaranteed internal short circuit and overload protection, one each line power reserve in case of additional lamps at the trailer European approval E1 10R-046957 Input voltage: 24V DC nominal (18...33V) Output voltage: RMS power equation for 12V (9 ... 15.5V) Output power: 7 x 70W total max 250W lamp power Connection input: Plug with clamp 15 contacts 24V ISO'4091 Connection output: flanged socket with flap cover 13 contacts 12V ISO-11446 Current without load: 0mA when output is open (no current path) Efficiency: app. 97% Temperature range: -40 ... +75°C Electrical protection: over current (auto reset), over temperature (auto reset) Mechanical protection: electronic sealed Dimensions: D x L ca 75mm x 200mm with closed cover Mass: app. 500g Restrictions: the control lamp of ancient mechanical flashing units is not indicating. Use ABW 24-12-7H Attention: for bulbs and RMS - LEDs only!
€262,00
-
Briechle Elektronik Trailer Converter 15-7 ABW 24-12B6
Converter to supply a 12V trailer from a 24V vehicle system as short adapter 15 pin to 7 pin, the reversing lights are not connected. Incandescent lamps and suitable RMS compatible LEDs can be operated. Please ask the LED lamp manufacturer for RMS compatibility. For further details please see our handout “LED lamps in RMS operation”.▪ IN: 24V / OUT: 12V▪ Input: 24V plug with 15 contacts▪ Output: 12V socket with 7 contacts Weight: 0.5 kg simply plug in between fulfills the law requirement for fail-safe by 100% separated lines compatible with lamp control circuits correct function of ABS-info-module is guaranteed internal short circuit and overload protection, one each line power reserves in case of additional lamps at the trailer European approval E1 10R-046957 Input voltage: 24V DC nominal (18 ... 33V) Output voltage: RMS power equation for 12V (9 ... 15.5V) Output power: 6 x 70W total max 250W lamp power Connection input: plug with clamp 15 contacts 24V ISO'4091 Connection output: flanged socket with flap cover 7 contacts 12V DIN72577 Cable length input: _ Cable length output: _ Current without load: 0mA at the open output (no current) Efficiency: app. 97% Temperature range: -40 ... +75°C Electrical protection: overload current (self-resetting) overtemperature (self-resetting) Mechanical protection: overload current (self-resetting) overtemperature (self-resetting) Mechanical protection: electronic sealed Dimensions: D x L approx. 75mm x 200mm with closed cover Mass: app. 500g Attention: for bulbs and RMS - LEDs only!
€262,00
-
Briechle Elektronik Trailer Converter 7 ABW 24-12D6
Converter to supply a 12V trailer from a 24V vehicle system as short adapter 7 pin to 7 pin. Incandescent lamps and suitable RMS compatible LEDs can be operated. Please ask the LED lamp manufacturer for RMS compatibility. For further details please see our handout “LED lamps in RMS operation”.▪ IN: 24V / OUT: 12V▪ Input: 24V plug with 7 contacts▪ Ausgang: 12V socket with 7 contacts Weight: 0.32 kg simply plug in between fulfills the law requirement for fail-safe by 100% separated lines compatible with lamp control circuits correct function of ABS-info-module is guaranteed internal short circuit and overload protection, one each line power reserves in case of additional lamps at the trailer European approval E1 10R-046957 Input voltage: 24V DC nominal (18 ... 33V) Output voltage: RMS power equation for 12V (9 ... 15.5V) Output power: 6 x 70W total max 220W lamp power Connection input: Plug with clamp 7 contacts 24V ISO'1185 Connection output: flanged socket with flap cover 7 contacts 12V ISO'1724 Cable length input: _ Cable length output: _ Current without load: 0mA at the open output (no current) Efficiency: app. 97% Temperature range: -40 ... +75°C Electrical protection: overcurrent (auto reset), over temperature (auto reset) Mechanical protection: overload current (self-resetting) overtemperature (self-resetting) Mechanical protection: electronic sealed Dimensions: D x L ca 75mm x 190mm with closed cover Mass: app. 320g Restrictions: the control lamp of ancient mechanical flashing units is not indicating. Use ABW 24-12-6H Attention: for bulbs and RMS - LEDs only!
€158,00
-

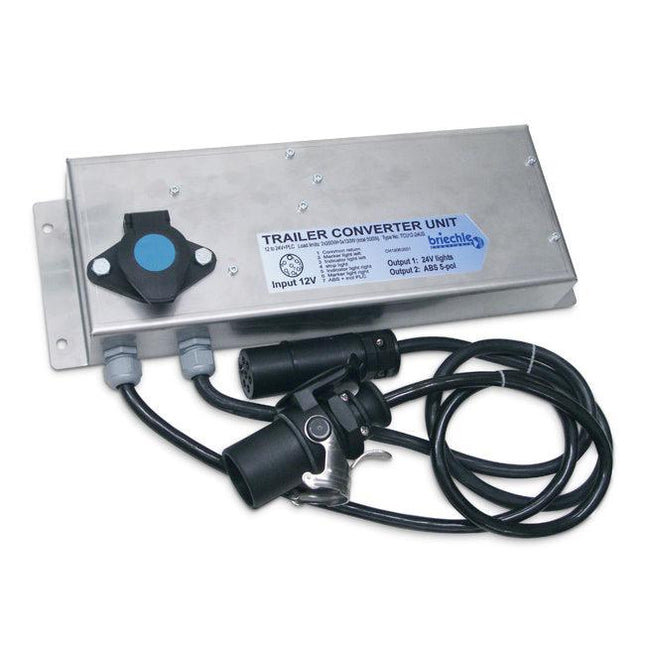

Briechle Elektronik TRAILER CONVERTER UNIT TCU 12-24US
Briechle - TRAILER CONVERTER UNIT TCU 12-24US Complete trailer converter system to operate a European trailer with 24Volt at an American or Canadian towing vehicle.PLC signal conversion for the failure status from the trailer to the truck is implemented. ▪ IN: 12V / OUT: 24V▪ Input: 12V socket▪ Output 1: 24V plug▪ Input 2: 24V ABS/EBS plug Weight: 6.35 kg, actual delivery pack dimension 50x31x31 cm contains all components for "plug and run" input socket 7 pin "N" Standard is allocated according to NATO-coiled cable for US-Canada trucks output 1: 7pin "N" 24V for lights output 2: 7 pin ABS / EBS connector ISO 7638 assembled with our converters ASV 12-24-7H and ABS12-24 stainless steel module rack Input\n voltage: 9 ... 18V DC Output voltage: 27V +-5% Output current on ABS/EBS plug: 10A / max 15A modulator, 0,5 / max 1A control unit Output power: for lights: 2x260W + 3x130W, maximum 500W nominal Connection input: socket "7N" ISO'1185, NATO-allocation Connection output: socket "7N" ISO'1185, NATO-allocation Connection output 2: ABS / EBS plug 24V ISO'7638 Cable length output: app. 1000mm per output cable Mechanical protection: each component entirely sealed Dimensions: 440 x 144 x 65mm rack without cable outlet and socket Mass: app. 6370g
€2.144,92 €1.887,53
-
Briechle Elektronik Trailer Converter Unit TCU 12-24Us
Complete trailer converter system to operate a European trailer with 24Volt at an American or Canadian towing vehicle. PLC signal conversion for the failure status from the trailer to the truck is implemented.▪ IN: 12V / OUT: 24V▪ Input: 12V socket▪ Output 1: 24V plug▪ Input 2: 24V ABS/EBS plug Weight: 6.35 kg contains all components for "plug and run" input socket 7 pin "N" Standard is allocated according to NATO-coiled cable for US-Canada trucks output 1: 7pin "N" 24V for lights output 2: 7 pin ABS / EBS connector ISO 7638 assembled with our converters ASV 12-24-7H and ABS12-24 stainless steel module rack Input voltage: 9 ... 18V DC Output voltage: 27V +-5% Output current on ABS/EBS plug: 10A / max 15A modulator, 0,5 / max 1A control unit Output power: for lights: 2x260W + 3x130W, maximum 500W nominal Connection input: socket "7N" ISO'1185, NATO-allocation Connection output: socket "7N" ISO'1185, NATO-allocation Connection output 2: ABS / EBS plug 24V ISO'7638 Cable length output: app. 1000mm per output cable Mechanical protection: each component entirely sealed Dimensions: 440 x 144 x 65mm rack without cable outlet and socket Mass: app. 6370g
€1.887,53
-
Briechle Elektronik Trailer Converter Unit TCU-FT
Complete Trailer unit for farming tractors 12V to 24V for lights and ABS.At the input are plugs and at the outlet are sockets. Park sockets areavailable when the converter is not in use to take the free plugs. Theunit is mounted in a stainless steel metal rack. The converters insideare ABS 12-24 and ASV 12-24-6H.▪ IN: 12V / OUT: 24V▪ Input: 12V lights + 12V ABS(EBS)▪ Output: 24V lights + 24V ABS(EBS)▪ 7-contacts and 15-contacts lights socket 24V▪ Park sockets Includes all components for "plug and go" Input 1 with a 7-contact plug for the lights Input 2 with an ABS/EBS standard plug, 5 contacts connected Output 1 with a 7 contact 24V "7N" socket and a 15 contact 24V lights socket Output 2 with a 7 contact 24V ABS/EBS socket, 5 contacts connected Park sockets for both plugs when not in use The stainless steel metal rack is removable without detaching the screws Input voltage: 12V nominal Output voltage: 24V nominal Output power 1: 6 x130W, maximum 500W nominal Output power 2: ABS/EBS maximum 2 units Connection input 1: Lights, Plug 7 contacts ISO'1724 Connection input 2: ABS, Stecker ISO'7638 Connection output 1: Lights, Socket 24V 7 contacts ISO'1724 and 15 contacts ISO'4091 Connection output 2: ABS/EBS, 24V Socket 5 contacts ISO'7638 Cable length input: Input1 / Input 2: about 700mm each Mechanical protection: each component entirely sealed Dimensions: 412 x 196 x 100mm Metal body sockets excluded Mass: 6,4 kg
€1.200,00
-
Briechle Elektronik Trailer Converter Unit TCU-FT-DD
Complete Trailer unit 12V to 24V for agricultural and forestry vehicles,for lights and ABS. At the input and the output sockets are mounted.The connection to the towing vehicle and the trailer is made by intermediate cables. The converters inside are ABS 12-24 and ASV 12-24-6H and are mounted in a stainless steel metal rack together with the sockets.▪ IN: 12V / OUT: 24V▪ Input: 12V lights + 12V ABS(EBS)▪ Output: 24V lights + 24V ABS(EBS)▪ 7-contacts and 15-contacts lights socket 24V Applicable at the towing vehicle or at the trailer Input 1 with a 7-contact plug for the lights Input 2 with an ABS/EBS standard socket, 5 contacts connected Output 1 with a 15 contact 24V lights socket Output 2 with a 7 contact 24V ABS/EBS socket, 5 contacts connected For the lights output a slim adapter from 15 contacts to 7 contacts is available as an option The entire converter unit is removable without detaching the screws Connection cables are available separately Input voltage: 12V nominal Output voltage: 24V nominal Output power 1: Lamps/LEDs: 6 x130W, total max. 500W nominal Output power 2: ABS/EBS maximum 2 units Connection input 1: Lights, socket 12V, 7 contacts ISO'1724 Connection input 2: ABS, Plug 12V ISO'7638, 5 contacts Connection output 1: Lights, Socket 24V, 15 contacts ISO'4091 Connection output 2: ABS/EBS, 24V Socket 5 contacts ISO'7638 Cable length input: _ Mechanical protection: each component entirely sealed (IP69K) Dimensions: 440 x 146 x 100mm Metal body sockets excluded Mass: 5.3 kg
€956,00
-
Briechle Elektronik Trailer Converter Unite TCU 12-24US
Complete trailer converter system to operate a European trailer with 24Volt at an American or Canadian towing vehicle.PLC signal conversion for the failure status from the trailer to the truck is implemented. Trailer Converter Unit12V to 24V with PLCISO 7638 and 7N plug ▪ IN: 12V / OUT: 24V▪ Input: 12V socket▪ Output 1: 24V plug▪ Input 2: 24V ABS/EBS plug Weight: 6.35 kg contains all components for “plug and run” input socket 7 pin “N” Standard is allocated according to NATO-coiled cable for US-Canada trucks output 1: 7pin “N” 24V for lights output 2: 7 pin ABS / EBS connector ISO 7638 assembled with our converters ASV 12-24-7Hand ABS12-24 stainless steel module rack
€1.887,53
-
Briechle Elektronik Trailer Light Converter ABW 24-12-6H
Converter to supply the lights of 12V trailers at a 24V car line. Incandescent lamps and suitable RMS compatible LEDs can be operated. Please ask the LED lamp manufacturer for RMS compatibility. For further details please see our handout “LED lamps in RMS operation”.▪ IN: 24V / OUT: 12V▪ Input: open cable end▪ Output: open cable end Weight: 0.96 kg quick and simple to connect: - at rear lamps of car-like equipment - parallel to 24V socket - instead of 24V socket the function of C2-indicator-lamps of all flasher units is guaranteed works well with lamp-control-units correct function of ABS-info-module is guaranteed solid casting - waterproof and shockproof internal short circuit and overload protection power reserves in case of additional lamps at the trailer Input voltage: 24V DC nominal (18 ... 33V) Output voltage: RMS power equation for 12V (9 ... 15.5V) Output power: 2 x 21W + 4 x 60W Connection input: open cable end Connection output: open cable end Cable length input: app. 100cm Cable length output: app. 120cm Current without load: 0mA with open output (no current) Efficiency: flasher unit c. 90%, other units c. 95% Temperature range: -40 ... +75°C Electrical protection: overload current (self-resetting) overtemperature (self-resetting) Mechanical protection: entirely sealed Dimensions: 200 x 70 x 25mm without cable outlet Mass: app. 950g Attention: for bulbs and RMS - LEDs only!
€211,00
-
Briechle Elektronik Trailer Light Converter ABW 24-12-7HPS
Converter to supply the lights of 12V trailers at 24V car line, including reversing lamp. Incandescent lamps and suitable RMS compatible LEDs can be operated. Please ask the LED lamp manufacturer for RMS compatibility. For further details please see our handout “LED lamps in RMS operation”.Input 15 contact plug, output 13 contact socket.▪ IN: 24V / OUT: 12V▪ Input: 24V plug▪ Output: 12V socket▪ with reversing lamp Weight: 0.96 kg for suitable lamp control device (LF-PWM suitable) entirely sealed - waterproof and vibration resistant internal short circuit and overload protection power reserves in case of additional lamps at the trailer ready for mounting with input plug and socket Input voltage: 24V DC nominal (18 ... 33V) Output voltage: RMS power equation for 12V (9 ... 15.5V) Output power: 2 x 21W + 5 x 60W Connection input: sheathed cable, plug 24V/15 contacts ISO'4091 Connection output: corrugated tube, socket 12V/13 contacts ISO'11446 Cable length input: app. 1300mm Cable length output: app. 1300mm Current without load: 0mA at the open output (no current) Efficiency: flasher unit c. 90%, other units c. 95% Temperature range: -40 ... +75°C Mechanical protection: overload current (self-resetting) overtemperature (self-resetting) Mechanical protection: entirely sealed Dimensions: 200 x 70 x 25mm without cable outlet Mass: about 1,640g Attention: for bulbs and RMS - LEDs only!
€329,00
-
Briechle Elektronik Trailer Light Converter ABW 24-12-7HPS13
Converter to supply the lights of 12V trailers at 24V car line, including reversing lamp. Incandescent lamps and suitable RMS compatible LEDs can be operated. Please ask the LED lamp manufacturer for RMS compatibility. For further details please see our handout “LED lamps in RMS operation”.Input 15 contact plug, output 13 contact socket.▪ IN: 24V / OUT: 12V▪ Input: 24V plug▪ Output: 12V socket▪ with reversing lamp Weight: 0.96 kg for suitable lamp control device (LF-PWM suitable) entirely sealed - waterproof and vibration resistant internal short circuit and overload protection power reserves in case of additional lamps at the trailer ready for mounting with input plug and socket Input voltage: 24V DC nominal (18 ... 33V) Output voltage: RMS power equation for 12V (9 ... 15.5V) Output power: 2 x 21W + 5 x 60W Connection input: sheathed cable, plug 24V/15 contacts ISO'4091 Connection output: corrugated tube, socket 12V/13 contacts ISO'11446 Cable length input: app. 1300mm Cable length output: app. 1300mm Current without load: 0mA at the open output (no current) Efficiency: flasher unit c. 90%, other units c. 95% Temperature range: -40 ... +75°C Mechanical protection: overload current (self-resetting) overtemperature (self-resetting) Mechanical protection: entirely sealed Dimensions: 200 x 70 x 25mm without cable outlet Mass: about 1,640g Attention: for bulbs and RMS - LEDs only!
€329,00
-
Briechle Elektronik Trailer Voltage Doubler ASV 12-24-6H
Converter for the supply of a 24V trailer from a 12V or a 24V vehicle line, high-performance, also for LEDs. For Mercedes Sprinter and Volkswagen Crafter the adaption module EC-ASV1 is required. Important: In the case of high loads and long cables on the input side the current consumption could increase enormously determined by the system. Please contact us, we provide planning aid and adaption solutions. ▪ IN: 12V ... 24V / OUT: 24V▪ Input: open cable end▪ Output: open cable end Weight: 1.5 kg extremely high performance in a small design also supplies LEDs quick and simple to connect: - at rear lamps of car-like equipment - parallel to 12V-socket - instead of 12V-socket the function of the C2-indicator-lamps of the flasher unit remains active works well with lamp-control-units correct function of ABS-info-module solid casting - waterproof and shockproof wide range input 12V and 24V Input voltage: 12V...24V DC nominal (8 ... 30V) Output voltage: 26V + -5% Output power: 6 x 130W, total max. 450W Connection input: open cable end Connection output: open cable end Cable length input: app. 100cm Cable length output: app. 120cm Current without load: 0,5mA at open output Efficiency: about 92% Temperature range: -40 ... +75°C (load derating above 50° about 10W/°C Electrical protection: overload current (self-resetting) overtemperature (self-resetting) Mechanical protection: entirely sealed Dimensions: 280 x 75 x 25mm without cable outlet Mass: about 1,500g Attention: for bulbs and LEDs only!
€435,00
-
Briechle Elektronik Voltage Converter Semi Volt 10 Plus W 24-12-10P
High-end voltage converter with medium power for 12V devices at 24V car line. For the simultaneous supply of permanent plus and ignition plus.▪ IN: 24V / OUT: 12V▪ Connection: 5-pol plug▪ 10A Permanent positive and ignition positive Weight: 0.385 kg provides permanent plus (term. 30) and ignition plus (term. 15) up to the maximum load concept of high development standard: - real voltage division, discharge protection of 12V device is effective - significant low self current consumption of 0,7 mA - very high efficiency of about 94% overload capacity up to 15A for about 5 min. small dimensions compact plug (AMP Mate Lock) 5kW-peak-safety-diode to prevent overvoltage from car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 10A permanent, 15A for about 5 min. Connection: 5-poles connector, round contacts (AMP Mate Lock) Current without load: 0,7mA at 24V Efficiency: app. 94% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 129 x 70 x 25mm incl. Plug Mass: app. 385g Technical principle: ignition plus (term 15) connects the second output
€119,00
-
Briechle Elektronik Voltage Converter Semi Volt 10S W 24-12-10S
High-end voltage converter with medium power for 12V devices at 24V car line.▪ IN: 24V / OUT: 12V▪ Connection: 3-pol plug▪ 10A Weight: 0.385 kg provides permanent plus (term. 30) or ignition plus (term. 15) up to the maximum load concept of high development standard: - real voltage division, discharge protection of 12V device is effective -significant low self current consumption of 0,7 mA - very high efficiency of about 94% overload capacity up to 15A for about 5 min. small dimensions compact plug (AMP Mate Lock) 5kW-peak-safety-diode to prevent overvoltage from car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 10A permanent, 15A for about 5 min. Connection: 3-poles connector, round contacts (AMP Mate Lock) Current without load: 0,7mA at 24V Efficiency: app. 94% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 129 x 70 x 25mm incl. Plug Mass: app. 385g Technical principle: ignition plus (term 15) connects the second output
€102,00
-
Briechle Elektronik Voltage Converter Semi Volt 10Sl W 24-12-10SL
High-end voltage converter with medium power for 12V devices at 24V car line.▪ IN: 24V / OUT: 12V▪ Connection: cable with open ends▪ 10A Weight: 0.385 kg provides permanent plus (term. 30) or ignition plus (term. 15) up to the maximum load concept of high development standard: - real voltage division, discharge protection of 12V device is effective -significant low self current consumption of 0,7 mA - very high efficiency of about 94% overload capacity up to 15A for about 5 min. small dimensions connected with 3 pin sheathed cable 5kW-peak-safety-diode to prevent overvoltage from car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 10A permanent, 15A for about 5 min. Connection: cable with open ends Cable length: about 1000mm 3x1,5mm² Current without load: 0,7mA at 24V Efficiency: app. 94% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed (IP69K) Dimensions: 120 x 70 x 25mm Mass: app. 385g
€111,00
-
Briechle Elektronik Voltage Converter Semi Volt 16 Plus W 24-12-16P
High-end voltage converter of a higher power for 12V consumers at a 24V car line. For the simultaneous supply of permanent plus line and ignition plus line.▪ IN: 24V / OUT: 12V▪ Anschluss: 5Pol Stecker▪ 16A Permanent positive and ignition positive Weight: 0.71 kg provides permanent plus (term. 30) and ignition plus (term. 15) up to the maximum load concept of high development standard: - real voltage division, discharge protection of 12V device is effective - significant low self current consumption of 0,7mA - very high efficiency of about 92% overload capacity up to 24A for about 5 min. small dimensions high-quality high-power-plug, waterproof, the counterpart is included 5kW-peak-protection-diode to prevent overvoltage coming from the car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 16A permanent, 24A for about 5 min. Connection: 5-pole plug "Delphi Metri-Pack Series 150 Sealed" IP67K Cable length: ca. 70mm Current without load: 0,7mA at 24V Efficiency: app. 92% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 200 x 70 x 25mm without calbe outlet Mass: app. 710g Technical principle: ignition plus (term. 15) switches 2nd outlet
€184,00
-
Briechle Elektronik Voltage Converter Semi Volt 16S W 24-12-16S
High-end voltage converter of a higher power for 12V consumers at 24V car line.▪ IN: 24V / OUT: 12V▪ Connection: 5-pol plug▪ 16A Weight: 0.71 kg provides permanent plus (term.30) or ignition plus (term.15) concept of high development standard: - real voltage division, discharge protection of 12V device is effective - significant low self current consumption of 0,7mA - very high efficiency of about 92% overload capacity up to 24A for about 5 min. small dimensions high-quality high-power-plug, waterproof, the counterpart is included 5kW-peak-protection-diode to prevent overvoltage coming from the car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 16A permanent, 24A for about 5 min. Connection: 3 contacts in a 5-pole plug "Delphi Metri-Pack Series 150 Sealed" IP67K Cable length: _ Current without load: 0,7mA at 24V Efficiency: app. 92% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 200 x 70 x 25mm without cable outlet Mass: app. 710g
€167,00
-
Briechle Elektronik Voltage Converter Semi Volt 26 Plus W 24-12-26P
High-end voltage converter of a higher power for 12V consumers at a 24V car line. ▪ IN: 24V / OUT: 12V▪ Connection: 5-pol plug▪ 26A Permanent positive and ignition positive Weight: 0.96 kg provides permanent plus (term.30) or ignition plus (term.15) concept of high development standard: - real voltage division, discharge protection of 12V device is effective - significant low self current consumption of 0,7mA - very high efficiency of about 92% overload capacity up to 24A for about 5 min. small dimensions high-quality high-power-plug, waterproof, the counterpart is included 5kW-peak-protection-diode to prevent overvoltage coming from the car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 26A permanent, 35A for about 5 min. Connection: 5-pole plug "Anderson Powerpole Modular" Cable length: app. 170mm Current without load: 0,7mA at 24V Efficiency: app. 92% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 200 x 70 x 40mm without cable outlet Mass: app. 960g Technical principle: ignition plus (term. 15) switches 2nd outlet
€242,00
-
Briechle Elektronik Voltage Converter Semi Volt 26S W 24-12-26S
High-end voltage converter of a higher power for 12V consumers at a 24V car line.▪ IN: 24V / OUT: 12V▪ Connection: 3-pol plug▪ 26A Weight: 0.93 kg concept of high development standard: - real voltage division, discharge protection of 12V device is effective - significant low self current consumption of 0,7mA - very high efficiency of about 94% overload capacity up to 35A for about 5 min. small dimensions high-power-plug of high quality 5kW-peak-safety-diode to prevent overvoltage from car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 26A permanent, 35A for about 5 min. Connection: 3-pole plug "Anderson Powerpole Modular" Cable length: _ Current without load: 0,7mA at 24V Efficiency: app. 92% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 200 x 70 x 40mm without cable outlet Mass: app. 930g
€222,00
-
Briechle Elektronik Voltage Converter Semi Volt 4 Plus W 24-12-4P
High-end voltage converter with low power for 12V devices at 24V car line. For the simultaneous supply of permanent plus and ignition plus. An ideal solution for point of device supply like telematics and GPS wireless alarm systems.▪ IN: 24V / OUT: 12V▪ Connection: 5-pol plug▪ 4A Permanent positive and ignition positive Weight: 0.19 kg concept of high development standard: -real voltage division, discharge protection of 12V device is effective - significant low self current consumption of 0,7mA - very high efficiency of about 94% overload capacity up to 6A for about 5 min. small dimensions compact plug, sealing option 5kW-peak-safety-diode to prevent overvoltage from car line electronic protection against reverse polarity without the need of a fuse Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 4A permanent, 6A for about 5 min. Connection: 5-poles connector, Mate Lock with sealing option Cable length: _ Current without load: 0,7mA at 24V Efficiency: app. 94% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients, polarity Mechanical protection: entirely sealed Dimensions: 80 x 70 x 25mm incl. Plug Mass: app. 190g Technical principle: ignition plus (term 15) connects second output
€76,00
You have seen 96 out of 98 products
